China Factory EEC/EPA 800cc/1100cc 2WD or 4WD 2seats UTV/Utility ATV (TKG1100E-Y)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TUOKAI
Model Number:
TKG1100E-Y
Type:
Pedal Go Karts
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Battery UTV 7.5KW 4x4 Differential Lock Farm ATV (TKE-U7500-T1)US$ 7,300 - 7,800MOQ: 1 Unit -
NEW UTV 800cc/China TOP Quality UTV Supplier (TKU800-T1)US$ 5,950 - 6,550MOQ: 1 Unit
-
Fashionable Design Farm Boss UTV 800cc 4WD/2WD Automatic/FM&MP3 Player UTV (TKU800-T1)US$ 5,950 - 6,550MOQ: 1 Unit
-
Chinese Best Petrol Utility Vehicle 4x4 800cc EPA UTV/NEW UTV 800cc (TKU800-T1)US$ 5,950 - 6,550MOQ: 1 Unit
-
High Quality 4WD UTV 800cc Automatic Drive With EPS High-Lower Gears/cheap EPA 800cc UTV for Sale (TKU800-T2)US$ 5,950 - 6,550MOQ: 1 Unit
Brand Name
TUOKAI
Model Number
TKG1100E-Y
Type
Pedal Go Karts
Certification
Other, EEC/EPA
Engine
CHERY ENGINE
Drive Mode
Shaft Drive Transmission
Wheel Size
AT27*8-14/ AT27*11-14
Oil Tank Capacity
23L
Maximum Speed
100km/h
Displacement
1083cc
Brake Type
Hydraulic Disc Brake
Engine Capacity
801-1100cc
800cc/1100cc 2seats UTV
can make 800cc 2WD
can make 800cc 4WD
can make 11000cc 2WD drive
can make 1100cc 4WD drive
| 800cc spec: |
| Type :L3 ,12valves,DOHC |
| Engine capacity/displacement : 800cc |
| Bore × Stroke : 72mmX66.5mm |
| Compression ratio : 9.5:1 |
| Max out put power :39kw/6000rpm |
| (EEC certificate for engine:14.9KW/6000rpm) |
| Max Torque :70Nm/3500--4000N.m/r/min |
| Ignition :Electronic multipoint injection |
| Fuel type : 93#(unleaded) |
| Lubricate oil : SAE15W-40/SF |
| Transmission:4-MT with reverse |
| Maximum load : 200Kg /Double seats |
| Fuel tank :23L |
| Starting : electric, <10s |
| Climbing capacity: 20º -25º |
| Battery : 12V30Ah |
| Head Light : 12V 35W |
| Tail Light :12V 21W/5W |
| Brake Track : 7m@40km/h |
| Top speed :85KM/h (or limited as customers require) |
| Front, Rear brake : Hydraulic disc, right foot control |
| Front&Rear tire: AT27X8-14 |
| Front&Rear Suspension :Independent Dual A-Arm |
| Restraint System :Dual 4-point Harness |
| Final Drive : Shaft Drive |
| TIRE PRESSURE: F&R 250KPa |
| DIMENSIONS LxWxH: 3130x1565x1510mm |
| Wheel base : 2180mm |
| Front&rear Track : 1360mm |
| Ground Clearance : 240mm |
| Packing: |
| Carton dimensions:2950X2115X815mm |
| N.W.: 580 (EEC 550)kg |
| G.W.: 640kg |
| container loading: |
| Qty/20' GP: 4pcs Qty/40' HQ: 11pcs |
1100cc spec:
| Engine: | 1100 CC Chery Brand, L4,16 valves, Water-cooled, Simens VDO EFI ignition |
| Max power: | 50kw/6000rpm=68HP |
| Starting: | Electric,< 10s |
| Max.torque: | 70Nm/4000 N.m/rpm |
| Bore x Stroke: | 72*66.5mm |
| Max. speed: | 100KM/h |
| Brakes mode: | Hydraulic disc, foot control |
| Transmission: | 5-MT&1 Reverse for 4x4 |
| Fuel tank: | 23L |
| N.W.: | 720kg(4WD) |
| G.W. : | 895kg(4WD) |
| Product size: | 3130 x 1565 x 1510(LxWxH)mm |
| Grand clearance: | 240 mm |
| Front/rear tire: | AT27*8-14/ AT27*11-14 |
| wheel type: | Aluminum Alloy |
| Max load: | Double seats/200Kg |
| Final drive: | Shaft drive |
| Carton dimensions: | 2950*2115*895mm |
| Container Qty: | 20'FCL:4 pcs; 40’HQ:11pcs |

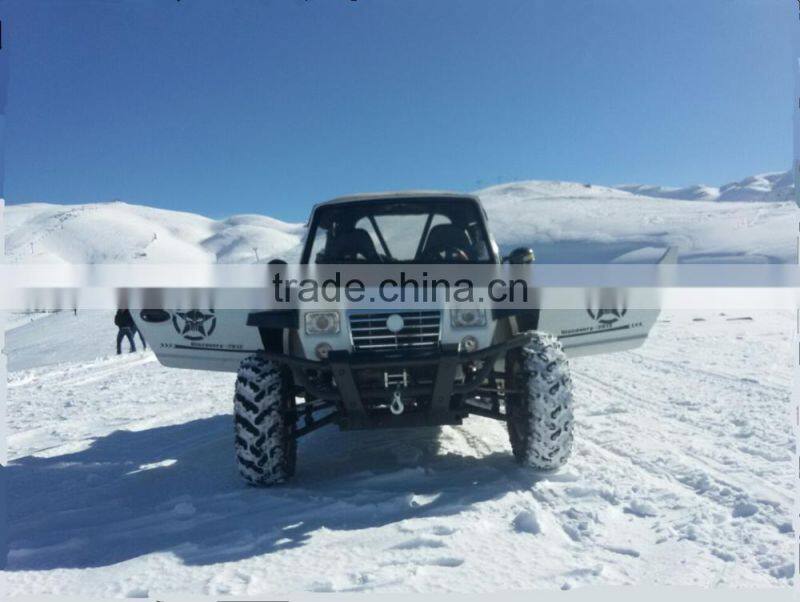

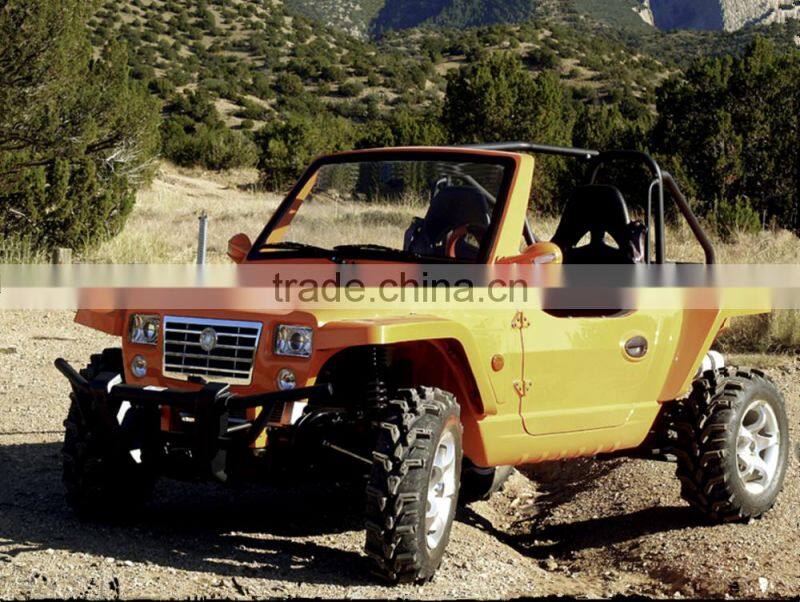

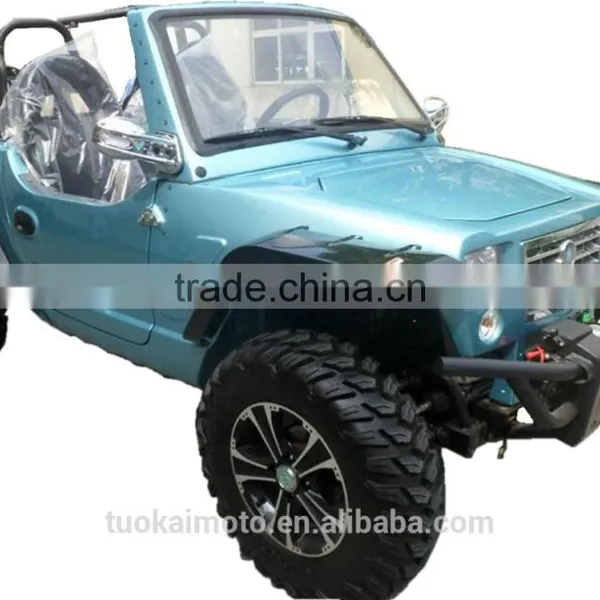

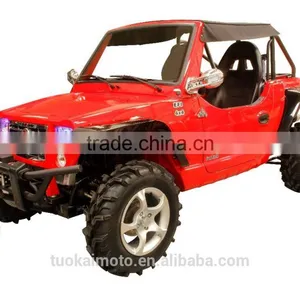

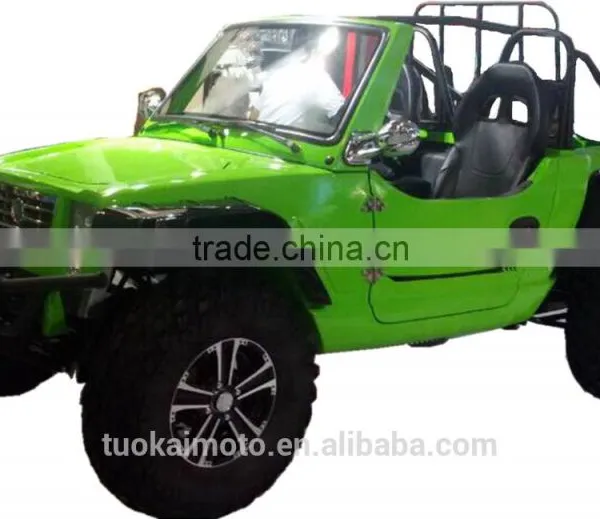

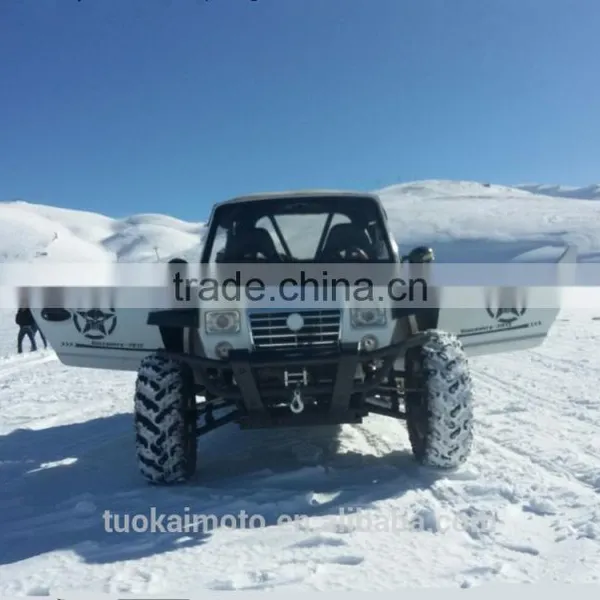

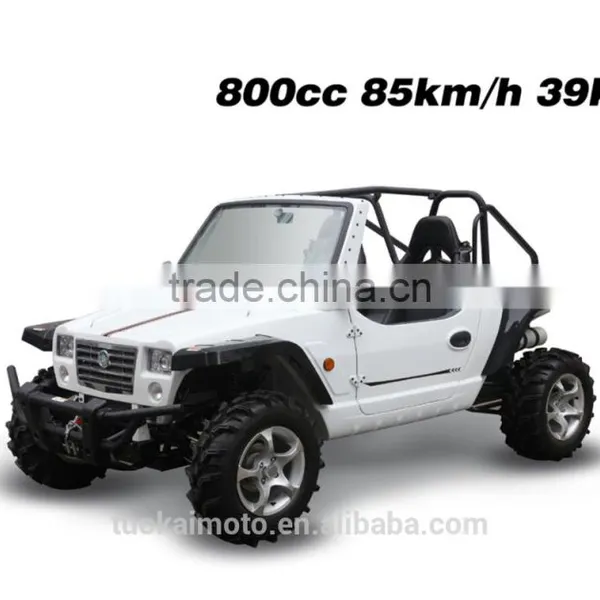

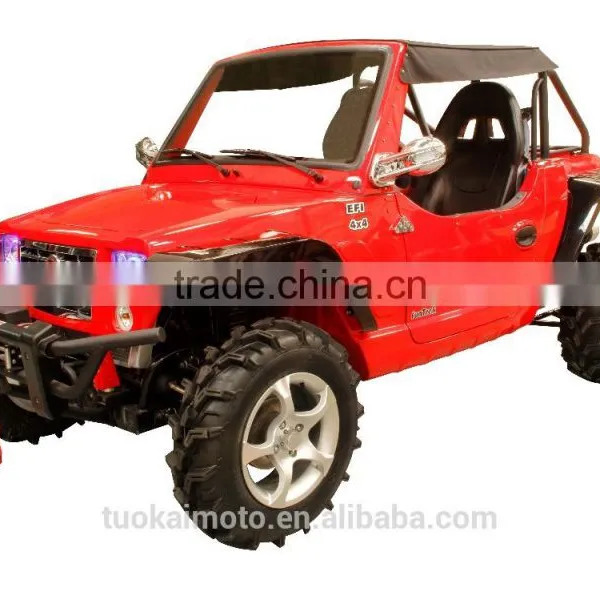

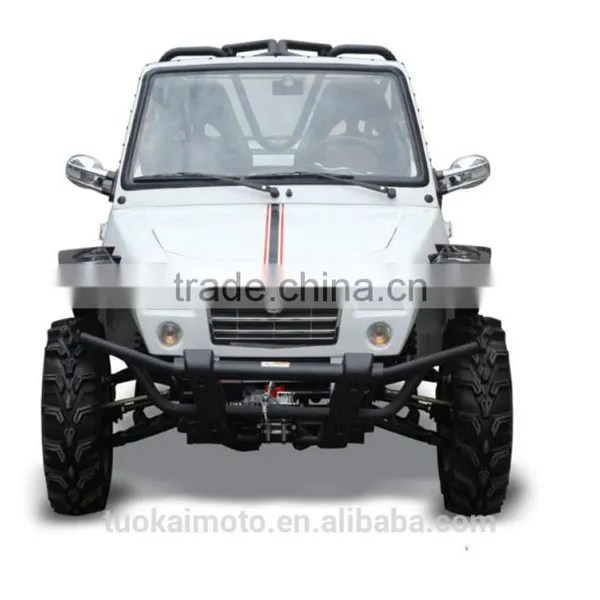

bellow pictures are 800cc state
