TOYOTA Hiace Quantum Gearbox 2TR 2KD transmission parts
Basic Info.
| Model NO.: | Match for Toyota Hilux 4X2 |
|---|---|
| Material: | Aluminum |
| Type: | Gearbox |
| Certification: | ISO, DOT |
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
Additional Info.
| Trademark: | SXCJ DONGZHOU |
|---|---|
| Packing: | Carton with Plastic Inside |
| Standard: | SGS |
| Origin: | Zhejiang |
| HS Code: | 8708409910 |
| Production Capacity: | 5000PCS/Month |
Product Description

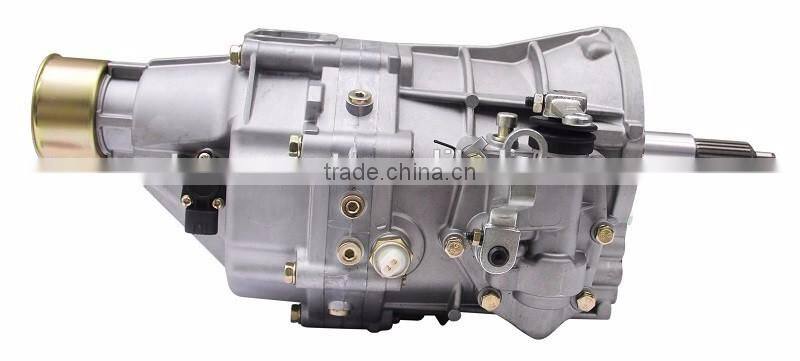

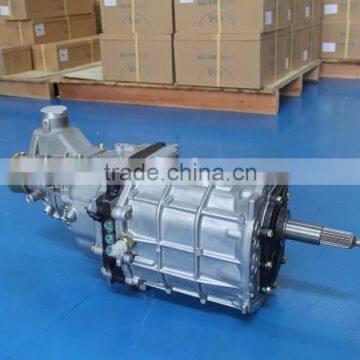

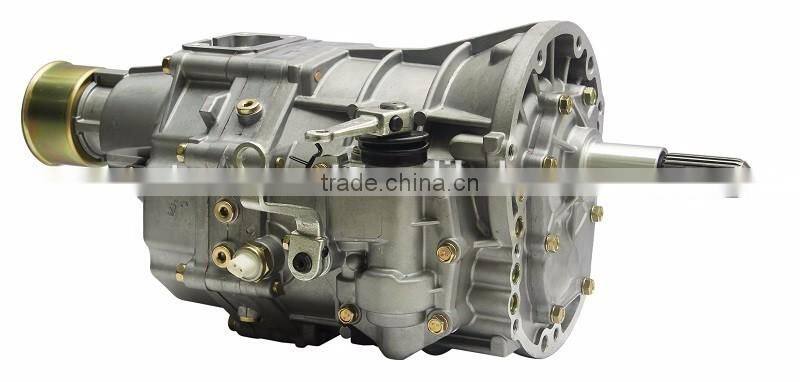

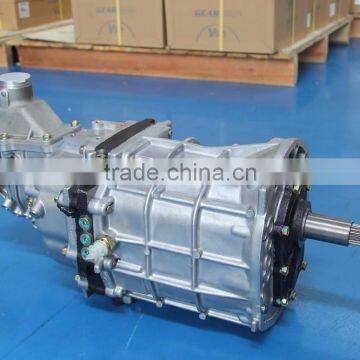

Gearbox match for Toyota Hilux 4X2 .
Specifications:
1) Manual transmission with three-shafts
2) Separated structure is designed to reduce maintenance costs and expand series products easily
3) Adopts aluminum-alloy case and cast iron intermediate plate for a lightweight structure with big torque and low noise operation
4) All gears adopted optimum designed spindly teeth and precision shot peen gear faces and roots to decrease noise of and increase carrying capacity
5) Forward gear with synchronizer with unique structural design for fifth and reverse gear which decreases synchronous moment of inertia and shift force
6) Low reverse gear is designed to decrease lock rate and the shifting gear lock is adopted to avoid reverse gear shifting in error when shifting out of fifth gear
7) With a remote control and cable ideal for use on buses, MPVs, pickups, SUVs and other light vehicles
8) Suitable for assorted engines or chassisTechnical parameters:
8.1) Max. Input power: 102kW/5, 400rpm
8.2) Max. Input torque: 200N. M /3, 000rpm
8.3) Center distance: 72mm
9) Ratio: (1st, 2ND, 3rd, 4th, 5th, reverse)
9.1) 3.70, 2.02, 1.37, 1.00, 0.80, 4.47
9.2) 3.93, 2.33, 1.45, 1.00, 0.85, 4.74
9.3) 4.45, 2.40, 1.41, 1.00, 0.80, 4.47
9.4) 4.45, 2.62, 1.52, 1.00, 0.85, 4.47
9.5) 5.01, 2.95, 1.71, 1.00, 0.9, 5.03
9.6) 3.99, 2.15, 1.33, 1.00, 0.85, 4.22 5)
10)Ratio of speedometer: 17, 18, 19, 20, 21, 22/5, 6
11)Lubrication oil type: 5W/90 (GL-4)
12) Oil capacity: 2.0L
13) Weight: 32kg9) Applicable engine: 491 (Toyota: 3Y, 4Y), 4G24 (Toyota: 2RZ, 3RZ)10) Applicable vehicle: Coach bus, MPV (Toyota: Hiace)
We can supply manual gearbox for Toyota Hiace and Hilux new model(2TR, 2KD), Isuzu and Mitsubishi, matched the engines of Toyota 3Y, 4Y, 2RZ, 3RZ, ISUZU 4JB1.2TR, 2KD
