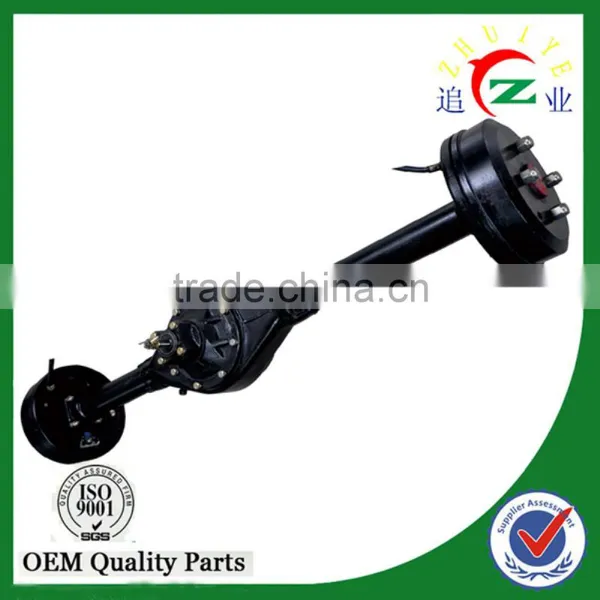

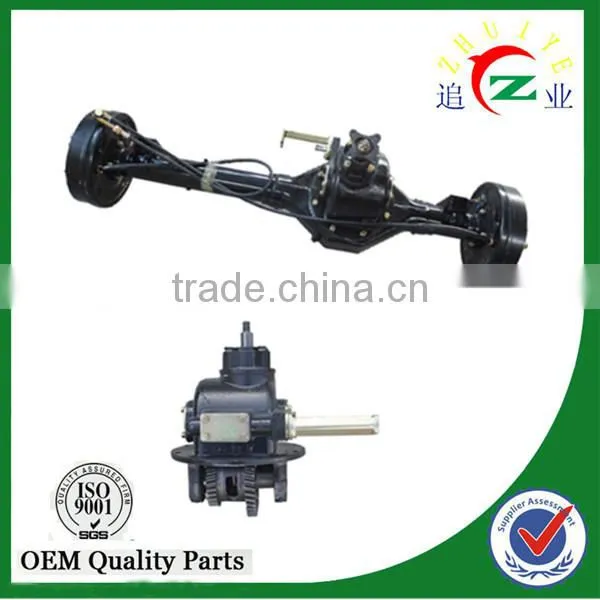

Home > Transportation > Tricycle & Parts > Electric Tricycle > Cargo Tricycle Rear Axle Differential
US$ 240 - 240
MOQ: 1 Unit
Key Specifications
Get Latest Price
Use For:
Other, Cargo, Cargo
Driving Type:
Motorized
Displacement:
> 250cc
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China ChongQing Mechanical/oil Brake Good Rear BridgeNegotiableMOQ: 50 Pieces -
Chinese Genuine Auto Rickshaw Parts Rear Bridge of Three Wheel MotorcycleNegotiableMOQ: 50 Pieces
-
China Manufacture Rear Axle With Mechanical BrakeUS$ 120 - 200MOQ: 50 Sets
-
Rear Differential Axle for Three Wheel Motorcycle and UTVUS$ 120 - 200MOQ: 50 Sets
-
Factory Manufacture High and Low Speed Rear AxleUS$ 120 - 200MOQ: 50 Sets
Use For
Other, Cargo, Cargo
Driving Type
Motorized
Body Type
Closed
Certification
Other, TS16949, ISO9001
Brand Name
Zhuiye
Place of Origin
Chongqing, China
Model Number
Rear axle
Size
Standard Size
| Cargo tricycle rear axle differential | |
| Structure | 4 screws or 5 screws |
| Bearing | 32009 tapered bearing |
| Brake | Hydraulic brake |
| Length of rear axle | 1180mm 1148mm etc. (From hub to hub) |
| Ratio | High speed2.68 low speed6.25 |
| Input spline | 20*17*4 |
| Material | 60*4(GB/T8162-1999 seamless steel tube) |
| Rim lock bolt | 5-M14*1.5 right-and-left threaded |
| Rear axle tube | 60mm/65mm/75mm |
| Speed | 2 speed |
| PCD | 5*140 |
| Offset | 120mm |
| Delivery | Within 30days |
| Load capacity | <2T |
| Wheel hub diameter | 220mm |
| Net weight | 65kg |
| Fit engine | from 50cc--400cc |
| Brand | Xianyou |
| Differential case diameter | 180mm |
| Brand | Zhuiye |
| Payment terms | T/T, L/C, D/P etc. |

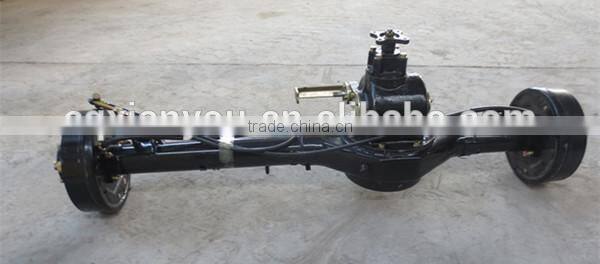

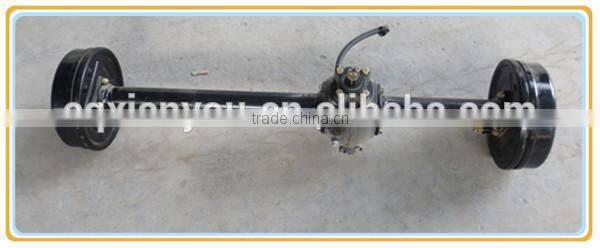

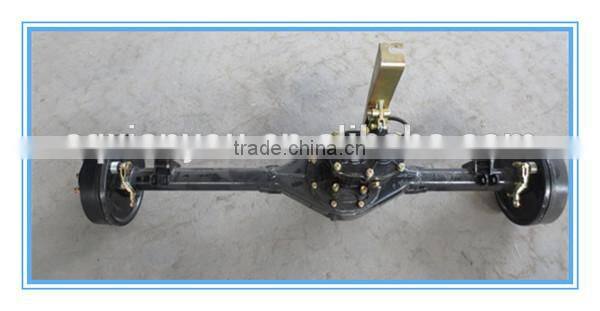

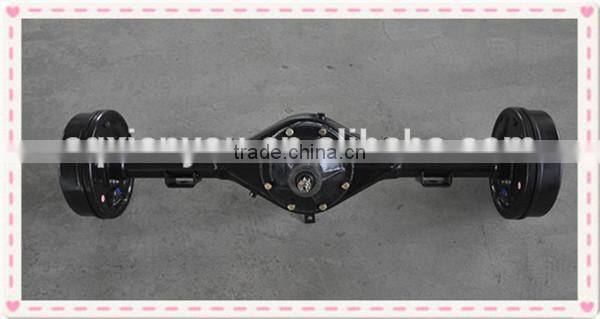

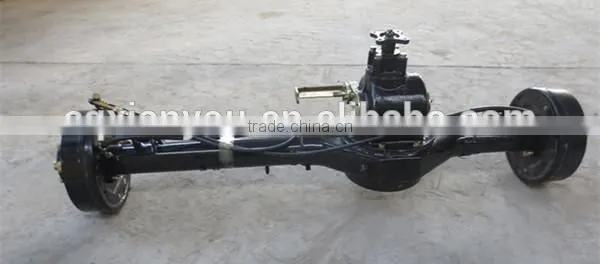

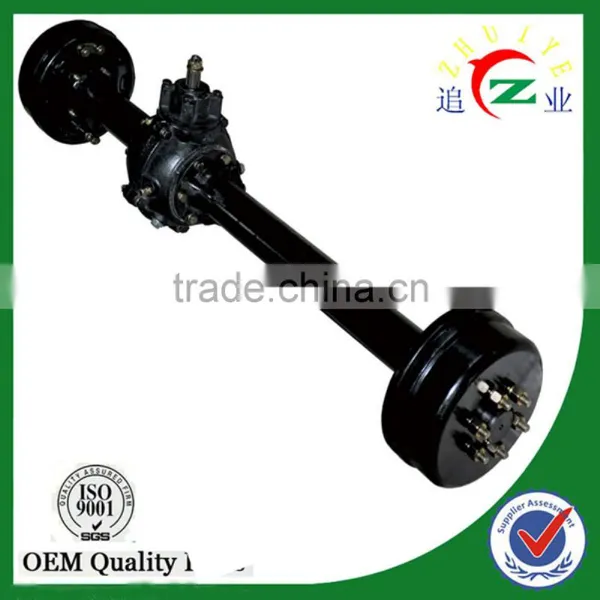

different angle of rear axle
| Tricycle Main Reducer Assembly is one which combines a main reducer with a transmission , novel and compact structure and reliable in performance. Tricycle Main Reducer Assembly can be installed to three-wheeled motorcycle vehicle, etc with the central drive axle seam allowance of 180mm . Gearbox is divided into high-speed and low-speed two speed, of which high speed can make the car run fast when under light load and low speed provides the car with enough power when under overload. Therefore, vehicle can run under any loads and road conditions. |
<1> the good bearing capacity
<2> easily installing
<3>reduce power consumption
<4> Flexible speed change and strong Traction power

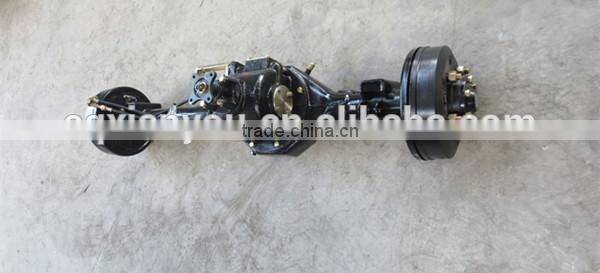

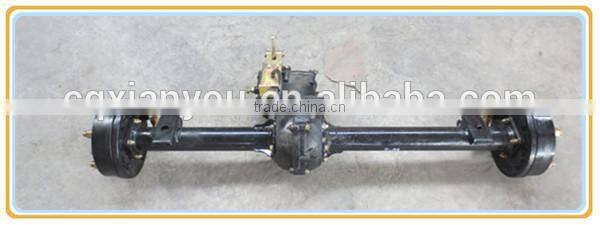

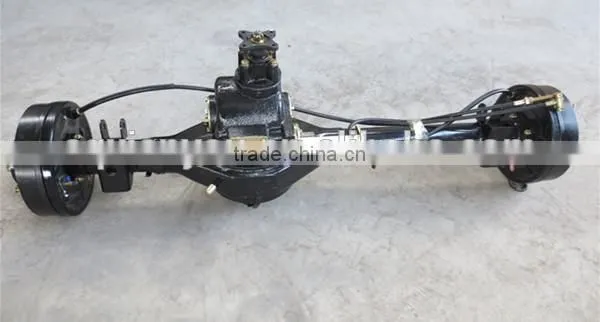

other related rear axle assembly for your reference
Packaging details
A. anti-rust paper, carton, and wooden case
B. custom packaging according to your specifications
our company
| Our Company Name | Chongqing Xianyou Technology Development Co., Ltd. |
| Established Time | founded in 1998 |
| Our Company Character | specialized in machinery research, development and manufacture , high-tech Enterprise |
| Our Factory Product | all kinds of gears, gear box, rear axle for tricycle |
| Our Award | in 2002-the gold medal of China quality “Wan Li Xing” |
| in 2009-obtained the national high and new technology enterprise | |
| certificates issued by ministry of science and technology | |
| in 2008-four product standards and Chongqing key new product and excellent key new product | |
| certificate by Chongqing two different authority Official institutions | |
| Patents | 18 national patents |
| Hardware Facilities | We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing. Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment |
| Production capacity | reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets. |
our factory
our workshop
our certification
