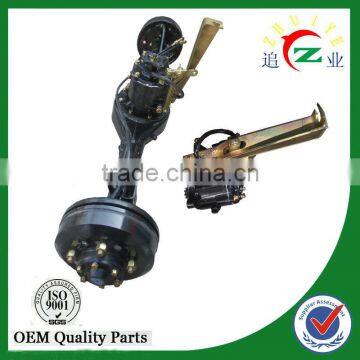

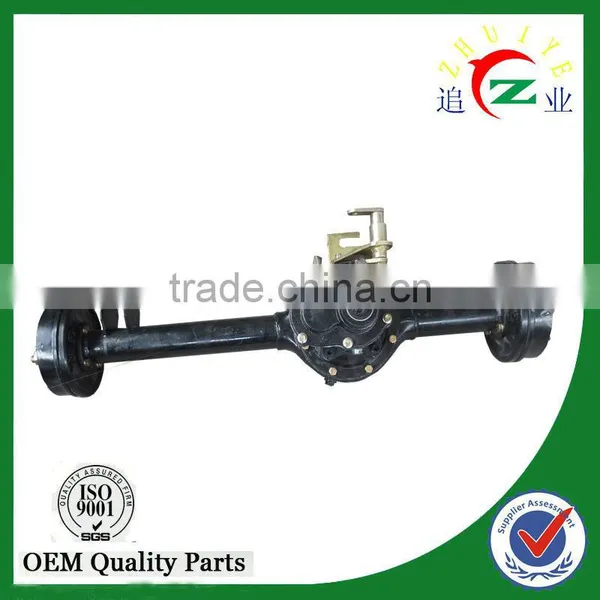

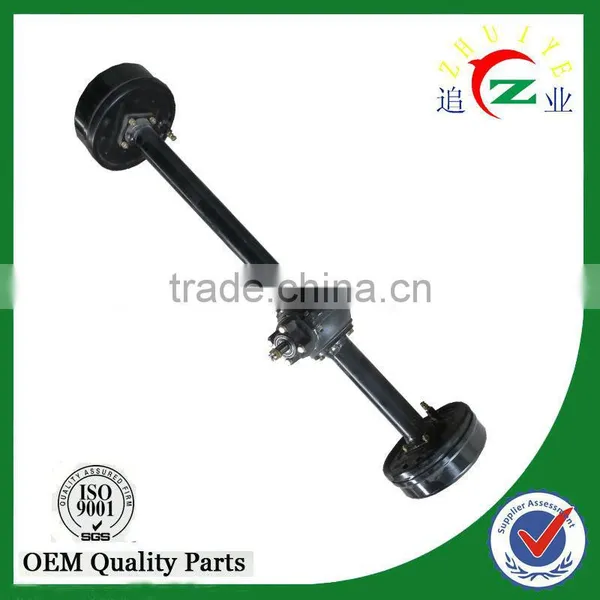

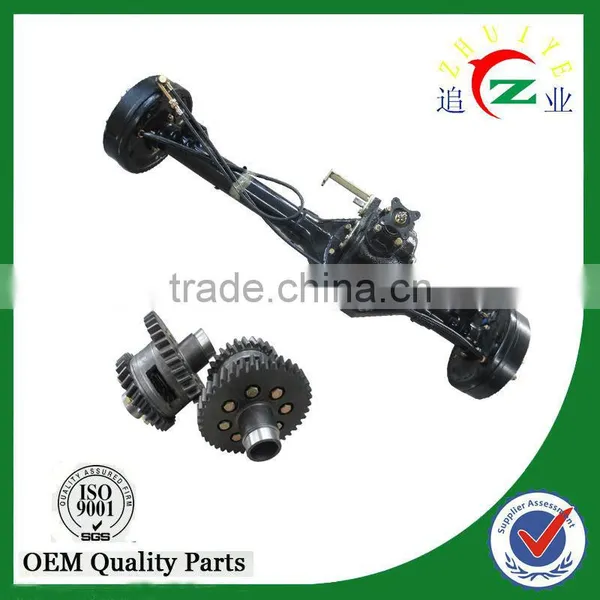

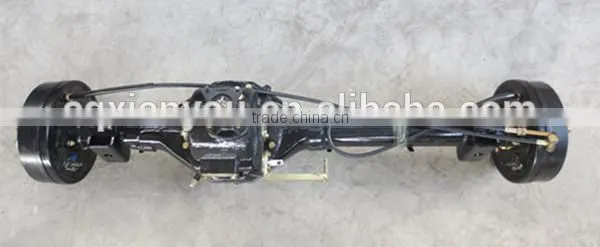

China ChongQing Mechanical/oil Brake Good Rear Bridge

Name: China ChongQing Mechanical/oil Brake Good Rear Bridge
Brand: XianYou
SKU: 141669672
Availability: InStock

Chongqing Xianyou Technology Development Co., Ltd.

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

XianYou

Model Number:

for tricycle

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name XianYou

Model Number for tricycle

Weight different as the Half shaft

Use Power transmission and speed Slow down

Expiration Date half a year

Specifications

1. has two speed
2.the reducer can reduce power consumption
3.more variety
4.Good bearing capacity
5.cheap

Product Description

Some parameter about rear axle

China ChongQing mechanical/oil brake good rear bridge
Structure	Full floating
Bearing	32009 tapered bearing
Brake	Hydraulic brake
Length of rear axle	1180mm 1148mm etc. (From hub to hub)
Ratio	High speed2.68 low speed6.25
Input spline	20174
Material	60*4(GB/T8162-1999 seamless steel tube)
Rim lock bolt	5-M14*1.5 right-and-left threaded
Rear axle tube	60mm/65mm/75mm
Speed	2 speed
PCD	5*140
Offset	120mm
Delivery	Within 30days
Load capacity	<2T
Wheel hub diameter	220mm
Net weight	65kg
Fit engine	from 50cc--400cc
Brand	Xianyou
Differential case diameter	180mm
Brand	Xianyou
Payment terms	T/T, L/C, D/P etc.

<1> the good bearing capacity

<2> easily installing

<3>reduce power consumption

<4> Flexible speed change and strong Traction power

detail information about 180mm rear axle
