Specifications
1.handbrake full floating rear axle,2.Taperd roller bearing,
3.Seamless steel tube,
4.Rear axle with two speed transmission.

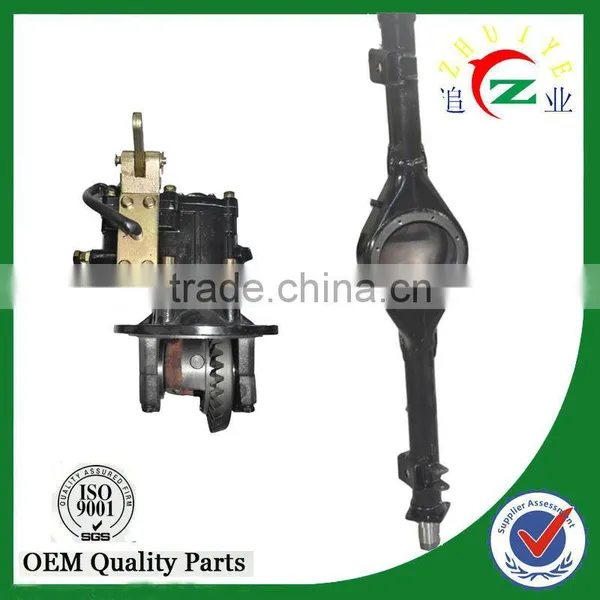

rear axle motor tricycle rear axle handbrake with 60*4 shaft housing
Description | rear axle motor tricycle rear axle handbrake with 60*4 shaft housing |
|
Structure | Full-floating | |
Tapered bearing | 32009 | |
Brake | handbrake | |
Length of rear axle | 1180mm etc. | |
Ratio | 4.1; 6.4 | |
Input spline | 20*17*4 | |
Material | 60*4(GB/T8162-1999) seamless steel tube | |
Rim lock bolt | 5-M14*1.5 | |
Rear axle tube | 60mm | |
Speed | 2 speed |
Tricycle handbrake full floating rear axle with two speed tricycle transmission has the characteristic of shifting high and low speed in the same gearbox, which is a separate transmission assembly attached to rear axle and equipped with control cable bracket.The shaft is connected to the flange, inputting the dynamic and there are two kinds of speeds through different transmission ratio. When at low speed, it will reduce power consumption and increase the vehicle traction and gradeability; when at high speed, it will be able to meet the need of raising the speed of the vehicle. Rear axle manipulated by handle and gearbox adopting synchronizer shift structure, when driving, gear shifting need the cooperation of clutch. |
Packaging details
1. Anti-rust paper, box, carton, wooden case
2.Custom packaging according to your specifications
our shipment
we adopt the container to ship by sea. the picture is as below:
OUR COMPANY
detail information
Our Company Name | Chongqing Xianyou Technology Development Co., Led. |
Established Time | founded in 1998 |
Our Company Character | specialized in machinery research, development and manufacture , high-tech Enterprise |
Our Factory Produce | all kinds of gears, gear box, rear axle for tricycle |
Our Award | in 2002-the gold medal of China quality “Wan Li Xing” in 2009-obtained the national high and new technology enterprise certificates issued by ministry of science and technology in 2008-four product standards and Chongqing key new product and excellent key new product certificate by Chongqing two different authority Official institutions |
Patents | 18 national patents |
Hardware Facilities | We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment |
Production capacity
| reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets. |
1.our office and factory
2.Factory equipments about Gear machine
3.Factory equipments about reverse gearbox
3.our Field (product pictures)
we mainly produce the gear, reverse gearbox, rear axle ,transmission ect.
