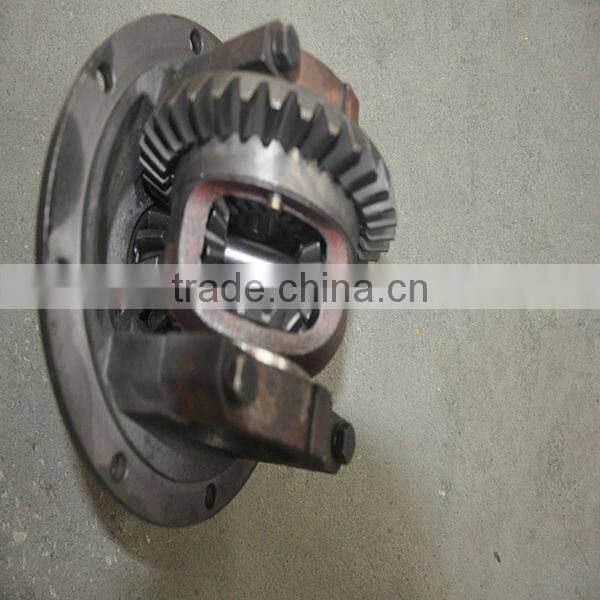

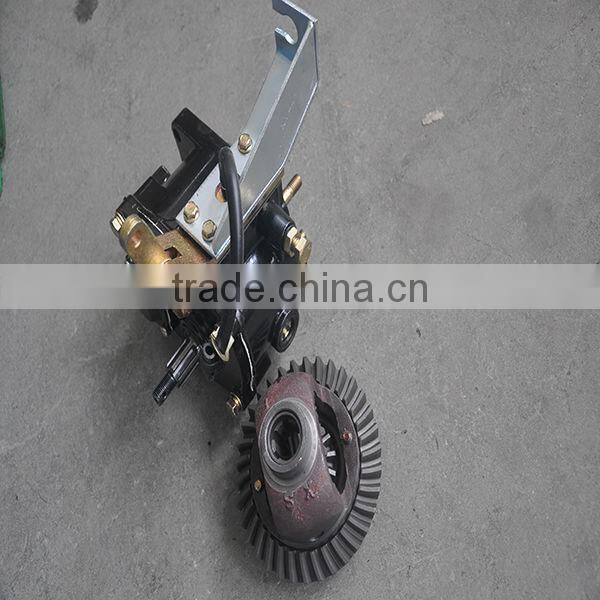

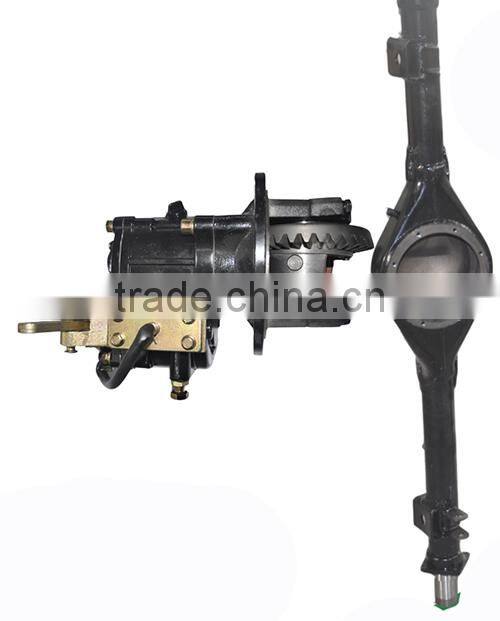

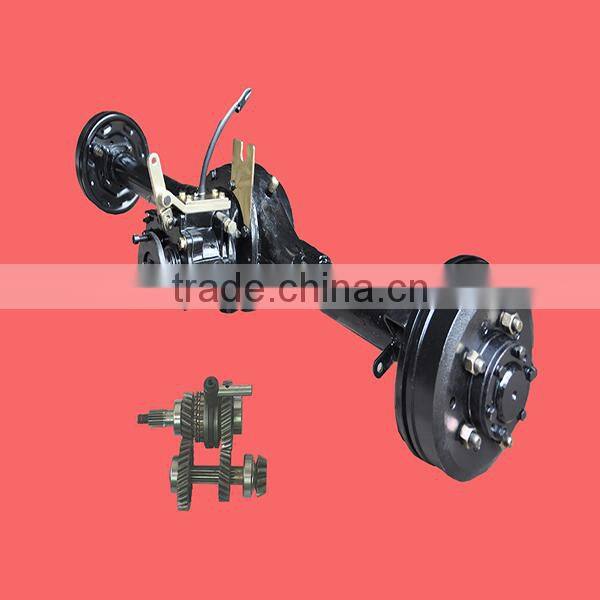

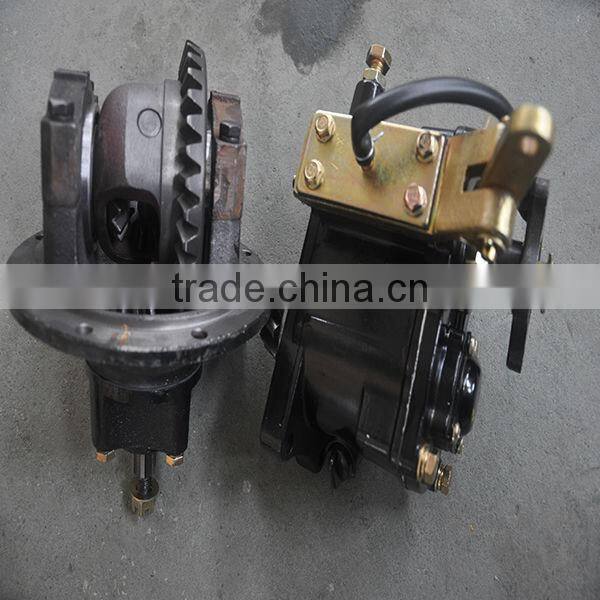

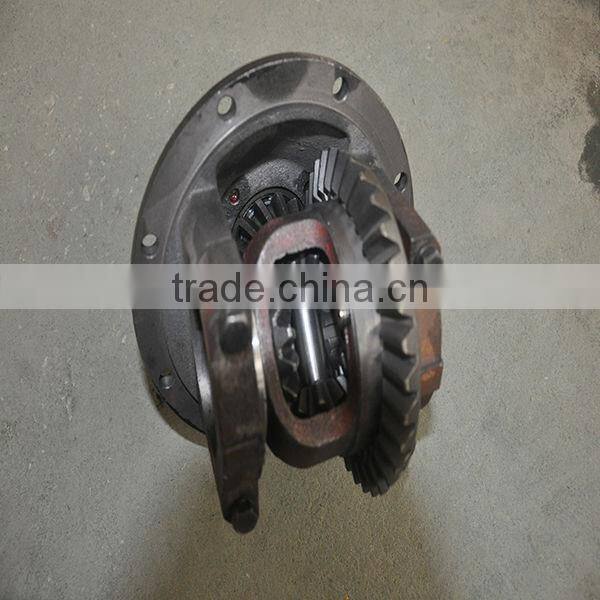

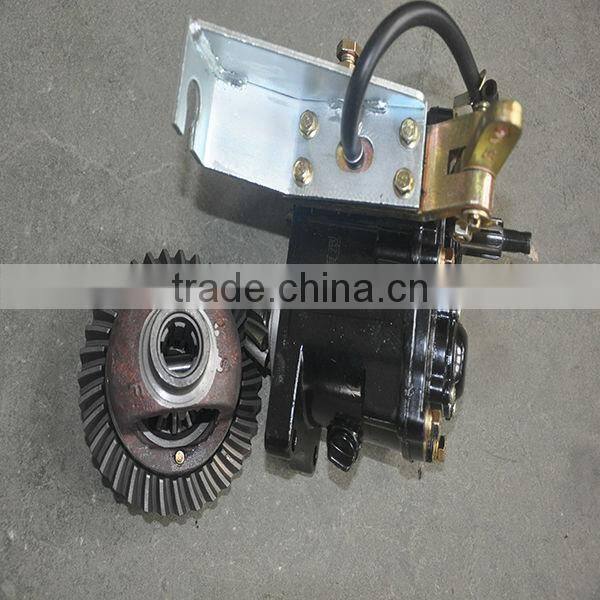

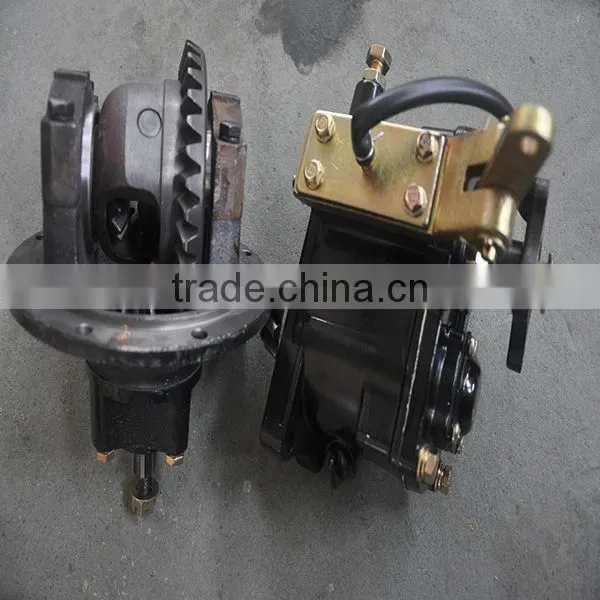

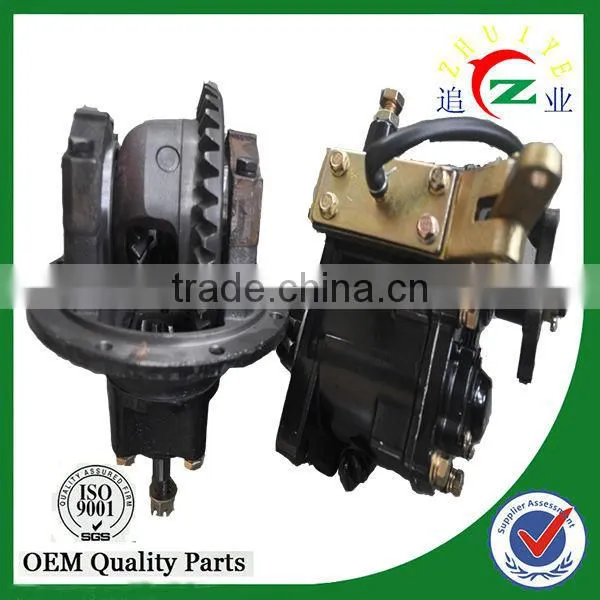

Tricycle Rear Axle Differential

Gearbox

Brand Name

Xianyou

Patent No.

ZL 98 2 28725.9

Applicable Vehicle

Tricycle; ATV; Motorcycle

Quantity/1 month

15000 Sets

Input spline parameter

20*17*4

Output spline parameter

20*17*4

High-speed ratio( Plain)

27:19

Low-speed ratio( Plain)

19:27

High-speed ratio(Mountains)

24:22

Low-speed ratio(Mountains)

17:29

Material

Al alloy,20CrMnTi,Stainless Steel

MOQ

100 Sets

Packaging

anti-rust paper, carton, and wooden case or custom packaging according to your specifications.

Payment terms

D/P

Price: FOB

Delivery time

30days or less, according to clients' quantity

Structural style

Full Floating

Bearing No.

6206-RS/32009 Taper bearing

Braking specification form

220hydraulic brake or 220 machanical brake

Length specifications of rear axle

End facing distance is 1180mm or other on both sides of rear axle

Gear ratio (Plain)

9/34*27/19(High Speed),9/34*19/27(Low)

Gear ratio (Mountains)

9/34*24/22(High Speed),9/34*17/29(Low)

Axle housing

Stamping and Welding structure

Axle tube

60*4(GB/T8162-1999) seamless steel tube

Input power form

Internal Spline

Rim locking bolt

5-M14*1.5(right-and-left thread)

Center distance

140mm
