35T SINOTRUK JWZ 4x2 Tractor Truck (ZZ4181M3611C)

Name: 35T SINOTRUK JWZ 4x2 Tractor Truck (ZZ4181M3611C)
Brand: HOWO
SKU: 141666922
Availability: InStock

SINOTRUK Qingdao Heavy Industry Co., Ltd.

US$ 20,000 - 80,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Horsepower:

251 - 350hp

Drive Wheel:

4x2

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA MAIN PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Horsepower 251 - 350hp

Drive Wheel 4x2

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Brand Name HOWO

Specifications

Good fuel economy, good dynamic performance and driving comfort operation, safety and reliable intelligent high-performance

SINOTRUK JWZ/ZZ4181M3611C TYPE

Weight Parameter	Complete Vehicle Kerb Mass(kg)		6600
	Maximum authorized total mass (kg)		18000
	Maximum authorized towed total mass(kg)		3,200,035,200
Dimension Parameter	External Dimensions(mm)	Length	5950
		Width	2490
		Height	307,037,003,870
	wheelbase(mm)		3600
	Minimum Ground Clearance(mm)		294
Performance Parameter	Maximum Speed(km/h)		93
	Economical Speed(km/h)		75
	Maximum Gradeability(%)		30
	Turning diameter(m)		7.03

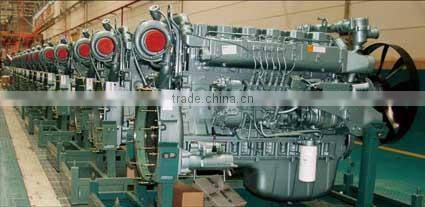

Recommended Configuration	Engine	Engine Type	WD615.92,WD615.93,WD615.93E,WD615.92E,WD615.92C,WD615.93C,WD615.97C,WD615.97E

		Rated power(kW)/Rev(r/min)	196,213,213,196,198,000,000,000
		Maximum Torque(N*m)/Rev(r/min)	1160/1300-1600,1100/1300-1600,1100/1100~1600,1190/1200~1500,1290/1200~1500,1160/1100~1600
	Transmission		HW13710L
	Clutch(mm)		430
	Rear Axle	Type	HW1249
		Speed Ratio	3.91
	Fuel Tank(L)		400
	Chassis Cross-section(mm)		300
	Suspension(Front,Back)		12/9+6,4/9+6,4/5
	Tyre		11.00-20 18PR,11.00R20 18PR,12.00-20 20PR,12.00R20 20PR,295/80R22.5 18PR
