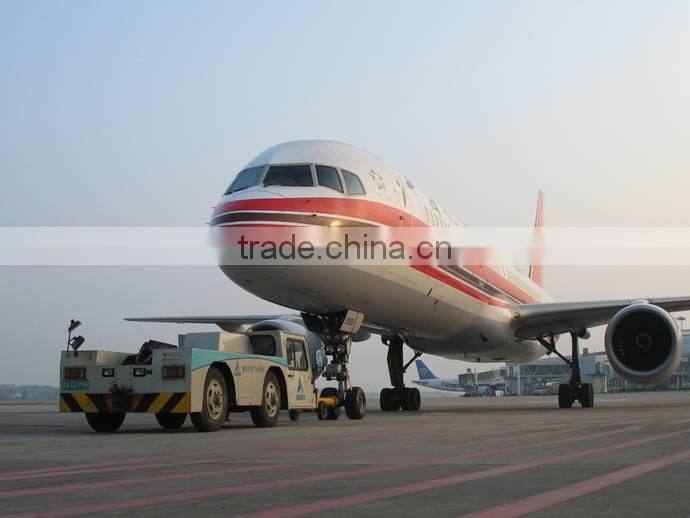

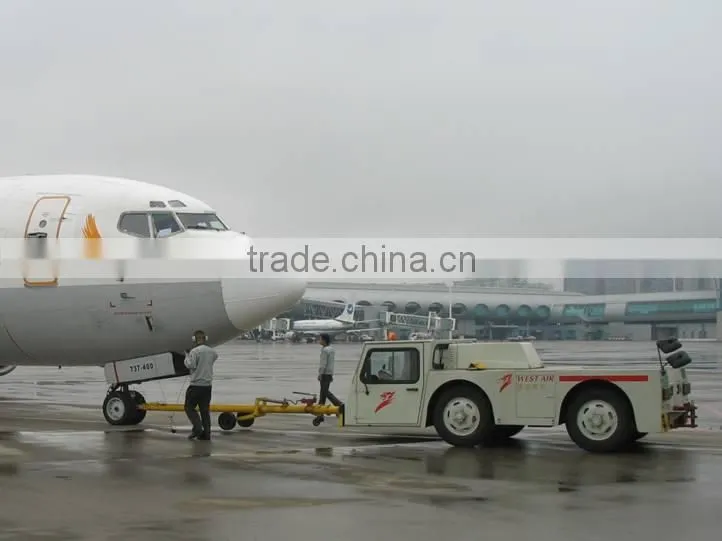

Aircraft Towing Tractor

Specifications

Aircraft towing tractor
1.Transmission with hydraulic mechanical drive.
2.High function-price ratio.
3.Safe in driving.

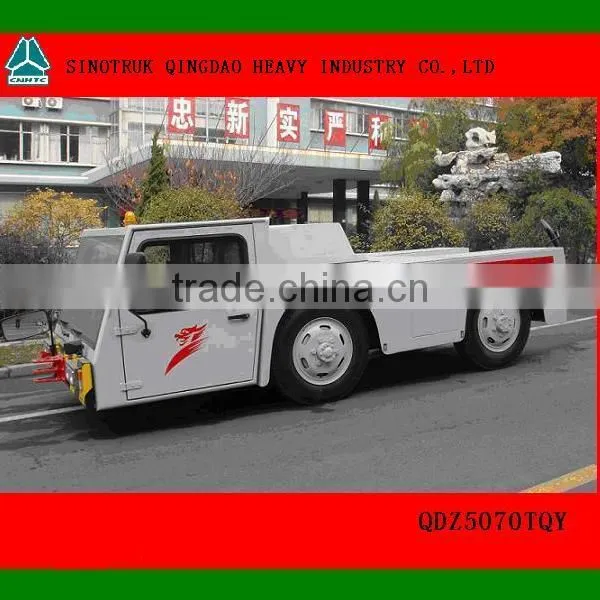

“Qingzhuan” Aircraft Towing Tractor



The introduction to Characteristics of Aircraft Tractor:

1. Convenient operation

The driver can control the airplane timely through controlling accelerator pedal and direction to realize airplane’s starting, accelerating, driving and stopping without shifting gear when pulling and pushing the airplane.

2. Safe in driving

With quattro function, there is no parasitic power when the vehicle pulling the airplane. Therefore, it is safe when pulling airplane in a rainy day or in the road with water.

3. Adaptability in various environments

The tractive force and engine power is not relevant to rotating speed and don’t change with altitude, air temperature and humidity, so the vehicle apply to various areas and climate.

4. Economical efficiency

Using hydraulic pump and motor made in German and hydraulic transmission technology, the vehicle is low oil consumption and high economical efficiency.

5. Flexible steering

The average applied moment of steering wheel is 3Nm. Hydraulic power steering is easy to operation and suitable for the work in narrow areas.

6. The minimum stable speed

The minimum stable speed is less than 0.1km/h, which is convenient for hanging traction holt and no shock when pulling and pushing airplane. Therefore it is convenient and safe for working.







Specifications
Wheel base	2050
Ground clearance	242
Fully loaded mass	7550
Drawbar pull (kN) (μ=0.8)
Low gear	54
High gear	16
Cab
Driver’s cab is crop metal jointing style. It has two seats. Seats could be adjusted. There are heating, air condition, wiper, rear view mirror and sun visor.
Axles
The front axle is steering drive axle. The rear axle is rigid driving axle. Suspension: both front and rear axles are leaf spring type.
Steering
Steering style of front axle is hydraulic steering.
Brakes
Service brake is double-loop pneumatic brake. Parking brake is mechanical internal expansion brake.

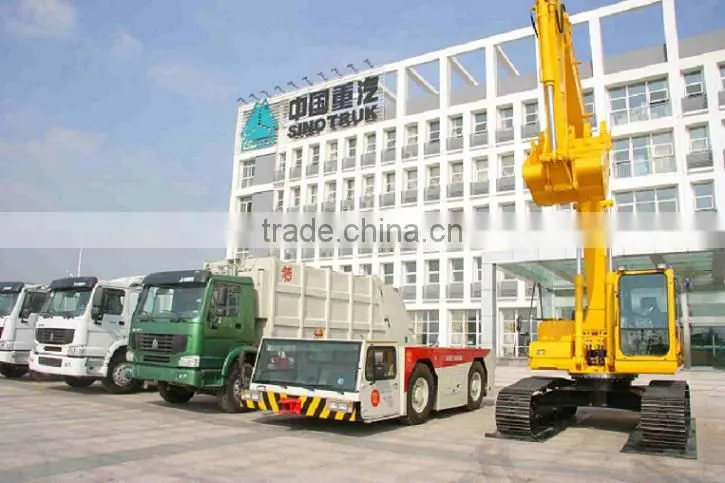

SINOTRUK QINGDAO HEAVY INDUSTRY CO., LTD

Trade mark:



 v  As a biggest speicial purpose vehicle manufacture in China, we currently owns

                 180 million USD - a fixed capital,

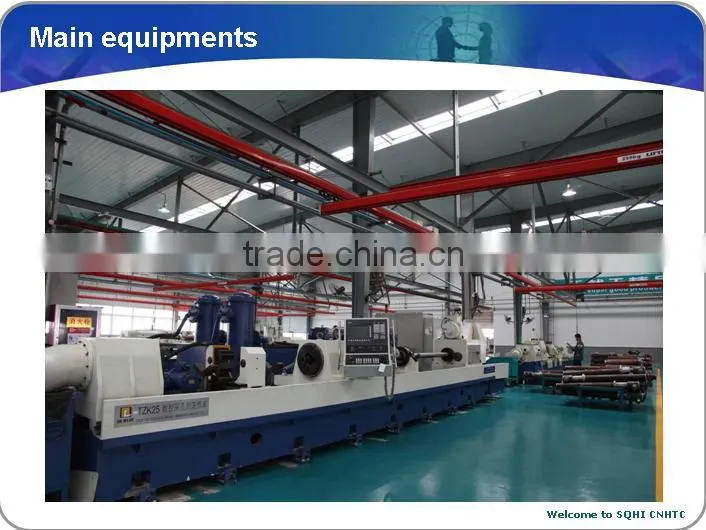

                 1500 pieces of main processing facilities,

                  1,350 working stuffs,

            Occupies 870,000 square meter

            20,000 units - output capability

R&D Center

v    The Technical Center of SINOTRUK Qingdao is the branch of Technical Development Center of SINOTRUK.

v    There are more than 350 engineering stuff working in the Center and it is equipped with the best hardware and software.

v    American UGS IDEAS for CAD program are able to make high quality three-dimensional prototype simulation design.

















I’m loewyliang from SINOTRUK QINGDAO HEAVY INDUSTRY CO., LTD.

Thank you for your attention to our company and productions.

Please contact me if you have any question about our company and productions.

I will reply at the first time.
