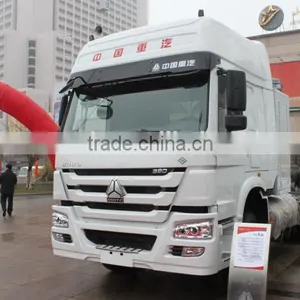

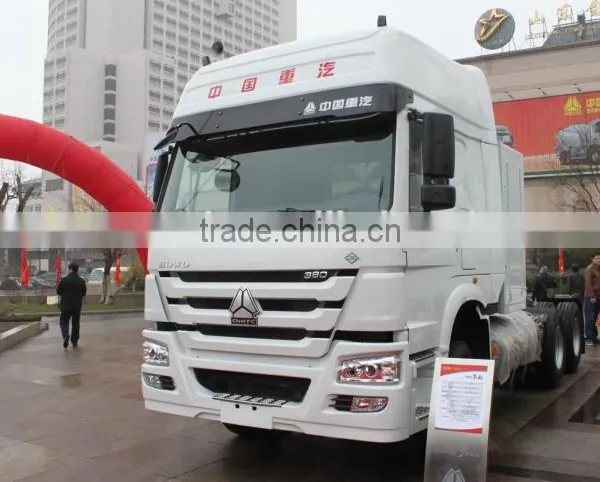

Help CenterCHINA Howo 6*4 380hp Tractor
Related Products
-
6*4 Sino Howo 420HP TRACTORUS$ 25,000 - 36,000MOQ: 1 Unit -
Sinotruk Howo Tractor Truck LNG TractorUS$ 25,000 - 36,000MOQ: 1 Unit
-
Sinotruk Howo Tractor Truck 310hp TractorUS$ 25,000 - 36,000MOQ: 1 Unit
-
Sinotruk Howo Tractor Truck 4*2 TractorUS$ 25,000 - 36,000MOQ: 1 Unit
-
SINOTRUK HOWO 6X4 Tractor TruckUS$ 25,000 - 40,000MOQ: 1 Unit
Specifications
6*4 380hp tractorMuch more safety
Very durable
Advanced engine
new condition truck
HOWO CNG Tractor basic configurations and main technical parameters(6x4,Euro3,extended cab) | |||
Typical vehicle model |
ZZ4257N3847C1CB/N9WA |
||
Cab |
Model |
HW76 |
|
Type |
Extended cab, single berth, up/down and front/back adjustable steering wheel,Vdo instrument and control module, safety belt with double locking mechanism, exterior sun visor |
||
Engine |
Model |
WT615.95 |
|
Reted power(kw/rpm) |
250/ 2200 |
||
Max torque(Nm/rpm) |
1350 / 1200-1500 |
||
Displacement/L |
9.726 |
||
Type |
Inline 6 cylinders, four valves, supercharged intercooling, lean burn, plug ignition, E-controls pressure regulating gas system. |
||
Cluch |
Φ430 diaphragm-spring clutch,hydraulically control air power assisted.Standard 430B type |
||
Transmission |
SINOTRUK HW series 10 speed transmission, 10 forward gears, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer.Standard HW15710 type for WT615.93 engine |
||
Front axle |
HF7, rated load of 7t, disc-type or drum-type |
||
Rear drive axle |
ST16 double reduction(central reduction+wheel reduction) speed ratio 4.42; 4.8 |
||
Suspension |
Front and rear leaf spring suspension, front suspension with shock absorber, transverse, rear suspension is disconnected type with transverse stabilizer. |
||
Steering system |
ZF8098 steering box,ZF steering oil pump , system pressure of 18 MPa |
||
Brake system |
Service brake: dual-circuit air pressure brake; energey storage spring air cutoff brake; engine exhaust brake; Optional EVB, ABS and automatic slack adjuster. |
||
Electrical system |
CAN bus control, voltage:24V; generator :2240W; starter:7.5kw; battery:12V/165Ah,2 pieces |
||
Tyre |
12.00R20; optional 295/80R22.5 |
||
Tank volume/L |
Behind the cab 4x140L, side of the frame4x80L, optional 8x140L behind or 4x140L behind+4x80L on side |
||
Kerb weight (vechicle / chassis)/kg |
9210 |
||
Gross mass/kg |
25000 |
||
Authorized max towed mass/kg |
39550 |
||
Permissible fifth wheel load/kg |
15660 |
||
External dimensions(length*width*hright)/mm |
7390*2496*3718 |
||
Wheelbase/mm |
3825+1350 |
||
Front/rear overhang/mm |
1500/715 |
||
Wheel track(front/rear)/mm |
2022/1830 |
||
Min ground clearance/mm |
314 |
||
Approach/departure angle |
16 / 70 |
||
Max speed/(km/h) |
102 |
||
Max packing slope/% |
20 |
||
Min turning diameter/m |
15 |
||
Ground clearance of fifth wheel joint face(unloaded)/mm |
1315 |
||
Front/rear turning radius / mm |
2260/2130 |
||
Traction pin specifiction |
50#(2 in.) |
||
Remark |
1*Other optional Typical vehicle model: ZZ4257M3847C1C/M9WA, ZZ4257N3847C1CB/P9WA 2*Optional drive wheel: 4x2 3*Optional cabin: high roof cab (HW79 |
||
