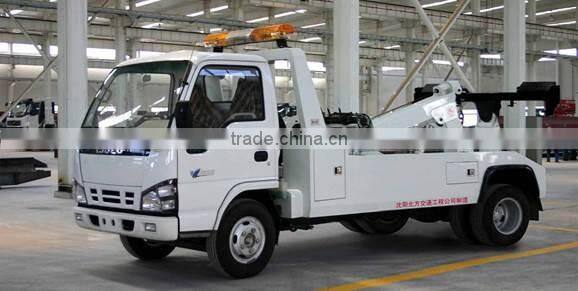

Road Wrecker Vehicle 4x2 QDZ5074TQZ

Items

Unit

Value

Boom Structure

Rated towing weight

kg

10000

Max. Lifting weight

kg

2000

Lifting weight of full extending boom

kg

800

Effective length of boom

mm

1750

Extension traveling of boom

mm

470

Folding angle of boom

90

Under lift Structure

Rated hanging weight

kg

3000

The height from hook to the ground

mm

4146

Extension traveling of hanging boom

mm

1400

Numbers of winch

piece

1

Max. Pulling power of winch

kg

4000

Diameter of steel cable

mm

10

Length of steel cable

m

25

Min. Speed of steel cable

m/min

4.5

Rotation angle

38

Vehicle

Parameters

External dimension

mm

6020×2170×2565

Chassis model

QL1090TKARY

Axle base

mm

3815

Drive

4×2

The whole weight of empty load

kg

5060

Load of front axle of empty load

kg

2435

Load of rear axle of empty load

kg

2625

The whole weight of full load

kg

9390

Load of front axle of full load

kg

3150

Load of rear axle of full load

kg

6240

Wheel base (front/rear axle)

mm

1680/1650

Front suspension

mm

1110

Rear suspension

mm

900

Approach angle

21

Departure angle

18

Min. Turning diameter

m

≤15

Max. Speed

km/h

95

Grade ability

30

Min. Ground clearance

mm

215

Engine model

-

4KH1-TC

Rated power

kw/r/min

129/2600

Max. Torque

n·m/r/min

500/1500-2000

Fuel type

Diesel

Standard of emission

EN III

Tire size

8.25R16

Persons

3
