Help Center50t 60t Strong Power Lifting Hoist for Dump Truck/tipper
Related Products
-
Long Stroke Single Acting Hydraulic Lifting CylinderUS$ 5,000 - 5,001MOQ: 30 Sets -
Single Acting Dump Truck Tipping Hydraulic JackUS$ 3,900 - 4,000MOQ: 30 Sets
-
4stages Dump Truck Hydraulic Hoist CylinderUS$ 3,900 - 4,000MOQ: 30 Sets
-
Dump Truck Tipper Hydraulic CylinderUS$ 5,000 - 5,001MOQ: 30 Sets
-
Steel Material 4 Stages Hydraulic Lifting HoistUS$ 3,900 - 4,000MOQ: 30 Sets
Specifications
stabel, less leakage, strong power, good quality
♥ The instruction for EURIK tipping gear ♥
EURIK multistage cylinder is manufactured by the cooperation of Special Truck Company of CNHTC and NUMMI Company of Finland. Its main characteristics are stated as follows: more secure, rigid integrated limit prove inner tube take out; more efficient, high-low pressure sealing is adapting to frequent operation; more widely, adapting to different regions and different working situations; more powerful, system pressure reaches 20-24Mpa; more durable, cylinder barrel uses seamless steel pipe, chrome plated on the surface is more reliable, and all the core component are imported; more stable, supported by welded copper ring, oriented longest.

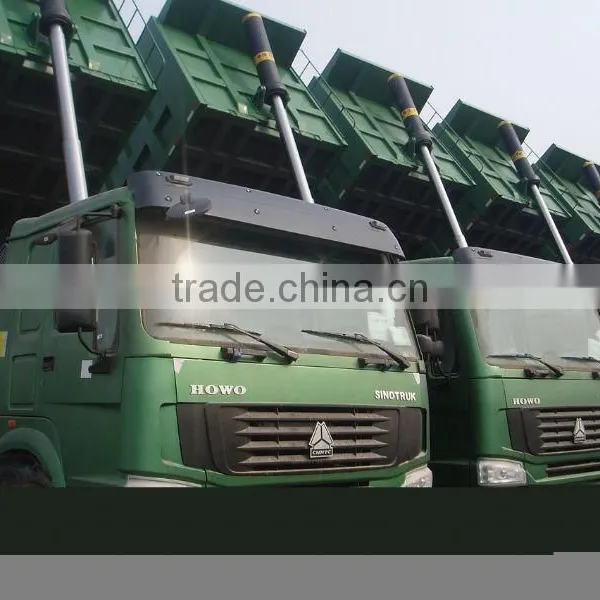

the hydraulic cylinder is on the final loading capacity experiment stage ↓↓
♥ Major characteristics ♥
Imported high-quality steel pipe, the superior material, high strength, ensures the reliability of the product.
The inner wall of cylinder tube is thin, light weight.
New type sealing way of high pressure combined with low pressure ensures the sealing reliability under different pressure conditions, which can adapt to the requirements of different regions.
Long guide improves the cylinder’s bending resistance , and enhance the adaptability of carriage side slip.
The key components are made of press forging parts and overall performance is better , which improves the reliability of the hydraulic cylinder.
The base axis is broaden to Φ80 , more carrying capacity, stronger impact resistance,more safety.
Applying EURIK lift valve is more suitable for front lifting system.
Copper ring structure made by mechanical processing with high size precision, contacts cylinder surface evenly, and anti cornering performance is good.
Cylinder surface adopts chrome plating processing, improving the hardness, enhancing the corrosion resistance and wear resistance.
Series of cylinder is reasonable, and complete series products can meet the needs of heavy haul transportation, mine transportation and city sediment transportation,etc.
Operating system is reasonable, overall system performance is more stable.
Long-term experience in producing trucks provides technical support for the EURIK , which can meet the needs of the market.
the spare parts picture and the installation way ↓↓
| L - cargo length |
| L1 - rear suspension |
| H - height of cargo height |
| C - upper bracket length |
| T - Max.lifting capacity |
| A - max.lifting angle |
The technical parameter for reference
SINOTRUK QINGDAO HEAVY INDUSTRY CO. LTD. is one of the wholly owned subsidiaries of China National Heavy Duty Truck Corp., Ltd. As one of the leading special truck R&D center, our company is also the biggest truck manufacturing and exporting base in Qingdao, China. With over 1,350 staffs, SQHI covers an area of 533,328 square meters and owns 2 billion RMB fixed assets. The main products cover dump trucks, concrete mixer trucks, bulk cement trucks, garbage trucks, aircraft tractors, excavators, military vehicles, hydraulic components, etc. A series of advanced professional production lines have been built and imported in order to provide professional top-class products for international market. Now, SQHI has the capacity of manufacturing 20,000 units of special truck and over 60,000 sets of hydraulic component per year.
SQHI is one of the 52 national vehicle export base and almost 50% of its products are exported every year. In 2011, 12,064 units of special trucks were manufactured and 6,400 of them have been exported to more than 50 countries and regions worldwide including Southeast Asia, Middle East, Africa, South America, etc. The export earnings of our company reached USD 24.71 million last year.
While making significant progress, we are trying our best to continuously improve ourselves. We are looking forward to cooperation and partnerships from clients all over the world.
