SINOTRUK 10 Wheel 380hp Dump Truck

SINOTRUK Qingdao Heavy Industry Co., Ltd.
SINOTRUK 10 Wheel 380hp Dump Truck thumbnail-1
SINOTRUK 10 Wheel 380hp Dump Truck photo-1
US$ 40,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
251 - 350hp
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
any China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Drive Wheel 6x4
Capacity (Load) 21 - 30t
Horsepower 251 - 350hp
Condition New
Transmission Type Manual
Emission Standard Euro 2
Fuel Type Diesel
Gross Vehicle Weight 25000
Place of Origin Shandong, China
Brand Name HOWO
Model Number ZZ3257N3647
Dimensions (L x W x H) (mm) 7835x2496x3170



FAQ

 truck

Q.How about your product quality?

A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.

Q. How about your company's service, especially after-sale service?

A: SINOTRUK QINGDAO HEAVY INDUSTRY has been in this field for nearly 60 years and has strong production and distribution capability,we can satisfy your demand within 3-7 days.We always do our best to solve all the problems and put our customer's interests in the first place.

Q:Is there any advantages of your price?

A: SINOTRUK QINGDAO HEAVY INDUSTRY CO., LTD has a capacity of manufacturing 100,000 unit special trucks and over 60,000 set hydraulic components per year,which provides guarantees for reasonable price and good quality.



Product Description



dump truck

SINOTRUK HOWO 6x4 dump truck



SINOTRUK HOWO 6x4 Tipper truck

Engine

Maker: SINOTRUK

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & intercooling

Engine model:WD615.47

Max. output: 371hp@2200rpm

Max torque: 1500NM@1100-1600rpm

Bore/Stroke(mm):126/130

Mean Position Speed: 9.53m/s

Compression ratio:15.5:1

Specific fuel consumption: 198g/Kwh

Clutch

Φ430 diaphragm clutch

Transmission

SINOTRUK HW19710 (mechanical type)

Front Axle

HOWO08 front axle

Rear Axle

HC16 ( double reduction driving axle)

Chassis

Front overhang (mm): 1500

Rear overhang (mm):1830

Wheel base (mm): 3425+1350

Rear track (mm): 1830

Steering

ZF8098 integral type power-steering

Wheel & Types

12.00-20

Spring :10/12

Driver's cab

HW 76 , flat head, double doors, tippable, normal-roof with A/C

Dimensions in (mm)

Dimension(mm): 7835*2496*3200

Max speed: 75 km/h

Max. gradeability(%): 25

Approach angle: 19degree

Departure angle:30degree

Fuel consumption (L/100km): 36

BODY

Inner size: 5200x2300x1500

Capacity: 17.94CBM

Thickness of steel(mm): floor 8, side 4

Tipping system: Middle tipping F type

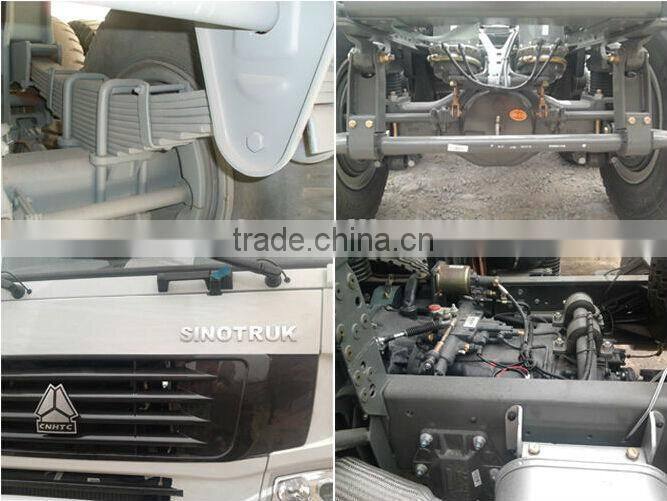

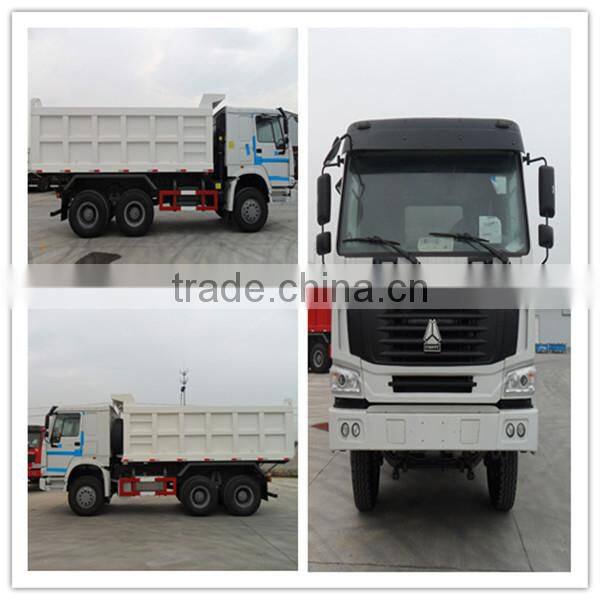

SINOTRUK 10 wheel 380hp dump truck

SINOTRUK 10 wheel 380hp dump truck

SINOTRUK 10 wheel 380hp dump truckSINOTRUK 10 wheel 380hp dump truck

 SINOTRUK 10 wheel 380hp dump truck

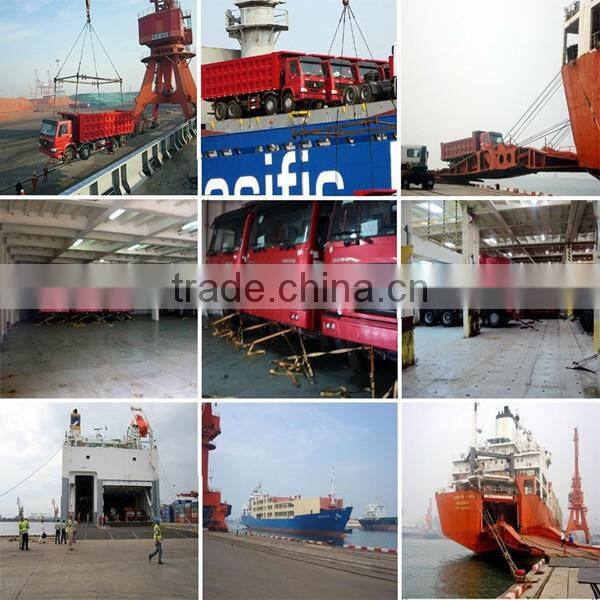

port



 SINOTRUK 10 wheel 380hp dump truck
