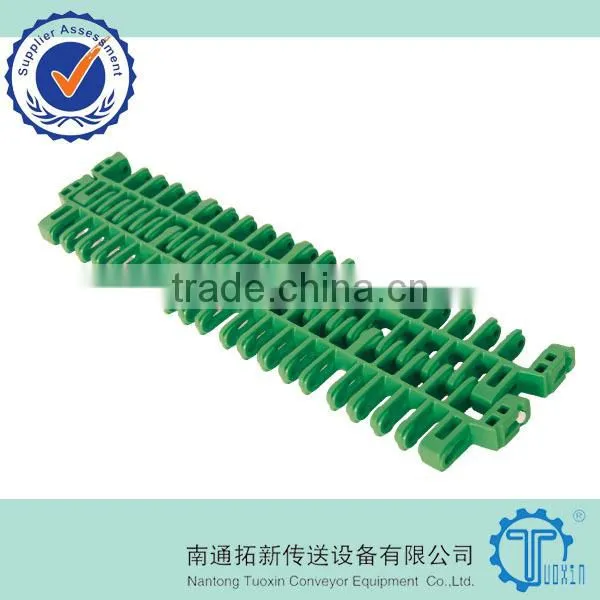

IS615 Radius Flush Grid Plastic Conveyor Belt

Specifications

Plastic Conveyor Belt
1.Belt pitch:38.1mm
2.Open area:75%
3.Assembling method:connected with rods
4.10 years experience

 Item name: IS615 Radius Flush Grid Plastic Conveyor Belt



Specifications:

1.Belt pitch:38.1mm

2.Open area:75%

3.Assembling method:connected with rods

4.Belt width less than 610mm, Inside turning radius:Rmin=2.2*W

   Belt width over 610mm, Inside turning radius:Rmin=2.5*W



• Plastic Conveyor Belt
• Flush Grid Conveyor Belt
• Radius Conveyor Belt
• Modular Conveyor System
• Modular Belting
• Seafood Processing Equipment
• Modular Plastic Conveyor
• Slat Belt Conveyor

The radius belts offer a solution for almost any curved applications. As a standard, the belts are supplied in POM for beverage and PP for direct food contract.



Engineering data:

Belt type	Material	Temperature range		Working load(max.)		Weight	Backflex radius(min.)
		dry	wet	N/m(Straight)	N(Curved)	Kg/m²	mm
IS615	POM	5 to 80	5 to 65	21000	1700	8.7	50
	PP	5 to 90	5 to 90	14000	1100	5.8
	PE	-40 to +65	-40 to +65	11000	800	6.0









Drawing:





Related Sprocket:

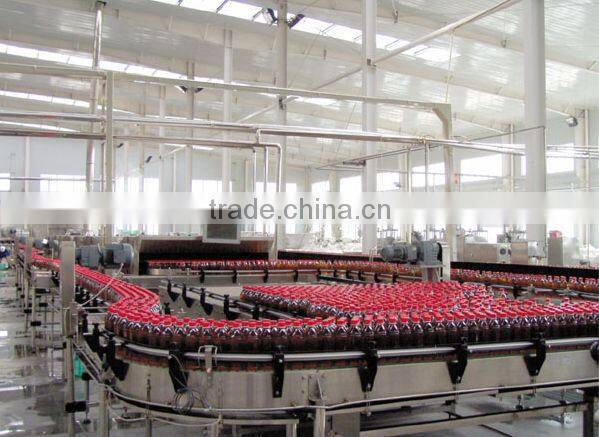

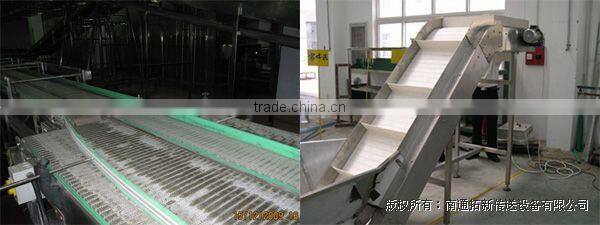

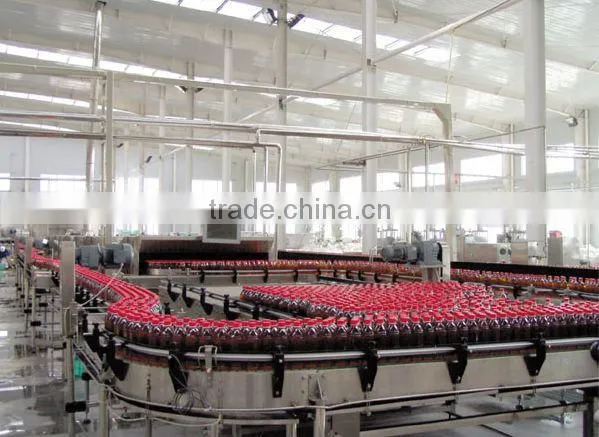

Applications:





Packaging and Certificate:
