Home > Products > Radius Belts > Turning Radius Flush Grid S2400,modular conveyor belts
Turning Radius Flush Grid S2400,modular conveyor belts
- 3000 Square Meter / Square Meters per Month
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tuoxin | |
| Model Number | TR2400 |
Product Description
modular belt
conveyor belts
plastic belts
plastic modular belts
modular plastic belts
Belt Material:POM / PP
Belt Pitch:25.4mm
Open Area:42%
Backflex radius:50mm

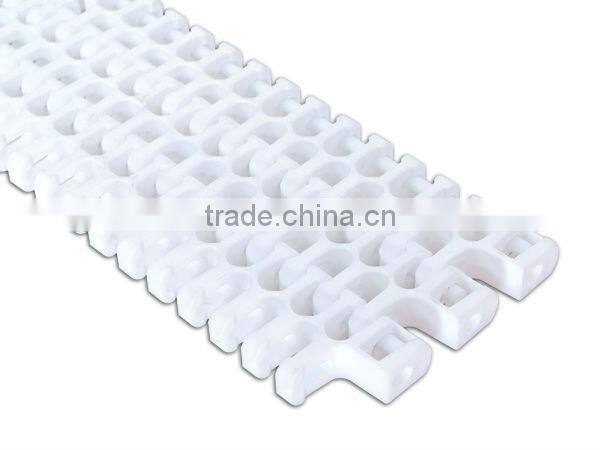

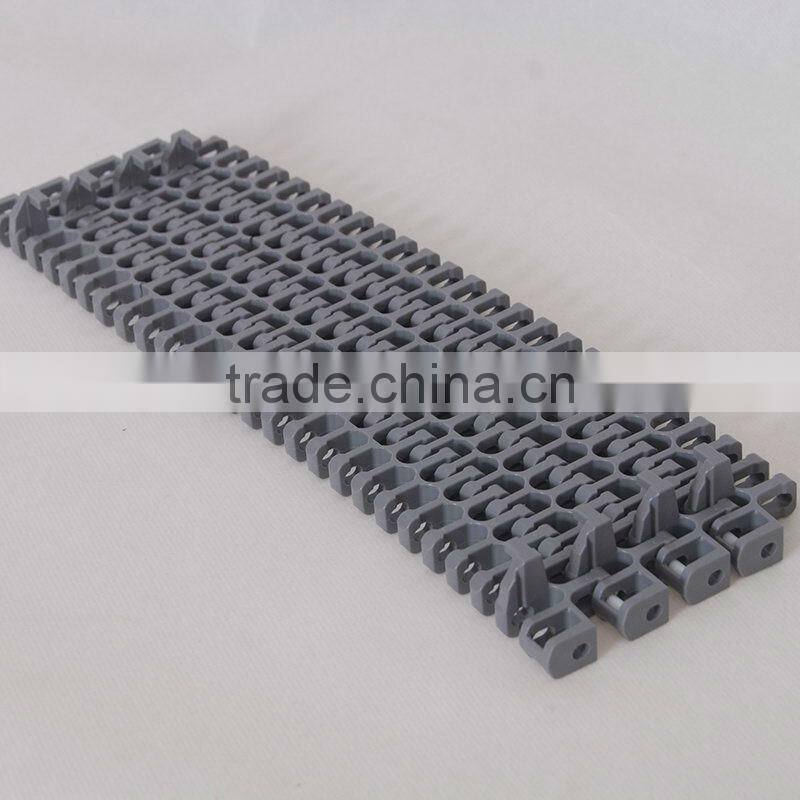

Pictures for S2400 Radius Flush Grid Modular Belt:
Data Sheet for S2400 Radius Flush Grid Modualr Belt:
| Belt Type | Belt Material | Working Load(max) | Belt Weight | Temp.Range | Backflex Radius(min) | ||
| N/M(Straight) | N(Curved) | KG/m² | DRY | WET | mm | ||
| TR2400 | POM | 24800 | 1100 | 10.8 | -40to+80°c | -40to+65°c | 50 |
| PP | 17500 | 780 | 7.0 | +5to+104°c | +5to+104°c | 50 |

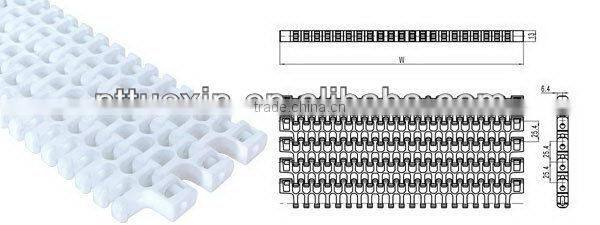

Drawing for S2400 Radius Flush Grid Modular Belt:

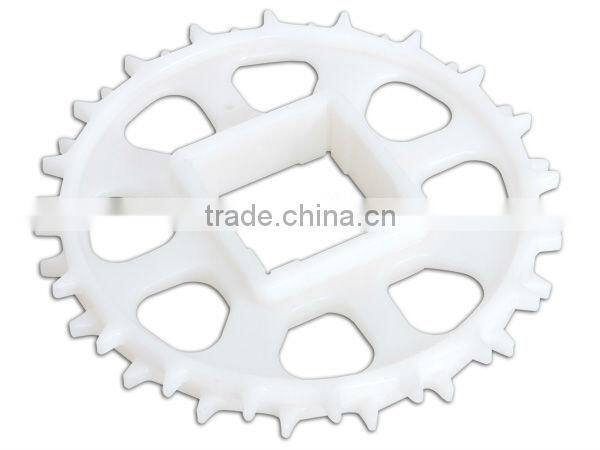

Sprocket for S2400 Radius Flush Grid Modular Belt:
Our company has been qualified with ISO 9001:2000 quality system. The production strictly complies with the standard and procedures of ISO 9001, which ensures good product quality.
If you have any interests about our products,please feel free to contact us.
