Help CenterRadius Flush Grid Belts 2400B,modular Belts
Related Products
-
Radius Flush Grid 2400A Radius Modular BeltUS$ 100 - 200MOQ: 5 Square Meters -
Modular Plastic Belts for ConveyorsUS$ 100 - 150MOQ: 5 Square Meters
-
IS615 Radius Flush Grid With Pop-up Flights Modular BeltsUS$ 180 - 200MOQ: 5 Square Meters
-
FLS254 Radius Belts Modular Plastic BeltUS$ 100 - 120MOQ: 5 Square Meters
-
Flush Grid 2400B Radius BeltUS$ 100 - 120MOQ: 5 Square Meters
modular belts
conveyor belts
plastic belts
plastic modular belts
Belt Material:POM / PP
Belt Picth:46mm
Open Area:52%
Backflex radius:76mm
Our company has been qualified with ISO 9001:2000 quality system. The production strictly complies with the standard and procedures of ISO 9001, which ensures good product quality.
Introduce for plastic modular belts:
Modular belts are constructed with modules molded from thermoplastic materials connected with soild plastic rods.Except for narrow belts(one complete module or less in width),all are built with the joints between modules staggered with those of adjacent rows in a "bricklayed" fashion.This structure can enhance transvers strength and it is easy for matintain.
The total plastic and cleanable design can solve the steel belts easily polluted.Now the cleanable design make the belts very suitable for food industry area as well.Also there are be widely used in many other industries,such as container making,pharmaceutical and automotive lines of battery and so on.
Tuoxin company has a widely range of different material and structure belts.The range of Tuoxin's modular belts varies from 3/8 inch small pitch straight running belts to 2 inch pitch sideflexing belts.The most commonly used belt styles included:
Application of different types of belts:
Flat Top:suitable for a wide range of products,when a fully closed belt syrface is preferred.
Flush Grid:commonly used in applications,where drainage or airflow is desired.
Raised Rib:recommended in applications where product stability over transfers is a concern.
Friction Top:commonly employed on incline conveyors,where the elevation of product changes.
Friction top modular belts can be used up to an angle of 20 degrees,depending on the pack style and material.
Roller Top:used in a variety of low-pressure accumulation applications

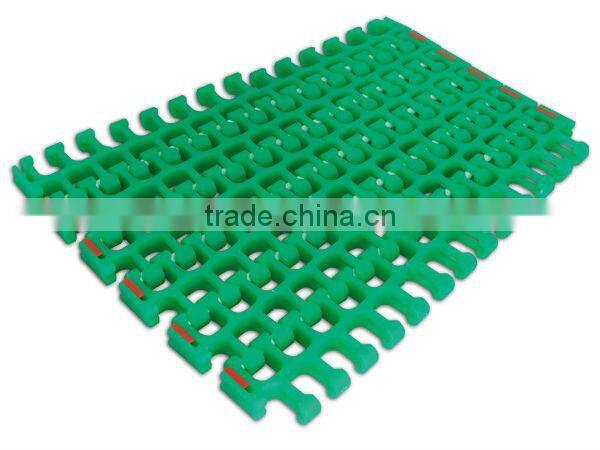

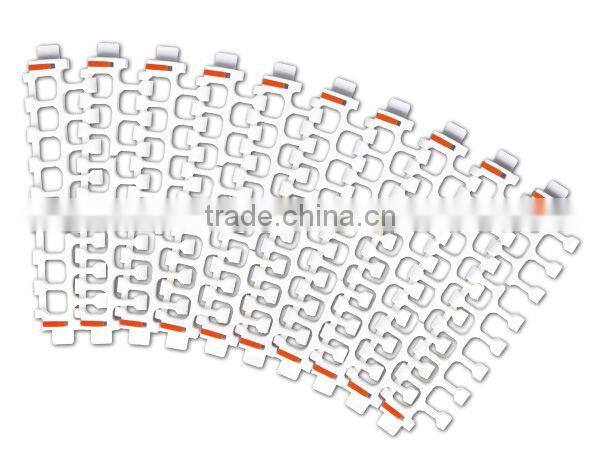

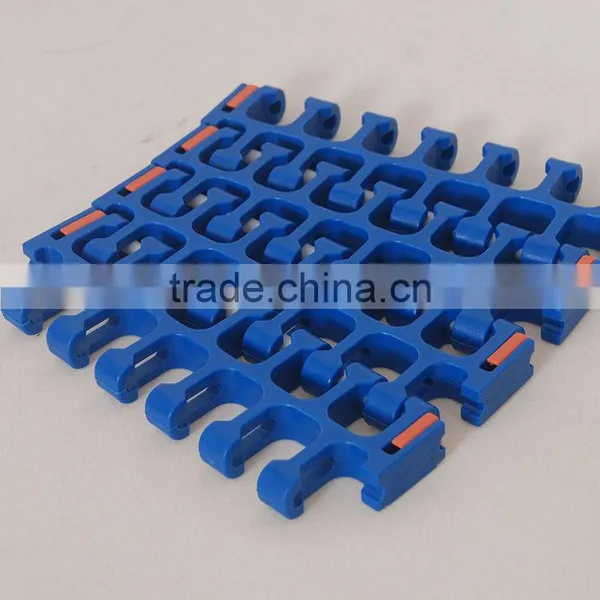

Date Sheet and Pictures for Radius Belts:
| Belt Type | Belt Material | Working load(max) | Belt Weight | Temp.Range | Backflex radius(min) | ||
| N/M(Straight) | N(Curved) | KG/M² | DRY | WET | MM | ||
| 2400B | POM | 27000 | 1300 | 9.70 | +40to+80°c | +40to+65°c | 76 |
| PP | 17500 | 1300 | 6.40 | +5to+104°c | +5to+104°c | 76 |
S

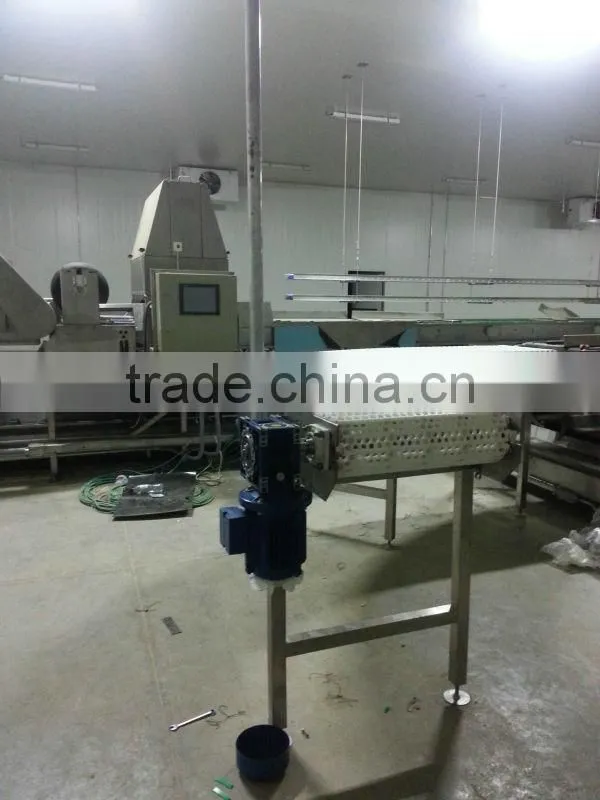

Application for Radius Conveyors:
Since we have been specilized in this industry area for more than ten years,now,we have many kinds of modular belts,if you have any interests about our products,please feel free to contact us.
