Shenghui Machine Direct Sale High Quality Food Dehydrator Machine,industrial Food Dehydrator,fruit and Vegetable

  Shenghui Machine direct sale high quality food dehydrator machine,industrial food dehydrator,fruit and vegetable

company website:/

Food dehydrator picture:

Food dehydrator machine  Parameters:

 Guangdong shenghui factory is specilized in manufacturing, reasonable price,stable quality, excellent service.

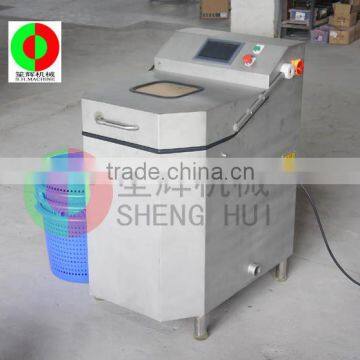

 Vegetable and fruit food dehydration machine description:

The food dehydrator adopts centrifugal movement theory, the liner is in high speed running based on the power of motor, the water on the vegetable or fruit is in centrifugal movement and sent out through the holes on the liner

Maine feature of the food dehydrator:
(1).Standrize, modularization heavy load design, strong and stable.
(2).High capacity , high perfromance.
(3).Safety and reliable.
(4).Stable working, high efficiency of dehydration, low noice, low shaking, low power consumption, long life

(5).Simple structure, easy for clean and maintainece, enviroment friendly.
(6).High automation, much better than tranditional dehydrator.

  food dehydrator

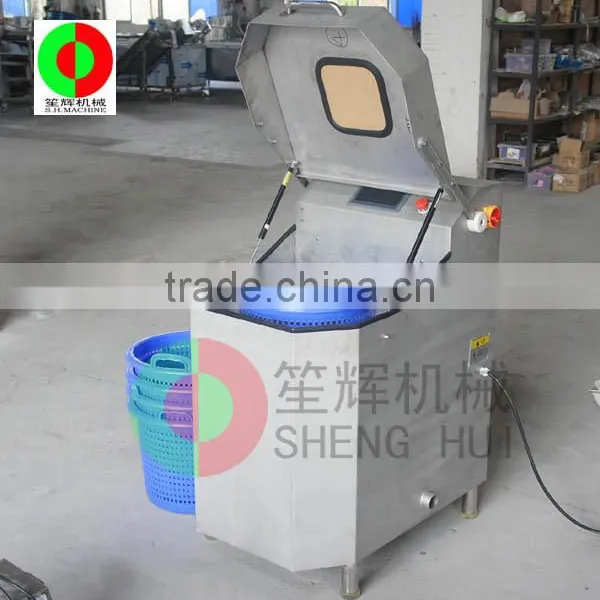

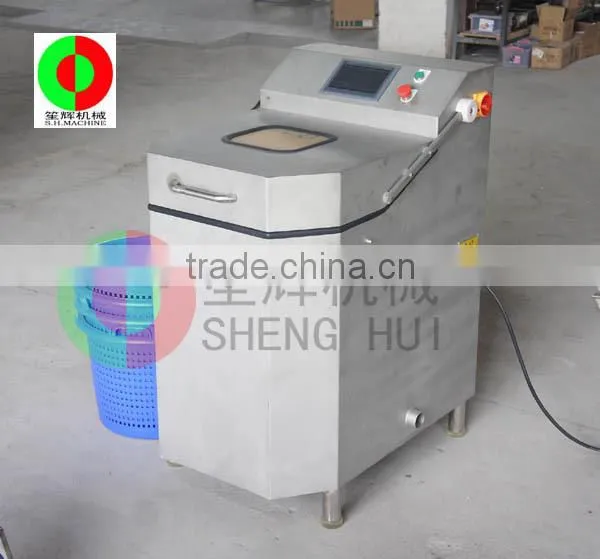

Name:Automatic continuous vegetable dehydrator

type:TS-50A

voltage:380V

power:5.5KW

capacity:50-80KG/time

working speed:200-1000r/min

weight:1000KG

size:1400×1400×1900mm

Automatic continuous vegetable dehydrator are suitable for all kinds of vegetables, fruit, rice, wheat and other material dehydration dry, upper feeding machine, lower discharge, can connect conveyer complete water production, the machine adopts microcomputer PLC control, dry speed and cycle time is adjustable and unlimited cycle run, realize feeding - dry - brake - discharge, fully automated, greatly improve production efficiency.

food dehydrator

Vegetables chopping,cleaning,air drying production line process: cutting,cleaning and drying.

1. After the artificial separation of raw materials and cutting machine cutting, the conveyor of transfering to QX - 42 bubble cleaning machine. The machine adopts high pressure gas bubble generation, surfing in circulating water pump, ozone antivirus and promote four heavy high pressure water jet cleaning, and set the filter in the device. Filter by MAO roll and roll screen, effective separation of adhesion on the rotten vegetables leaf, food residue and impurities such as hair, impurities by circulating water weir flow, by circulation the sink strainer isolation, in order to maintain the cleanness of clean vegetables. Spray cleaning process and high pressure nozzle for water supply, water supply is adjustable, convenient customer for flexible adjustment according to the vegetable processing and clean degree. At the same time, in this process, customers also can according to oneself circumstance to join the right amount of potions, carry out disinfection again or preservation role.The machine can also be equipped with refrigeration equipment, lower temperature of the material increase the preservation time.

2. waterlogging and drying. After cleaning and disinfection, the material into the drop dryer to remove excess water.

Name:Air bubble cleaning machine

Material: stainless steel

Type:QX-42

Voltage:380V

Power:4KW

Size:4300×930×1480mm

Output:2000-2300kg/h

Remark:The product can be tailor-made according to customer's specific needs

Name:Air drying machine

Material: stainless steel

Voltage:380V

Power:7.1KW

Size:5080×860×1400—1550mm(the height of the machine can be adjusted)

Remark:The product can be tailor-made according to customer's specific needs

food dehydrator

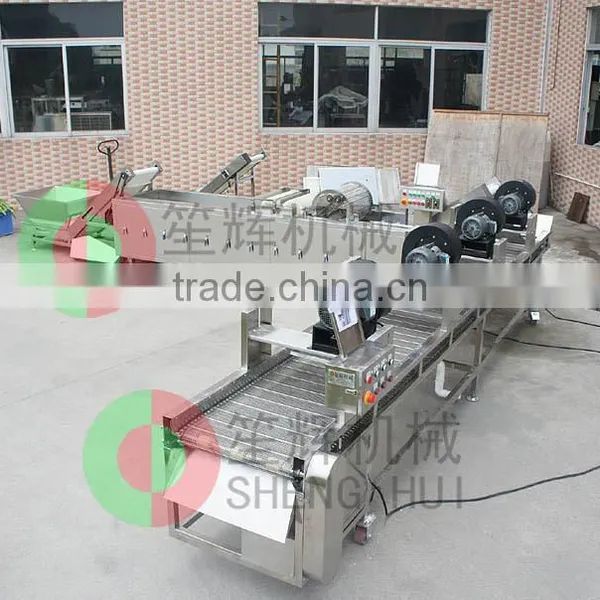

Continuous fruits and vegetables peeling cleaning cutting, drying production line

Output: 2-2.3T/h

Voltage: 380v

Power: 17.5KW

Derail introduce: 1,Mainly consists of motor, speed changer and brush rollers. The material in the cleaning groove by a screw blade to move forward, and brush contact friction, and the high pressure nozzles spray the upper part of the machine, so as to achieve continuous cleaning effect. Machine below waste collection area space convenient enough waste removal, and the new filter, can be completely separated from the waste residue and waste water, waste residue in the above the screen easily blown away, while the wastewater in the screen below the automatic discharge. Widely applicable to circular, oval fruits and vegetables such as ginger, carrot, potato, potato, sweet potato, such as cleaning, root vegetables peeling potatoes. Fruit hair roller cleaning peeling machine has the advantages of beautiful appearance and convenient operation, cleaning and peeling of large volume, high efficiency, low energy consumption, continuous cleaning, simple operation, long service life, cleaning rod rolling material for nylon cord after the special craft processing, peeling and hard materials, both durable, wear-resistant performance good. The whole machine is made of high quality stainless steel material, rotary discharge, does not rust, clean health.

2,Cutting and blanching after peeled. You can customize the slicing,striping and dicing cutter. After blanching,the material wil get into the drain and dry machine to remove the moisture. At last, you could also match automatic weighing machines and automatic packing machine.

3,This continuous production line is widely used in large-scale processing enterprises, multi-purpose, high efficiency. A production line is capable for more than 200 production workers, high output, stable performance, good effect, shorten production time and improve efficiency.

food dehydrator

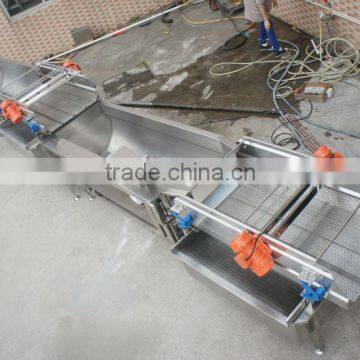

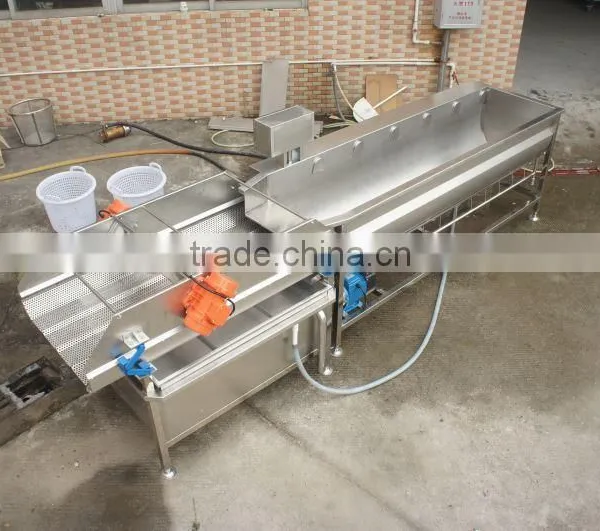

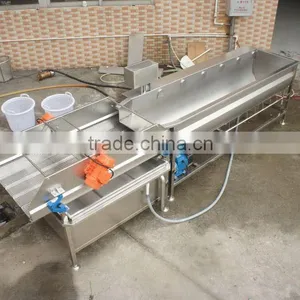

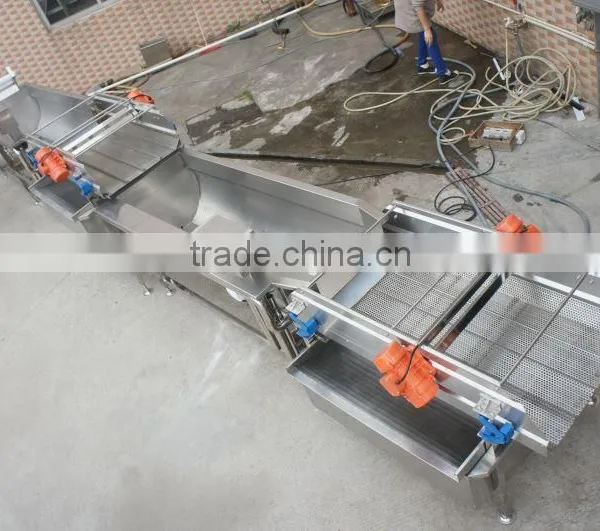

Name:Eddy type vegetable washing machine

material:304# stainless steel

type:WL-24

weight:290KG

voltage:380V

power:3.07KW

machine size:3560×1150×1200mm

capacity:1.8Ton/Hour

Remark:the machine can be customed as customer requirment

usage: it is suitable for the leaf vegetable ,root vegetable and the souse vegetable and fruit, such as cabbage ,lettuce,souse carrato etc.

The washing system is consist of three part

1.The main cylinder washing system is advantage of our peer 1. Cyclone flow+bubble washing shenghui Eddy type vegetable washing machine is adopt the advanced washing type: Cyclone flow+bubble washing feature: on the basis of the eddy type vegetable washing machine , we add the bubble design to washing products and the bottom of the tank have add the high pressure air tube, in order to avoid the traditional eddy vegetable washing .to make together phenomenon. But the high pressure air bubble washing can separate the together vegetable . 360 - degree flip five cycles massage type cleaning+16 high voltage adjustable bubble vibration cleaning, domestic initiative double clean wash the whole dish or chopped vegetables, chopped vegetables, sheng hui eddy current type dish washing machine can easily deal with, really achieve multi-usage!

2. No stop block design Internal cylinder body really smooth and round type design, vegetables inside the cylinder body of hydrocyclone cleaning process, only continuous bubble vibration on the surface of vegetables, no prominent in cylinder flow nozzle, avoiding multiple collision damage in the material cleaning, truly to wash vegetables, fruits and vegetables in the process of double protection, avoid a minor injury.

3. Ozone disinfection system Ozone is a broad spectrum of known, efficient, fast, safe, no secondary pollution gas sterilization, buds can kill bacteria, viruses, fungi, and the meat can be damaged bacilli tox

2>. Vibration transmission mechanism

1. The replacement of traditional conveyor belt conveyor, vibrating conveyor structure more simple, 5 times than traditional conveyor belt to reduce cleaning time use more convenient, more frugal artificial.

2. Contact with the material of the transport by punching hole design, effective separation material of ground clutter.

3. Adopt import suspension arm, to ensure continued stability of low frequency vibration in the process of conveying effective drain excess water, ensure material storage time, and provide predewatering function for the dehydration

3>.The secondary filter wedge precision filter, 1. positive 0.3 mm on the back of the 1.5 mm structure, positive filtering fine hair, mi, vegetables, opposite a wash clean, from the traditional planar mesh rinsed repeatedly not clean.The superior design for better filtering, more convenient to clean. Design

2. Automatic filling water, recycling water tank is equipped with automatic filling water device, the cleaning machine system, in addition to cleaning master cylinder of the main inlet, circulating water tank is equipped with vice filling water mouth, deputy hydrating mouth deal primarily with continuous material during the process of cleaning away moisture complement, when the water level to the expected level low, the automatic filling water, without artificial filling water, truly the cleaning process without human intervention. Customers can also be equipped with hair to complete cleaning miscellaneous institutions to assembly line.

High quality product of our factory.

FAQ:

1. What is best method of cleaning and maintenance the tool ?

 Answer: Wash with water, can also be appropriate to join detergent to clean it. Tool maintenance: after each tool is cleaned, it should to dry. And then you should coated it with cooking oil to keep the cutting tool lubrication and anti-oxidation.

2. What is the machine maintenance?

 Answer:Maintenance methods: machine should be added lubricant on the chain, the gear, bearing every six months, reduction gearbox should add oil.If the machine frequently used, it is recommended that each quarter will be maintenance once a year. If the machine with a belt, conveyor belt, spring, every quarter to check whether is flabby, found relaxation timely adjustment or replacement.

3. If the cutter is blunt, or oxidation with a yellow, how to do?

 Answer:If the cutter is blunt, you can grind the knife with grinding wheel or oilstone. If the cutter is oxidation with a yellow, you can use the scouring liquid to scrub, after washing you should add some cooking oil to protect the cutter.

4.How many hours a day the machine can continuously work?

 Answer:Generally a machine can 24 hours of uninterrupted work. But we suggest that the machine should stop for a while after work 4-5hours. It has a certain protection on the machine.

5. How to choose and buy vegetable cutter, why the price has a big difference?

 Answer: The vegetable cutter can be divided into melon cutting, vegetables cutting and fruitcutting. You can choose according to the material properties and yield. Some vegetable cutter price is high, there are magnetic control protection switch,.The cutting tool is easy to unpick and wash, the cutting effect is good, the blade material is good.

6. what are the advantages of ozone machine of vegetables cutter?

 Answer:Ozone is known as a broad-spectrum, efficient, fast, safe, no secondary pollution of the gas sterilization. It can kill bacteria spores, viruses, fungi and can be damaged botulinum toxin. It can exterminate the escherichia coli, staphylococcus aureus, salmonella, aspergillus flavus,fusarium, penicillium, black variant of bacillus, natural bacteria, neisseria gonorrhoeae and so on which attached to the fruits, vegetables, meat and other food . It also can kill the infectious virus, such as hepatitis B and also can remove the pesticide residue in fruits and vegetables and washing product residue toxicity.

7.Why choose shenghui's melon cleaning peeling machine?

 Answer:( 1).Structure: Is open design, easy to clean up with slag filter or slag boxes(2) The motor and reducer is separation design, to reduce the machine resonance, prolong service life and reducing gear wear and tear.(3)The both sides of the bearing is design by fully sealed , put an end to waste into the machine.(4) The material of brush is chosen high toughness bristles to reduce material loss(5)Circuit additional add to a overload protection device.(6)Lateral bearing retainer plate is thickening stainless steel plate, reducing machine vibration.(7)A discharging plate type is binding design, convenient

Why choose us:
1. 10734 m*m factory area, 12 years experience

2. Warranty date :one year, MOQ: one piece

3. ISO, CE & FDA certificated
4. Fast delivery and good service
5. All of our products have been strictly inspected before shipment.
6. Customers first, satisfying customers forever.

Transactions notes

 Trade description:

 We provide EXW of product in first quote in most cases, not containing shipping freight and taxes.

 After-sales description:

 1.Warranty of all product is one year, while consumable items, such as blades, knife tackles, motors and so on are beyond guarantee range

 2.We own professional engineering department and maintenance department, providing perfect after-service for customers.

 3.We're always in your service to deal with any problem occurs on machine you purchased from us.

 4.Any product sold from our company is attached with a warranty card and a product instruction.

Logistics description:

 Products delivered from our factory are required to be packed in standard wooden cases or cartons.

 Maintenance:

 1.After cleaning the cutters and accessories touching food, don't forget to dry liquid on surface before you re-assemble them on machine.

 2.Lubricate the axis of cutter with edible oil. Dismantle the blunt cutter and polishing it by abrasive stick.

 3.Add oil into the reducing gear-box every half a year; lubricate bearings, chains, gears inside machine with oil every quarter.

Attentions:

 1.Place machine on the flat ground; trundles of wheeled machine should be locked if there is need to move it.

 2.Make sure the feeding mouth equipped on machine should not be blocked by foreign objects,

 3.Connect the ground wire and suitable power box based on required voltage described on the labels.

 4.Keep hands away from the feeding mouth and outlet of machine when it is operating.

 5.Cut power first to stop running machine before dismantling and cleaning the parts.

 6.Be careful when dismantling and cleaning the cutter and other sharp part

 7.Circuitry part is forbidden to clean.
