Name: ZB-8L ZB-20 ZB-25 The vertical meat and vegetable chopping machines
company website:/

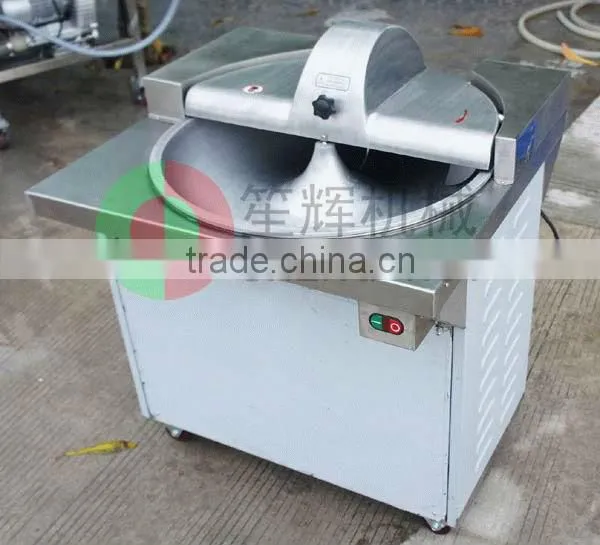

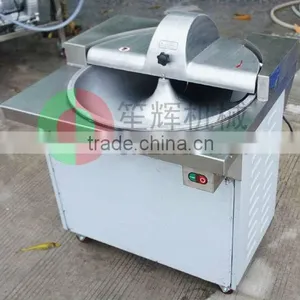

Product pictures:
ZB-8L
ZB-20ZB-25
Parameters:
Name: ZB-8L/20/25 The vertical meat and vegetable chopping machines
Type | Motor Power | Rated Voltage | Size | Bowl volume | Production capacity | Overall weight |
| ZB-8L | 0.75KW | 220V | 640*575*915MM | 8L | 120KG/H | 95KG |
| ZB-20 | 1.1kw | 380V | 775*710*940MM | 20L | 300KG/H | 126KG |
| ZB-25 | 2.2/2.8KW | 380V | 990*810*980MM | 25L | 300KG/H | 318KG |
Video introduction:
/u60/v_ODM3NTIzNzc.html#fromoutpvid=ODM3NTIzNzc
Description:
About: ZB-8L/20/25 The vertical meat and vegetable chopping machines
1.The chopping machine using the chopper, slicing up the role of high-speed rotation, the main raw material of meat, vegetables and other finely chopped cut into the meat or muddy flesh at the meantime other accessories stir for making fillings..
2.The craft of this chopping machine is advanced, the design is reasonable. Blade speed, speed and chop pan with a knife and cut the gap to achieve the most reasonable combination,it can ensure that the meat of cutting fineness, small fever, short cut time, maximum raised meat emulsifying effect, increase the elasticity of the product, production rate and shelf life.
Details:
FAQ:
1.What is the best cleaning method of the machine?
Answer: It wash with water and also can be appropriate to join detergent to clean. It should be note that electrical parts can't flush during cleaning.
2. What is the machine maintenance?
Answer:maintenance methods: machine should be added lubricant on the chain, the gear, bearing every six months, reduction gearbox should add oil. If the machine frequently used, it is recommended that each quarter will be maintenance once a year. If the machine with a belt, conveyor belt, spring, every quarter to check whether is flabby, found relaxation timely adjustment or replacement.
3. How many hours a day the machine can continuously work?
Answer:Generally a machine can 24 hours of uninterrupted work. But we suggest that the machine should stop for a while after working 4-5hours. It has a certain protection on the machine.
4. What are the egg washing machine way?
Answer: There is a useful spray type, warm water to wash the eggs, hair scrub to wash eggs,
5. what the machine include about the complete eggs of processing production line?
Answer: It contains the egg machine, washing machine, dry air drying machine, optical inspection machine, grading machine, out of the egg stage, can according to demand increased knock egg machine to separate from the yolk in the behind . You can choose different models according to the product requirements of the machine.
6.what is the best cleaning method of the machine?
Answer: It washing with water and also can be appropriate to join detergent to clean. It should be note that electrical parts can't flush during cleaning.
7.What is the machine maintenance ?
Answer: maintenance methods: machine should be added lubricant on the chain, the gear, bearing every six months, reduction gearbox should add oil. If the machine frequently used, it is recommended that each quarter will be maintenance once a year. If the machine with a belt, conveyor belt, spring, every quarter to check whether is flabby, found relaxation timely adjustment or replacement.
Why choose us:
1. 10734 m*m factory area, 12 years experience
2. Warranty date :one year, MOQ: one piece
3. ISO, CE & FDA certificated
4. Fast delivery and good service
5. All of our products have been strictly inspected before shipment.
6. Customers first, satisfying customers forever.
Transactions notes
Trade description:
We provide EXW of product in first quote in most cases, not containing shipping freight and taxes.
After-sales description:
1.Warranty of all product is one year, while consumable items, such as blades, knife tackles, motors and so on are beyond guarantee range
2.We own professional engineering department and maintenance department, providing perfect after-service for customers.
3.We’re always in your service to deal with any problem occurs on machine you purchased from us.
4.Any product sold from our company is attached with a warranty card and a product instruction.
Logistics description:
Products delivered from our factory are required to be packed in standard wooden cases or cartons.
Maintenance:
1.After cleaning the cutters and accessories touching food, don’t forget to dry liquid on surface before you re-assemble them on machine.
2.Lubricate the axis of cutter with edible oil. Dismantle the blunt cutter and polishing it by abrasive stick.
3.Add oil into the reducing gear-box every half a year; lubricate bearings, chains, gears inside machine with oil every quarter.
Attentions:
1.Place machine on the flat ground; trundles of wheeled machine should be locked if there is need to move it.
2.Make sure the feeding mouth equipped on machine should not be blocked by foreign objects,
3.Connect the ground wire and suitable power box based on required voltage described on the labels.
4.Keep hands away from the feeding mouth and outlet of machine when it is operating.
5.Cut power first to stop running machine before dismantling and cleaning the parts.
6.Be careful when dismantling and cleaning the cutter and other sharp part
7.Circuitry part is forbidden to clean.
Trading Flow:
Packing:
Transportation:
Payment and business card:
About our company:
Production processes:
Successful case:
Welcome to visit our factory at any time!!
....
