Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Pet Food Processing Machinery > Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine

Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine

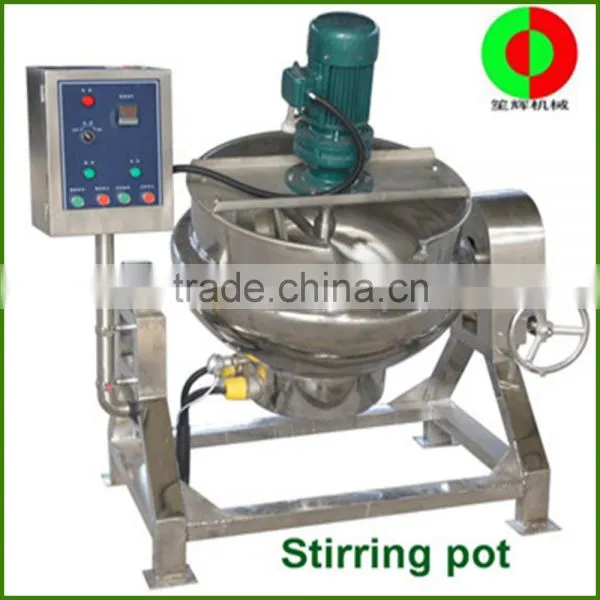

Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine photo-1

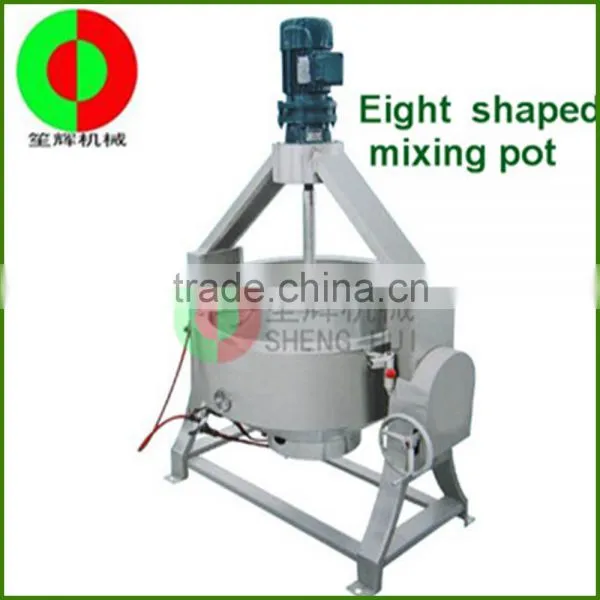

Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine photo-2
Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine photo-3

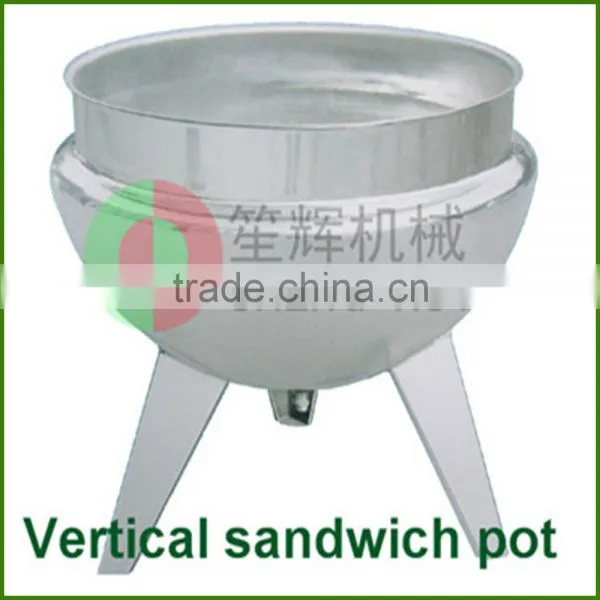

Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine photo-4

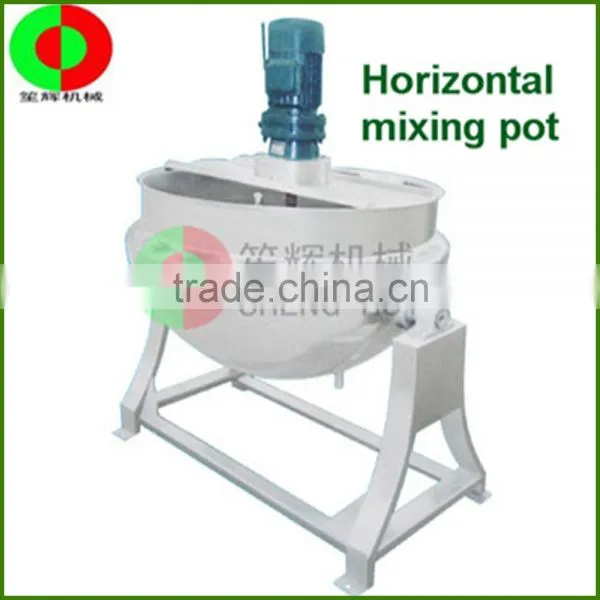

Multifunctional Large Electric Stirring Mixing Pot,commercial Fruit Automatic Sandwich Pot Machine photo-5
US$ 3,500 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shenghui
Model Number:
JCG-50L
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou/shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Shenghui
Model Number JCG-50L
Type Cooking Equipment
After-sales Service Provided Overseas third-party support available
Product Description

Sandwich pot processing is widely used in candy, pharmaceutical, dairy products, wine, cakes, sweets, drinks, canned food, food, also can be used in large restaurants or dining room, cooking soup, stew porridge, etc..

Model (JCG)
50L
100L
200L
300L
400L
500L
600L
1000L
Sandwich pot
caliber(mm)
◐600
◐700
◐800
◐900
◐1000
◐1100
◐1200
◐1400
deep(mm)
450
500
550
600
650
700
750
850
Volume(L)
50
100
20
300
400
500
600
100
Stirring motor power(KW)
0.75
1.1
1.1
1.5
1.5
1.5
2.2
2.2
Heat transfer area(㎡)
0.45
0.58
1.12
1.42
1.75
2
2.3
3.9
325 heat conduction oil(KG)
10
22
35
50
65
80
100
150
Electric heating tube power(KW)
18
18
18
30
30
30
36
60
Maximum operating temperature(℃)
Normal——250℃
Design pressure(MPa)
Working at room temperature
Outline dimension
length(mm)
650
750
850
950
1050
1150
1250
1550
width (mm)
650
750
850
950
1050
1150
1250
1550
height(mm)
1350
1400
1450
1500
1550
1550
1800
2000
Interface size
refueling oil
3/4"
level detection
3/4"
outfall
3/4"

My plant the sandwich pot can be customized according to the requirements, mainly by the following:
A: according to the structural form is divided into:
a. tilting,
b. fixed.
B: according to the process need to be divided into:
Stirring and not stirring. There are two kinds of mixing structure, one is the general mixing structure, and the other is scraping the edge of the mixing, scraping the material for

ptfe.

C: according to the heating method is divided into:
a. steam heating
b. electric heating (electromagnetic heating and electric heating pipe and heat-conducting oil furnace)
c.gas heating (natural gas and liquefied petroleum gas)
d. steam heating
D: according to the pot body material is divided into:
Inside and outside the pot body is 304, is 201 foot material
