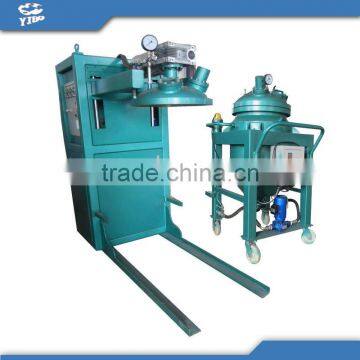

Help CenterResin Transfer Molding Machine Epoxy Mixer Machine for Insulators Made in China
Related Products
-
China Supplier Epoxy Mixer Machine for Producing InsulatorsNegotiableMOQ: 1 Unit -
China Supplier Resin Injection Machine With Vacuum Pump for InsulatorsNegotiableMOQ: 1 Unit
-
Professional Manufacturer of Vacuum Epoxy Resin Injection MachineNegotiableMOQ: 1 Set
-
Vacuum Stirring Mixing Device and Injection Vehicle for Epoxy Resin Clamp MachineNegotiableMOQ: 1 Unit
-
Factory Made Good Price Vacuum Degassing Equipment for APG ProcessUS$ 100 - 1,000MOQ: 1 Set
Specifications
Epoxy mixer machine1.Standard accessories for APG machine.
2.Flexible use.
3.Adopt the temperature control system.
Epoxy mixer machine , Injection Vehicle for Resin Transfer Molding Machine
Features
1.Compact structure, less floor space, flexible use.
2.The temperature control system has functions of temperature.
3.Display, automatic temperature limiting, safety protection and so on.
4.Use stirring and injection vehicle directly, it is convenient to use.
5.Adoption of oil heating device, with stable temperature and perfect reliability.
6.Adoption of frequency control of motor speed, is featured with large range of stirring speed, quick degassing, uniform mixing.
Reinforced Type
1.Adoption of video display for working condition, it is obvious and clear.
2.Adoption of digital display vacuum gauge, with accurate display.
3.Control box stand-alone unit.
4.Strengthened filter unit, significant effect.
5.Accident alarm, it adopts alarm lamp device.
6.Special cooling fan.
Main Technical Parameters
Item | Technical Parameters |
Stirring power | 3KW |
Stirring speed | 21~118r/min |
Vacuum pump power | 1.5kw, 2800r/min |
Worm gear screw jack | 0.25 |
Vacuum degree | 2 |
Allowing air force in pot | ≤0.6 |
Dimensions of mixing device | 2000*850*1950mm |
Weight of mixer device | 600KG |
Capacity of pot | 100L |
Heating power of pot | 3(220V) |
Dimensions of pot | 1000*810*1620mm |
Weight of pot | 350KG |
Corollary Equipment: Resin Transfer Molding Machine
Resin Transfer Molding Machine Operation Process Flow Chart
With Resin Transfer Molding Machine and Mold,
you can manufacture the following products
Resin mixing machine
Resin injection machine
