Help CenterVacuum Stirring Mixing Device and Injection Vehicle for Epoxy Resin Clamp Machine
Related Products
-
Factory Made Good Price Vacuum Degassing Equipment for APG ProcessUS$ 100 - 1,000MOQ: 1 Set -
Factory Made Good Price Vacuum Degassing Device for APG ProcessUS$ 100 - 1,000MOQ: 1 Set
-
Factory Made Good Price Vacuum Degassing Tank for APG ProcessUS$ 100 - 1,000MOQ: 1 Set
-
Factory Made Good Price Vacuum Degassing EquipmentUS$ 100 - 1,000MOQ: 1 Set
-
Factory Made Good Price Vacuum Degassing DeviceUS$ 100 - 1,000MOQ: 1 Set
Specifications
1.Injection vehicle2.Standard accessories for APG machine.
3.Flexible use.
4.Adopt the temperature control system.

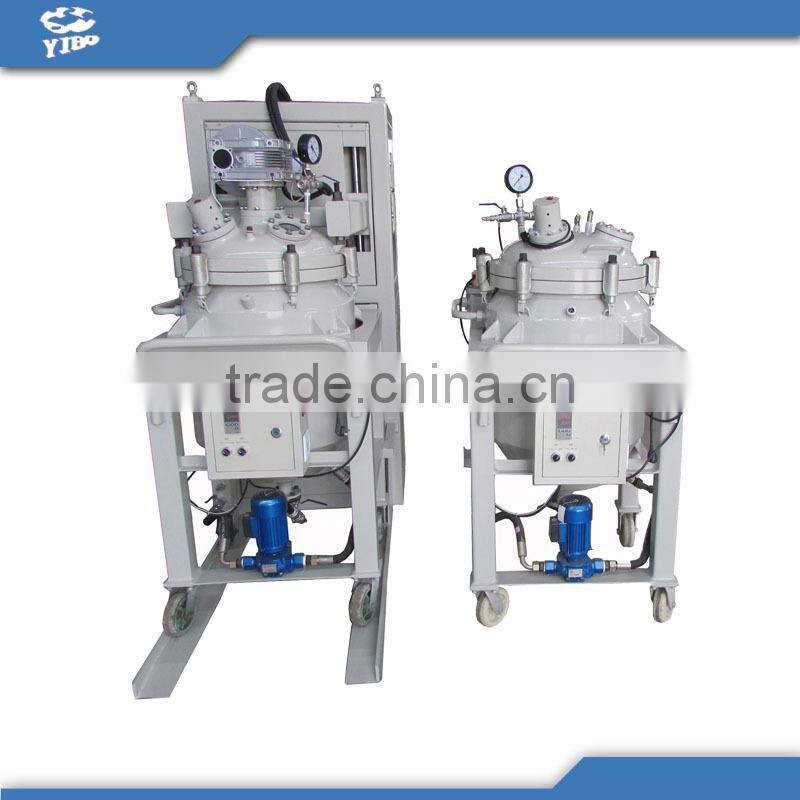

AH/AHE Vacuum stirring mixing device, injection vehicle for epoxy resin clamp machine
Features
1.Compact structure, less floor space, flexible use.
2.The temperature control system has functions of temperature.
3.Display, automatic temperature limiting, safety protection and so on.
4.Use stirring and injection vehicle directly, it is convenient to use.
5.Adoption of oil heating device, with stable temperature and perfect reliability.
6.Adoption of frequency control of motor speed, is featured with large range of stirring speed, quick degassing, uniform mixing.
Reinforced type
1.Adoption of video display for working condition, it is obvious and clear.
2.Adoption of digital display vacuum gauge, with accurate display.
3.Control box stand-alone unit.
4.Strengthened filter unit, significant effect.
5.Accident alarm, it adopts alarm lamp device.
6.Special cooling fan.
Main Technical Parameters
Serial No. |
Item |
Technical Parameters |
1 |
Stirring power |
3KW |
2 |
Stirring speed |
21~118r/min |
3 |
Vacuum pump power |
1.5kw, 2800r/min |
4 |
Worm gear screw jack |
0.25 |
5 |
Vacuum degree |
2 |
6 |
Allowing air force in pot |
≤0.6 |
7 |
Dimensions of mixing device |
2000*850*1950mm |
8 |
Weight of mixer device |
600KG |
9 |
Capacity of pot |
100L |
10 |
Heating power of pot |
3(220V) |
11 |
Dimensions of pot |
1000*810*1620mm |
12 |
Weight of pot |
350KG |
Corollary Equipment:APG Clamping Machine
APG Clamping Machine Operation Process Flow Chart
With APG Clamping Machine and Mold,
you can manufacture the following products
