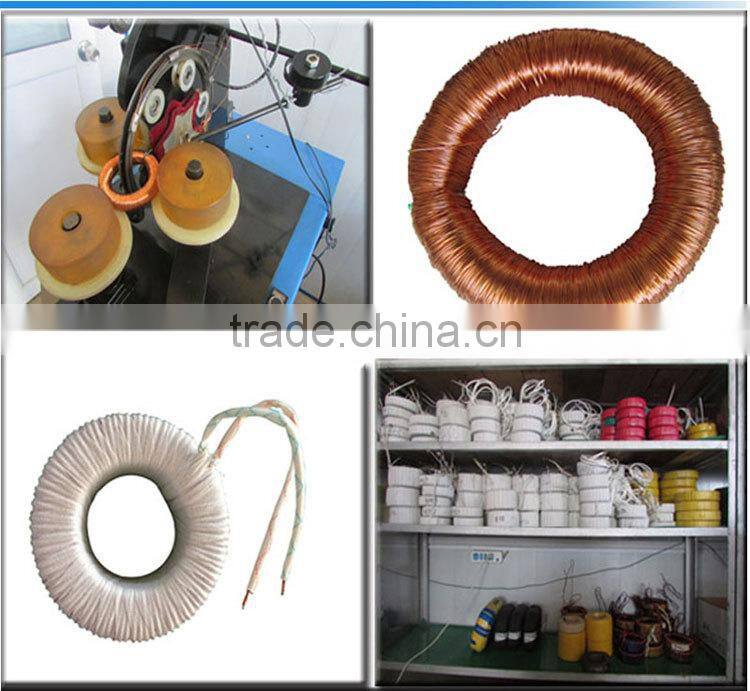

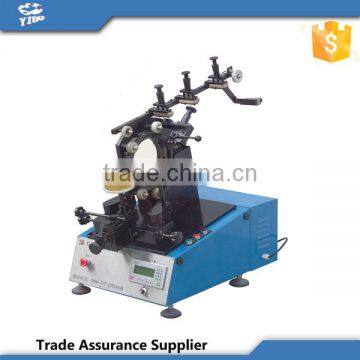

PLC control automatic CNC MINI /small Toroidal Winding Machine for toroid core YF-130A
YF-130A Automatic toroidal copper wire coil winding machine for current transformer is the new generation of winding equipment according to the power industry requirement and present manual winding technology of current transformer.
Main Technical Parameters Coil winding machine
Item | Technical Parameters |
Model | YF-130A |
Diameter range of windable electromagnetic wire | Φ0.3-1.5mm |
Min inner diameter of winded coils | Φ 30mm |
Max outer diameter of winded coils | Φ 130mm |
Max height of winded coils | 60mm |
Max winding rotation speed | 100rpm |
Machine tool power | 0.75KW |
Max outline size of machine tool | 500*800*1000mm |
Features
- PLC system,it has the machine tool wire storage automatic computation, automatic counting, automatic stop,stop memory and so on,and simplifies the operation greatly.
- Multi-wire winding mechanism,it realize the dual-wire or multi-wire multi-layer winding.
- High precision and wide application range.
- Low maintenance cost, energy saving and low noise.
- It can realize the continuous stepping stepless adjustment from 0.01mm.
- It is specially used for winding the circular coils of the small batch and many varieties.
Steps of Quality Control
- Strictly control the purchase standard of raw materials.
- With high precision equipments and rich experience workers to process components, make each process up to standard.
- Assembly process, recheck the quality of the components, the machine appearance etc.
- Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
Test & Debug Copper Wire Coil Winding Machine
Packaging:
With plastic film and wooden case.
YIBO Company:
- The only manufacturer who can supply one-stop complete solution service for electric industry of resin products such as CT,PT,insulators,SF6 shell.with best factory price and fast shipment.
- Professional rich experience engineers and research team, we offer free APG technique training.Our engineers have 23 years experience who serviced many years in ABB, We 100% promise to teach APG technique to you even you are newcomer.
- Have a line and lab special for producing CT and PT.we can winding samples and test in our lab.
- 24 hours service, email or call contact.
- Offer technology support before and after the sale.
- Provide high quality products.
- Provide after-sales service.
Frequently Asked Questions
Q:What’s information do you need before quote?
A:Max outer core diameter(OD),Min inner core diameter(ID),Core height,Wire diameter(All diameters are after winding); photo or drawing, and voltage.
Q:What is your delivery time?
A:Within 20 days after receipt of down payment.
Q:What is your payment terms?
A:Telegraphic transfer (T/T),Letter of credit(L/C) etc.
Q:What is the warranty period of the CNC winding machine?
A:One year for the machine, supply spare parts lifelong.
Q:How about your experience in this field?
A:We have more than 20 years experience in this field.
Q:Which countries or districts you products are exported to ?
A:Our products have been exported to America(RIDZ, ABB),Germany,Ukraine,
Italy,Macedonia,Colombia,Argentina,Brazil,Bangladesh,Malaysia,Vietnam,Indonesia,Korea,Taiwan,Thailand,Iran etc.
