Customized Are Accepted Cnc Automatic Winding Machine for PT & CT
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
YIBO
Model Number:
YQ-250C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen or your choice
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Types of Coil Winding Machine for Current Transformer YW-300BNegotiableMOQ: 1 Unit -
Professional Cnc Coil Winding Machine for Potential Transformer YQ-250CNegotiableMOQ: 1 Unit
-
Voltage Instrument Transformer Secondary Winding Coil Winding Machine YE-480DNegotiableMOQ: 1 Unit
-
Copper Wire Winding Machine for Transformer Coil YE-480DNegotiableMOQ: 1 Unit
-
YR-450J Automatic Coil Winding Machine for Potential TransformerUS$ 4,600 - 20,000MOQ: 1 Unit
Place of Origin
Jiangxi, China
Brand Name
YIBO
Model Number
YQ-250C
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Customized are accepted cnc automatic winding machine for PT & CT
Product Description
YQ-250C/250CM toroidal winding machine (parallel winding machine) for voltage transformer is a high-precision device independently researched and developed by our company according to the technology requirements of domestic voltage transformer industry.It can wind 0.5—550KV voltage transformer.
Main Technical Parameters CNC winding machine for PT
Item | Technical Parameters |
Model | YQ-250C |
Diameter of windable electromagnetic wire | Φ0.1-3.0mm |
Height of machine tool main shaft center | Φ 250mm |
Central distance between two tips | 600mm |
Winding rotation speed range | 0-1400rpm |
Power of machine tool | 1.5KW |
Input power of machine tool | 220V±10% |
Outline size of machine tool | 1500*600*1450mm |

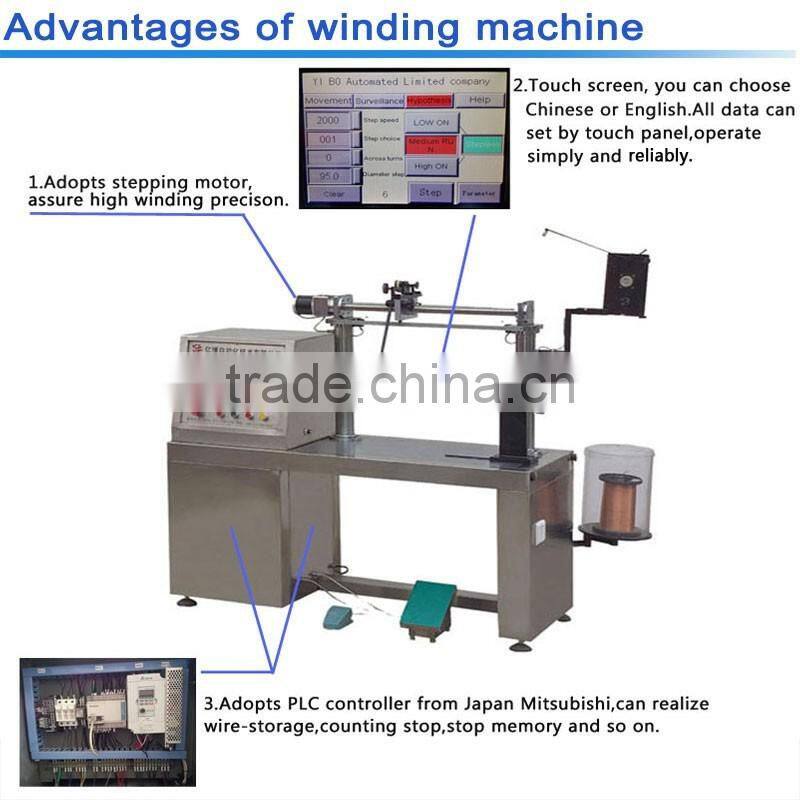

Features
- PLC system, with complete function and simple operation. It can perform the forward and reversal wingding and counting operation,power failure protection, wire disconnection protection, stop brake, setup of winding position, location and fault prompt.
- The speed control has two modes: automatic setup and foot switch speed adjustment.
- Its wire arranging operation is finished by the stepping motor and high precision ball spline ,the control precision can reach as high as 0.001mm.
- Wide process range, through changing the different clamp,it can wind the coils of various casting voltage transformers.
Quality Control
Steps of Quality Control
- Strictly control the purchase standard of raw materials.
- With high precision equipments and rich experience workers to process components, make each process up to standard.
- Assembly process, recheck the quality of the components, the machine appearance etc.
- Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
Test & Debug The CNC Winding Machine

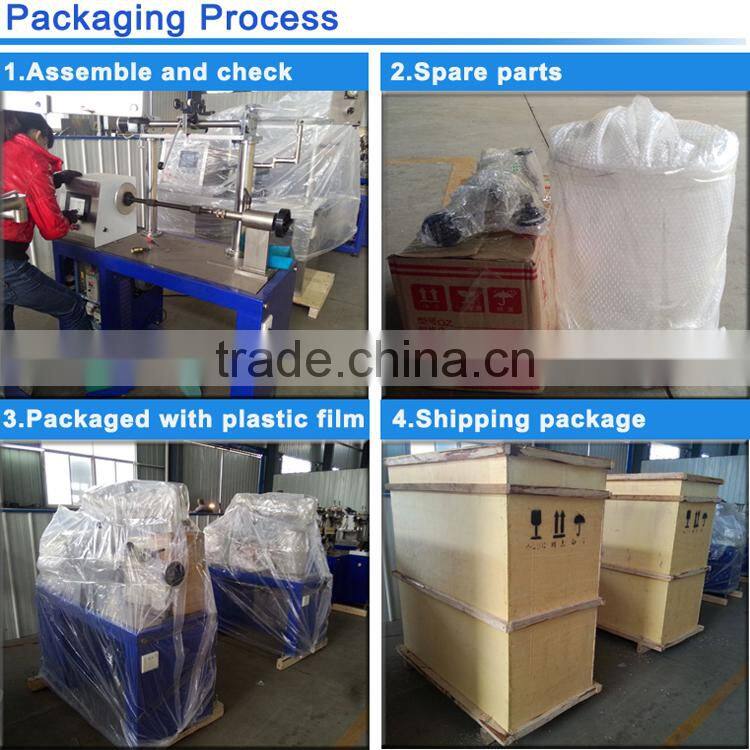

Packaging & Shipping
Packaging:
With plastic film and wooden case.
Company Information
YIBO Company:
- The only manufacturer who can supply one-stop complete solution service for electric industry of resin products such as CT,PT,insulators,SF6 shell.with best factory price and fast shipment.
- Professional rich experience engineers and research team, we offer free APG technique training.Our engineers have 23 years experience who serviced many years in ABB, We 100% promise to teach APG technique to you even you are newcomer.
- Have a line and lab special for producing CT and PT.we can winding samples and test in our lab.
YIBO Winding Machine
Our Services
- 24 hours service, email or call contact.
- Offer technology support before and after the sale.
- Provide high quality products.
- Provide after-sales service.
