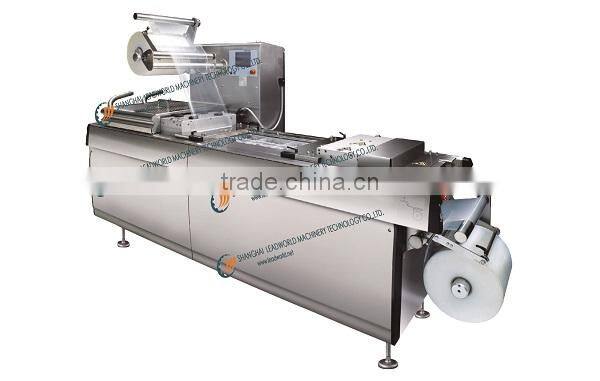

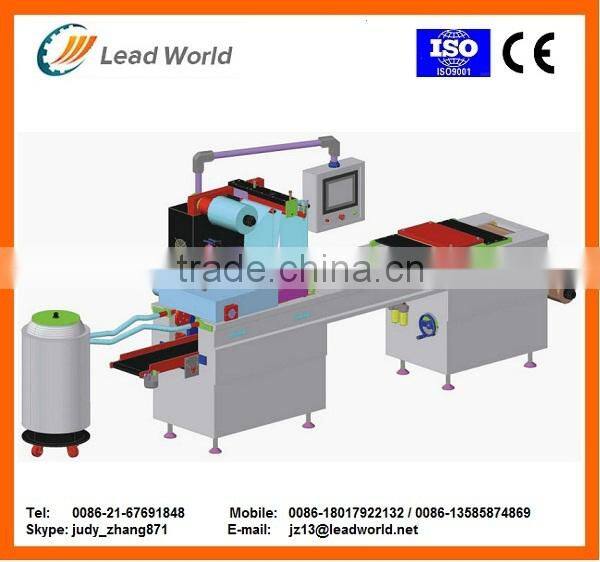

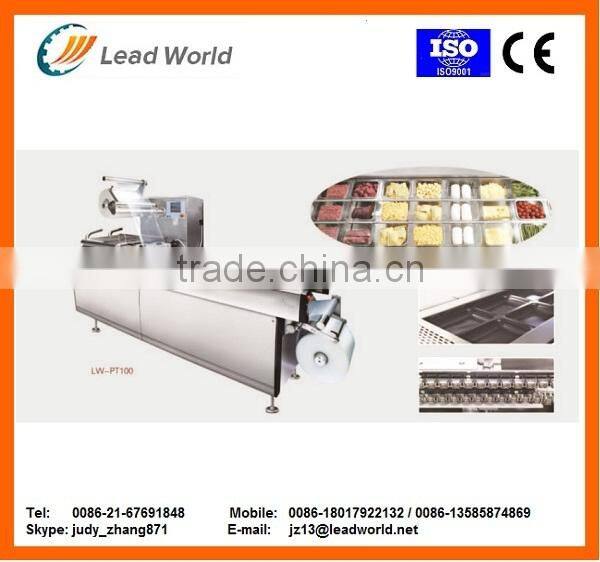

Leadworld Brand LW-PT420 Automatic Vacuum Packing Machine For Food Commercial
1. Vacuum Packing Machine Descripton
This machine can carry on, vacuum package . It can print ink automatically. The operation principle is shaping-vacuum-sealing-cutting.
2. Technical Parameters
|
Parameter Model |
LW-PT320 |
LW-PT420 |
LW-PT520 |
Packing Speed |
2-4 Cycles/Min |
2-4 Cycles/Min |
2-4 Cycles/Min |
Bottom Film Thickness |
≤0.8 mm |
≤0.8 mm |
≤0.8 mm |
Bottom Film Width |
322 mm |
422 mm |
522 mm |
Top Film Width |
285 mm |
385 mm |
485 mm |
Max.Forming Size |
300*400 mm |
400*400 mm |
500*400 mm |
Max.Forming Depth |
80 mm |
80 mm |
80 mm |
Power Supply |
AC 380V, 50Hz (3 phase) |
AC 380V, 50Hz (3 phase) |
AC 380V, 50Hz (3 phase) |
Air Consumption |
500 L/Min |
550 L/Min |
650 L/Min |
Air Supply |
≥0.6 MPa |
≥0.6 MPa |
≥0.6 MPa |
Loading Area Length |
≥1.5 m |
≥1.5 m |
≥1.5 m |
Power |
10 KW |
12 KW |
15 KW |
Dimension |
4500*1000*1700 mm |
5200*1100*1760 mm |
5200*1200*1760 mm |
Weight |
1300kg |
1500kg |
1800kg |
3. Main Components
PLC controller/touch screen |
Mutsubishi PLC - Japan |
servo motor |
Mutsubishi servo- Japan |
pneumatic component |
AIRTAC- Taiwan |
electrical component |
ABB- America, Mutsubishi- Japan |
drive |
Mutsubishi- Japan |
vacuum pump |
BUSCH – Germany111 type(the pumping air quantity is110m3 per hour) |
material for body machine |
Aluminum alloy, stainless steel |
cutting |
Horizontal cutting, cross cutting |
film width |
Width of upper film:293mm Width of lower film:322mm |
chain |
Imported chain |
We provide 12 month after-sale service and OEM services, we only use famous brand spareparts.
Thank you for your intesest in our machine, pls chat with me to talk about the detais and get our latest quotation.

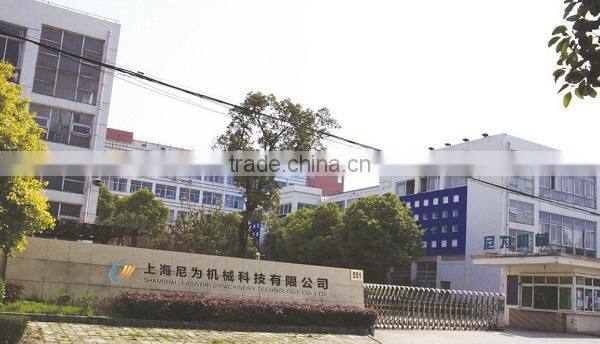

Your are warmly welcomed to visit our factory in Shanghai.
Have a nice day!
