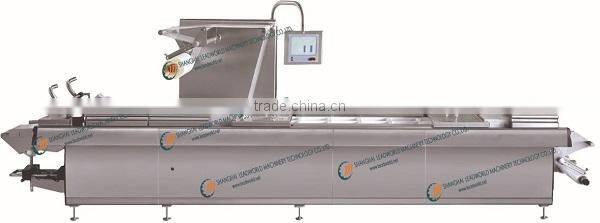

Shanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier

Shanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier photo-1
US$ 1,000 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity, Food
Packaging Type:
Bags, Film
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Commodity, Food
Packaging Type Bags, Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage AC 380V~50Hz
Power 1.5 Kw Price Thermoforming Machines
Place of Origin Shanghai, China
Brand Name Leadworld price thermoforming machines
Model Number LW-PT320
Dimension(L*W*H) 4500*1000*1700mm
Weight 1300kg
After-sales Service Provided Engineers available to service machinery overseas

Shanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier

Shanghai Leadworld LW-PT320 Price Thermoforming Machines SupplierShanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier

1. Vacuum Thermoforming Machine Descripton

   LW-320C full-automatic continuous stretching vacuum packing machine can carry on, vacuum package . It can print ink automatically. This machine takes with vacuum, carrying on vacuum package.

   The operation principle is shaping-vacuum-sealing-cutting.

2. Vacuum Thermoforming Machine Technical Parameters

Parameter

Model

LW-PT320

LW-PT420

LW-PT520

Packing Speed

2-4 Cycles/Min

2-4 Cycles/Min

2-4 Cycles/Min

Bottom Film Thickness

0.8 mm

0.8 mm

0.8 mm

Bottom Film Width

322 mm

422 mm

522 mm

Top Film Width

285 mm

385 mm

485 mm

Max.Forming Size

300*400 mm

400*400 mm

500*400 mm

Max.Forming Depth

80 mm

80 mm

80 mm

Power Supply

AC 380V, 50Hz

(3 phase)

AC 380V, 50Hz

(3 phase)

AC 380V, 50Hz

(3 phase)

Air Consumption

500 L/Min

550 L/Min

650 L/Min

Air Supply

0.6 MPa

0.6 MPa

0.6 MPa

Loading Area Length

1.5 m

1.5 m

1.5 m

Power

10 KW

1KW

1KW

Dimension

4500*1000*1700 mm

5200*1100*1760 mm

5200*1200*1760 mm

Weight

1300kg

1500kg

1800kg

3.  Main Components of Vacuum Thermoforming Machine

PLC controller/touch screen

Mutsubishi PLC - Japan

servo motor

Mutsubishi servo- Japan

pneumatic component

AIRTAC- Taiwan

electrical component

ABB- America, Mutsubishi- Japan

drive

Mutsubishi- Japan

vacuum pump

BUSCH – Germany111 type(the pumping air quantity is110m3 per hour)

material for body machine

Aluminum alloy, stainless steel

cutting

Horizontal cutting, cross cutting

film width

Width of upper film:293mm

Width of lower film:322mm

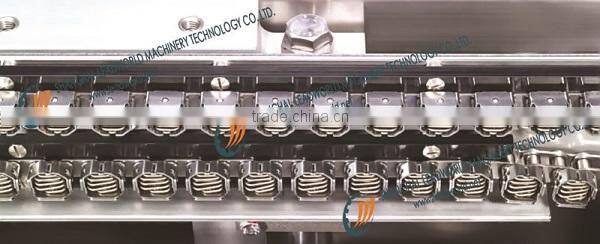

chain

Imported chain



Shanghai Leadworld LW-PT320 Price Thermoforming Machines SupplierShanghai Leadworld LW-PT320 Price Thermoforming Machines SupplierShanghai Leadworld LW-PT320 Price Thermoforming Machines SupplierShanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier

Shanghai Leadworld LW-PT320 Price Thermoforming Machines SupplierShanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier
