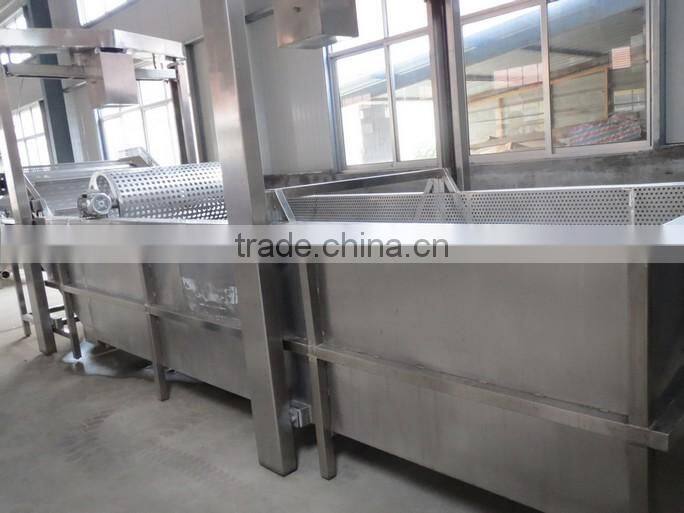

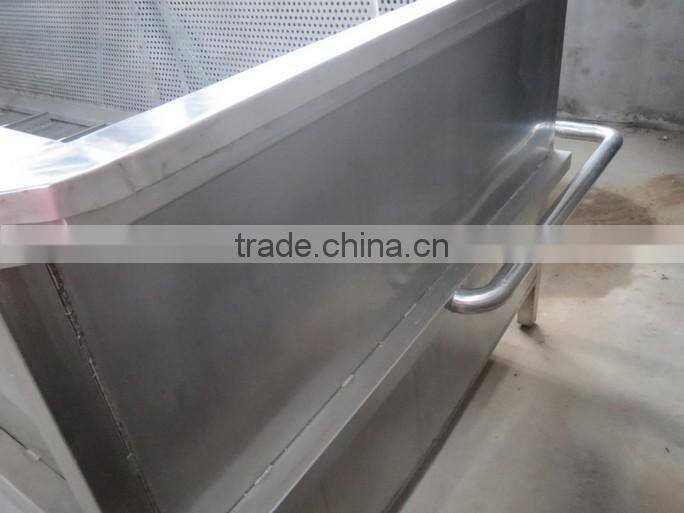

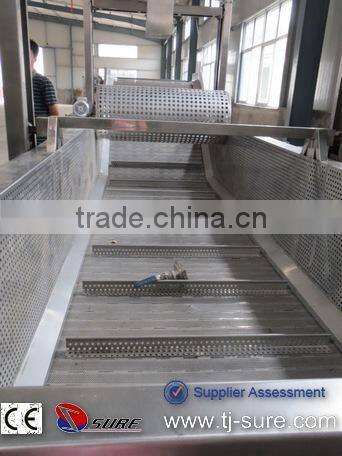

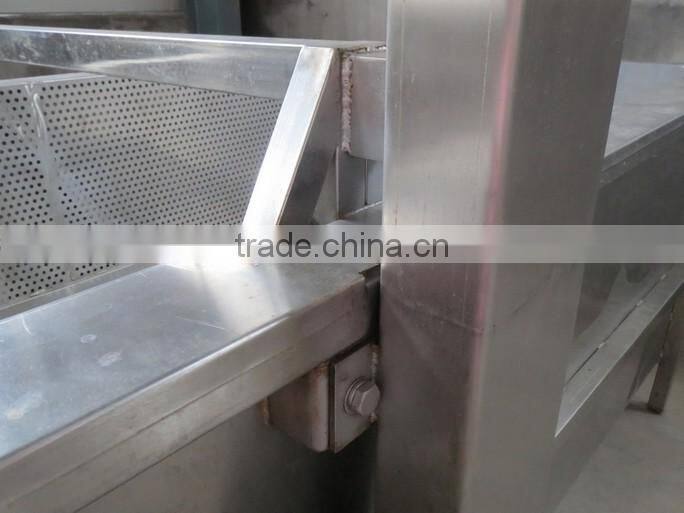

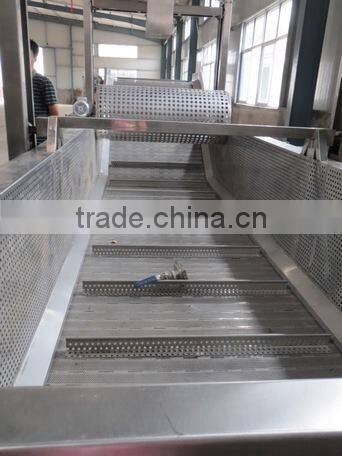

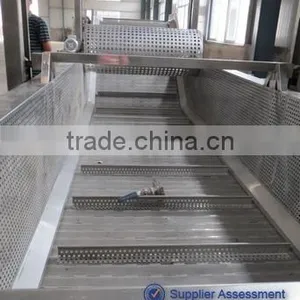

Frozen Meat Defrosting Machine
Application:
Mainly used for continuously defrosting of frozen meat, fish, segmentation of poultry meat and frozen fruits and vegetables.
Defrosting line uses stainless steel, it has beautiful appearance, and it is convenient to operate and maintain.
The line is designed scientifically, reduce labor intensity, and the human cost is more less, with high degree of automation.
The line is in full compliance with the GMP, HACCP certification requirements, sanitation and high efficiency, so it is the rational euipmet in the food processing industry.
The size of defrosting line:
Defrosting tank (L * W * H): 8000*1600*3000 mm (Inner width is 1200mm)
Circular tank (mm): 3000*900*800
Defrosting time:30-40 min
The main parts of machine:
Serial number | Name | Type | Material |
1 | Steel plate | Thickness:3mm | SUS304 |
2 | The stainless steel mesh belt/chain plate | 1200# | SUS304 |
3 | The stainless steel pipe | 5×50×3mm | SUS304 |
4 | Frequency converter |
|
|
5 | Motor reducer |
|
|
6 | Water circulating pump |
|
|
7 | Temperature sensor |
|
|
8 | Steam control valve |
|
|
9 | Manual control valve |
| SUS304 |
10 | High pressure pump |
|
|
11 | Reticular belt support | 30×3mm Angle steel | SUS304 |
12 | Surfing pipeline | φ18×2mm Circular pipe | SUS304 |
13 | Bearing |
| SUS304 |
14 | Air pump | Cast aluminum |
|
14 | Control system |
|
|
SURE is a professional supplier of food processing machinery. We are engaged in providing not only individual equipment, but also the whole production line and processing craft.
We can do OEM as customers kinds requirements. Our objective is high efficiency service for the food enterprises and win the future together.
We are SURE.
