Fish Smoking Process Smoker Machine

Tianjin Sure International Trading Co., Ltd.
Fish Smoking Process Smoker Machine thumbnail-1
Fish Smoking Process Smoker Machine thumbnail-2
Fish Smoking Process Smoker Machine thumbnail-3
Fish Smoking Process Smoker Machine photo-1
Fish Smoking Process Smoker Machine photo-2
Fish Smoking Process Smoker Machine photo-3
US$ 1,000 - 99,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
SURE
Model Number:
SR-YXL
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Tianjin, China
Brand Name SURE
Model Number SR-YXL
Type Meat Processing Machinery
After-sales Service Provided Engineers available to service machinery overseas

Full-automatic/Semi-automatic Smoke Oven





Smoke Oven is one of the necessary equipments in the process of meat cooking, with the function of boiling, drying, roasting, smoking, air exhausting, cleaning and auto protection function and so on.



Characteristics:



1.  Adopted PLC and computerized auto control;



2.  All kinds of parameters, such as temperature, time, humidity, can be shown in one control interface, the running state can be in real-time monitored;



3.  100 different recipes can be stored, one or more(less than 9) can be used in the processing;



4.  Can be connected with computer and printer, realizing the function of remote controlling and printing out the recipes, humidity and temperature curve;



5.  Unique air circulation system, which ensures the consistency of temperature and humidity in the products processing, has the characteristic of color homogeneity;



6.  Adopted stainless steel of high quality, inner and outer all-welded structure;



7.  External smoking system; the working state of smoke generator can regulated by control system;



8.  External steam heating or electric heating system;



9.  Spraying system;



10. Can choose water circulation cleaning equipment;



11. Adopted modularization structure. Single or double row arrangement can be provided.

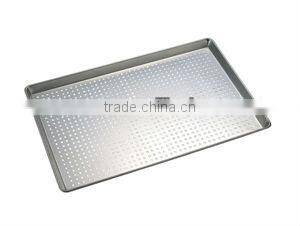

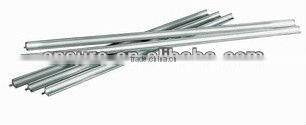

Detailed Images



Fish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine





Technical Parameters



Technical Table:





Single Row

Double Row

Trolley Amount

1

2

3

4

2×1

2×2

2×3

2×4

Material Input (kg)

250

500

750

1000

500

1000

1500

2000

Motor Power (kw)

4

8

12

16

8

16

24

32

Electric Heating Power (kw)

30

60

90

120

60

120

180

240

Steam Consumption (kg/h)

75

150

225

300

150

300

450

600

Steam Pressure   of High Pressure (mpa)

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

0.3-0.6

Steam Pressure   of Low Pressure (mpa)

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

0.1-0.2

High Pressure Temperature (°C)

<100

<100



<100

<100

<100

<100

<100

<100

Low Pressure Temperature (°C)

<85

<85

<85

<85

<85

<85

<85

<85

Water Pressure (mpa)

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

Dimension

Length (mm)

1360

2360

3430

4490

1360

2360

3430

4490

Width (mm)

1510

1510

1510

1510

2950

2950

2950

2950

Height (mm)

3000

3000

3000

3000

3000

3000

3000

3000

Weight (kg)

1800

2500

3200

3900

3400

4800

6200

7600





Fish Smoking Process Smoker MachineFish Smoking Process Smoker Machine



Fish Smoking Process Smoker Machine





Certifications



SURE CERTIFICATION:





Packaging & Shipping

 Fish Smoking Process Smoker Machine



Company Information



Fish Smoking Process Smoker Machine



SURE is a professional supplier of food processing machinery. We are engaged in providing not only individual equipment, but also the whole production line and processing craft.



Our main products and services include frying systems, cooling and IQF systems, weighting and packing systems, meat processing machines, dumpling processing lines, fish processing lines, shrimp processing lines, fruits & vegetables processing lines, site installation and commissioning services, processing craft consulting services.



We can do OEM as customers kinds requirements. Our objective is high efficiency service for the food enterprises and win the future together.



We are SURE.
