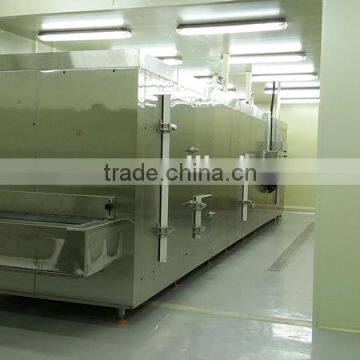

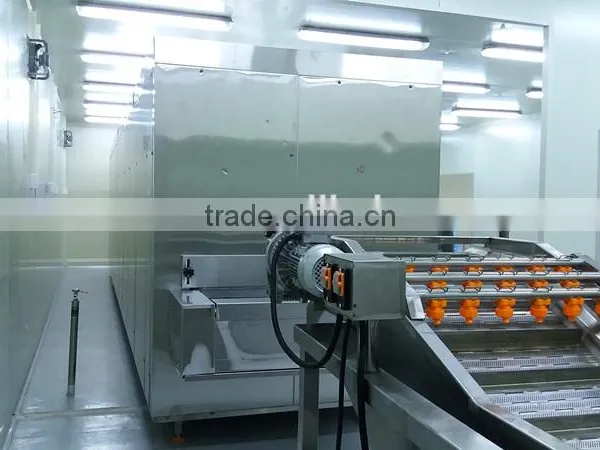

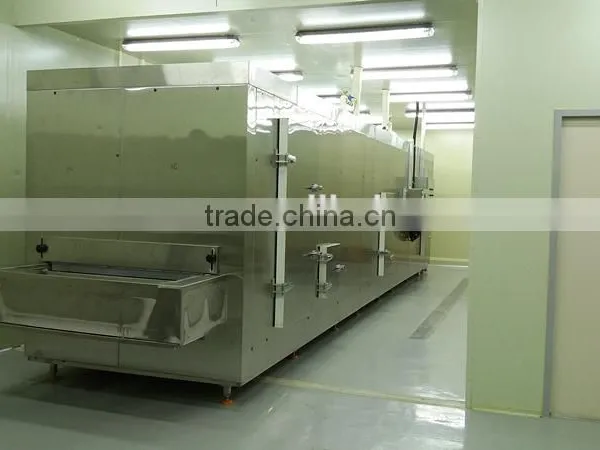

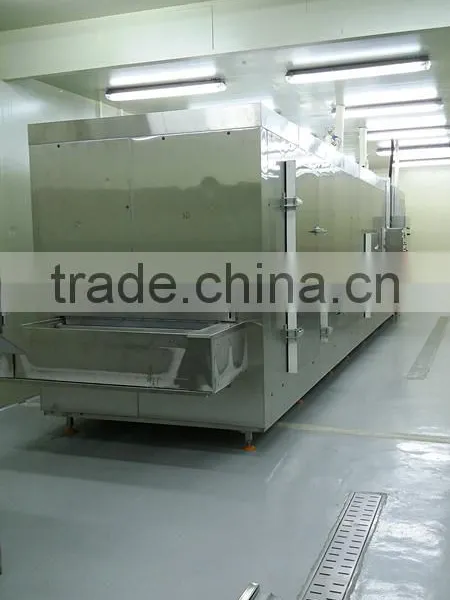

Fish Tunnel Freezer

1.

Stainless Steel Conveyor Belt:

We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.

2. Insulation Panels:

PUF sandwich panels, 150mm thick with 42kg/m³ density, laminated both sides by stainless steel sheet.

3. Access  Door:

The doors we adopted are specially used in low temperature environment and equipped with frame heating system for each.

4. Driving System:

Speed reducer + Variable speed controller

5. Evaporator and Fan:

Both the tubes and fins of evaporators are made of aluminum alloy. The large fins and different fin pitches can assure the perfect effect of heat exchange.

The air-box of axial fan is made of stainless steel, while fan blades are made of aluminum alloy.

6. Water Discharging Design:

Full welded stainless steel water discharging plate will be installed on top of floor panels. It will bring inside water out of cabinet through many stainless steel draining pipes.

7. Inlet & Outlet device:

Both the Inlet & Outlet devices are made of food grade stainless steel.

8. Electric Controlling System:

We adopt Schneider or Siemens electric components
