Specifications
1. suitable for cups filling and sealing2. stainless steel
3. easy to operate
4. OEM support, Kangking brand

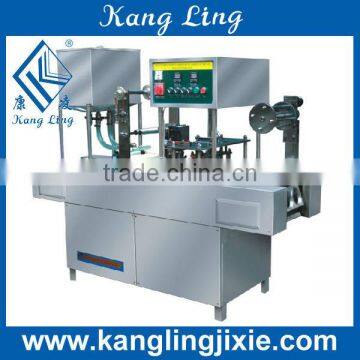

GD series Fill Seal Machine
GD Series Automatic Cup Fill Seal Machine equips the different pump applicable for the different paste beverage, such as milk, ice creams, jam, and so on. The machine seals cups by the relevant compound film. It’s and ideally fill-seal machine.
TECHNICAL SPECIFICATIONS
Model | GD2-16 | GD3-16 | GD4-16 |
Speed(pcs/h) | 1800 | 2700 | 3600 |
Filling Content | 50-360ml | 50-360ml | 50-360ml |
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Power | 2.5kw | 3kw | 4kw |
Hot-Sealing Temperature | 180°C - 240°C | 180°C - 240°C | 180°C - 240°C |
Compound Film Thickness | 0.08mm-0.11mm | 0.08mm-0.11mm | 0.08mm-0.11mm |
Dimension | 1900x650x1450mm | 2400x750x1450mm | 2500x800x1450mm |
Weight | 350kgs | 500kgs | 800kgs |
MAINTENANCE
It’s important that vindicate the machine strictly for insure it works normally and let it work for a long time.
1) Please add a little lube every day for retarder, chain, axletree, sliding bearing.
2) Please clean the raw material case before the machine works in order to insure the sanitation.
3) Don’t damnify the film’s surface and keeps it clean.
4) Person specially assigned for checking the machine regular.
