Home > Products > Die Cutting Machine > CH-250 Hot sale sticker barcode label die cutting machine

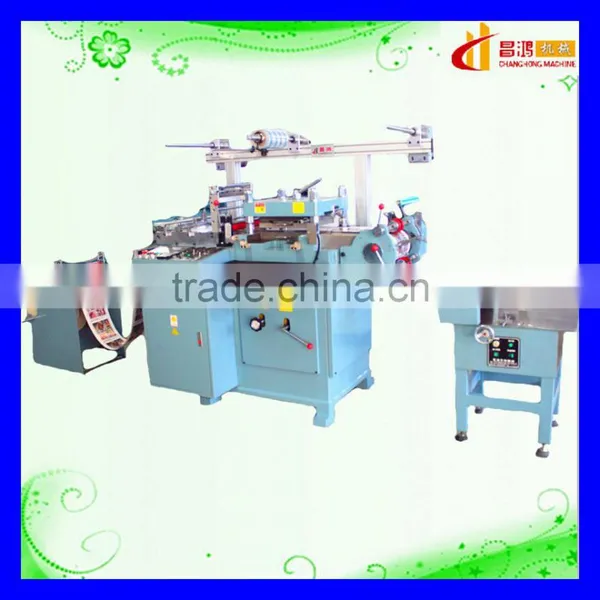

CH-250 Hot sale sticker barcode label die cutting machine
- 30 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
- Infrared and circulating air dryer Printing Ink Tunnel Oven Machine
- big size Automatic screen printing machine for sheet with automatic blanking
- Printing Ink Tunnel Oven Machine
- Ozone-free energy saving and environmental protection LED uv curing machines
- Round/Plane Surface UV Drying Machine
- Bottle UV Drying Machine
Product Details
Condition: | New | Type: | Paper Cutting Machine | Automatic Grade: | Automatic |
Place of Origin: | Guangdong, China | Brand Name: | Changhong | Model Number: | CH-250 Single Die Cutting Machine |
Voltage: | 220V | Power(W): | 2.2KW | Dimension(L*W*H): | 1600x1200x1600mm |
Weight: | 1500kg | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CH-250 Hot sale sticker barcode label die cutting machine
1. Specifications:
Specification | CH-320 | CH-250 | CH-210 |
Max. Film Width (mm) | 340 | 270 | 230 |
Max Die Cutting Area(mm*mm) | 310*280 | 260*210 | 210*180 |
Max Die Cutting Speed (round/minute) | 30~200 | 30~200 | 30~200 |
Die Cutting Precision (mm) | ±0.05 | ±0.05 | ±0.05 |
Main Driver Motor power (KW) | 3.7 | 2.2 | 2.2 |
Rated Voltage(V) | 220 | 220 | 220 |
Size of the Machine(mm) | 1600*1500*1600 | 1600*1300*1600 | 1600*1200*1600 |
2. Feature:
1.With CNC driving system and accurate electic eye tracking, simple operation,high efficiency,energy saving and low noise.
2.With printing, hot stamping, laminating and die-cutting complete function and stable performance.
3.Easy to maintain, automatic supply lubrication system to prevent machine wearing out, suitable for high speed operation.
4.Can set any pieces of paper, machine will remind you when it reaches setting number.
5.With Japanese servo motor, CNC driving, high printing precision(can make to 0.03mm), eye tracking can multiply print.
6.Two feeding types.
3. Our machine's die cutting labels:
4. Standard Configuration:
Feeding Machine | 1 set |
Cutting Machine | 1 set |
Main Machine | 1 set |
Standard Tools | 1 set |
Die Cutting Upper/Lower Board | 1 set/each |
5. Application:
Die cutting machine is useful for self-adhesive label, Dacron film, laser anti-false label, Punching and mulity compounding on electronic industry, PET, PP, PVC, Viscose, non-woven, insulation materials, shielding materials...etc.
Our products are all packed with strong fumigated wooden case with film and canvas cover and strong container, all examed by 3 groups of inspection teams before packing. It usually takes about 30-40 days to delivery, we will give you every detail to assure you our delivery process.
Payment Terms | T/T, L/C, Western Union, Money Gram, Cash |
Supply Ability | 10 sets/month |
Delivery Time | 30-40 days |
FOB Port | Shenzhen |
1. Factory:
We have 3 floors of total over 3000 square meters factory, first floor is assembly workshop, second floor is manufacturing workshop, third floor is storage.
2. Office:
We have both experience international and domestic sales team, Design apartment, Production apartment, QC apartment and HR apartment.
3. Our certificates:
Our products highly meeting CNCA's requirements of ISO9001:2008.
4. Our Team:
We are a family of 50 young and experienced members, we also love to go out for climbing, swimming, playing games and party...etc.
5. Our Culture:
Our culture is"Truth-seeking for high quality and low cost, Customers first and market-oriented, Respecting and learning for love".
6. Contact us:
Amily Zhang (sales)
Skype: live:135 6002 5355
Wechat: 135 6002 5355
Cell Phone: 86-135 6002 5355
Office Phone: 86-755-2898 6010
Fax: 86-755-2898 6853
Website: http://cnchlm.en.china.cn
/
