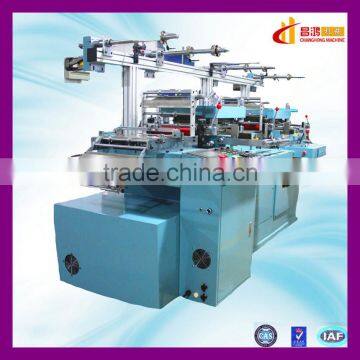

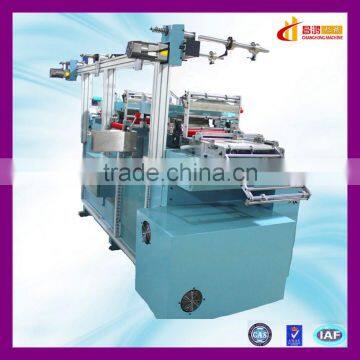

CH-350 roll to sheet label paper die cutting machine with stamping
1. Specifications:
| Specification | CH-350 | CH-250 | CH-210 |
| Max. Film Width (mm) | 360 | 270 | 230 |
| Max Die Cutting Area(mm*mm) | 350*280 | 260*210 | 210*180 |
| Max Die Cutting Speed (round/minute) | 30~200 | 30~200 | 30~200 |
| Die Cutting Precision (mm) | ±0.05 | ±0.05 | ±0.05 |
| Main Driver Motor power (KW) | 3.7 | 2.2 | 2.2 |
| Rated Voltage(V) | 220 | 220 | 220 |
| Size of the Machine(mm) | 2500*1600*1600 | 2500*1300*1500 | 2500*1200*1500 |
2. Feature:
1.With CNC driving system and accurate electic eye tracking, simple operation,high efficiency,energy saving and low noise.
2.With printing, hot stamping, laminating and die-cutting complete function and stable performance.
3.Easy to maintain, automatic supply lubrication system to prevent machine wearing out, suitable for high speed operation.
4.Can set any pieces of paper, machine will remind you when it reaches setting number.
5.With Japanese servo motor, CNC driving, high printing precision(can make to 0.03mm), eye tracking can multiply print.
6.Two feeding types.
3. Standard Configuration:
| Feeding Machine | 1 set |
| Cutting Machine | 1 set |
| Main Machine | 1 set |
| Standard Tools | 1 set |
| Die Cutting Upper/Lower Board | 1 set/each |
4. Application:
Die cutting machine is useful for self-adhesive label, Dacron film, laser anti-false label, Punching and mulity compounding on electronic industry, PET, PP, PVC, Viscose, non-woven, insulation materials, shielding materials...etc.
Our products are all packed with strong fumigated wooden case with film and canvas cover and strong container, all examed by 3 groups of inspection teams before packing. It usually takes about 30-40 days to delivery, we will give you every detail to assure you our delivery process.
Payment Terms | T/T, L/C, Western Union, Money Gram, Cash |
| Supply Ability | 10 sets/month |
| Delivery Time | 30-40 days |
| FOB Port | Shenzhen |
1. Factory:
We have 3 floors of total over 3000 square meters factory, first floor is assembly workshop, second floor is manufacturing workshop, third floor is storage.
2. Office:
We have both experience international and domestic sales team, Design apartment, Production apartment, QC apartment and HR apartment.
3. Our certificates:
Our products highly meeting CNCA's requirements of ISO9001:2008.
4. Our Team:
We are a family of 50 young and experienced members, we truth-seeking for high quality and low cost, put customers first, respect and learn for love.
5. Contact us:
Harick Zhong (sales manager)
Skype: live:zhq_20
Wechat: harick86
Cell Phone: 86-158 1863 1840
Office Phone: 86-755-2898 6010
Fax: 86-755-2898 6853
Website: http://cnchlm.en.china.cn
/
