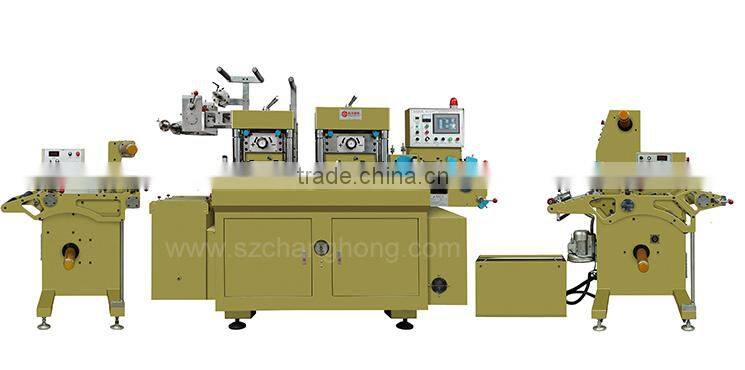

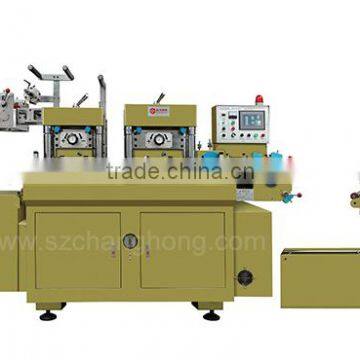

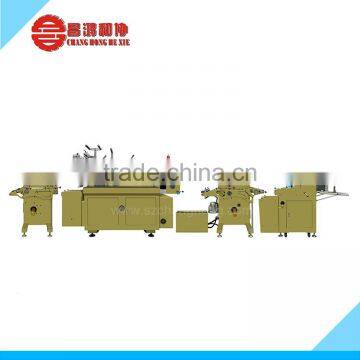

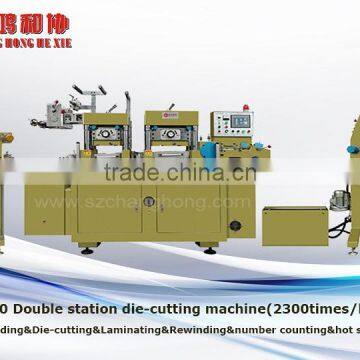

CH-320 High speed double die-cutting printing machine
Feature:
·With CNC servo driving system and accurate electic eye tracking, simple operation,high efficiency,energy saving and low noise.
·With printing, hot stamping, laminating and die-cutting complete function and stable performance.
·Easy to maintain, automatic supply lubrication system to prevent machine wearing out, suitable for high speed operation.
·Can set any pieces of paper, machine will remind you when it reaches setting number.
·With Japanese servo motor, CNC driving, high printing precision(can make to 0.03mm), eye tracking can multiply print.
·Two feeding types.
Specification:
| Standard configurations | |
| Feeding machine | 1set |
| Swiri type tension case | 1set |
| Reverse hot stamping unit/hot stamping plate | 1piece |
| Laminated unit | 1set |
| Die cutting upper/lower board | 1set/each |
| Secondary photo cell unit | 1set |
| Wheel press unit | 1set |
| Corundum paper cylinder unit | 1set |
| Horizontal rewinding box | 1piece |
| Horizontal rewinding | 1set |
| Humanized operating platform | 1piece |
| Specifications | |
| Model | 320 |
| Max. wed width | 330mm |
| Max. paper length | 260mm/left station 360mm/right station |
| Voltage/current | 380V/32A(3phrase) |
| Gross power | 15kw |
| Machine weight | ≈4000kg |
| Machine speed | 23000time/h |
| Reverse hot stamping speed | 38meter/minute |
| Applicable Blade Height | 7mm-23mm |
| Die cutting precision | ±0.05mm |
| Cushion thikness | 0.5mm-3mm |
| Application material:roll web | <350g |
| Machine size | 5600*1400*1800mm |
| Max unwinding diameter | 600mm |
| Max winding diameter | 600mm |
| Max die cutting size | 360*315 |
Standard Equitments:
Front Template(1 pcs)
Bottom Template(1 pcs)
Tools(1 set)
Paper Feeder(1 set)
Paper Cutting Machin(1 set)
Suitable For:
Die cutting on self-adhesive trademark paper, Dacron film, laser anti-false trademark. Punching and mulity compounding on electronic industry, PET, PP, PVC, Viscose, non-woven, insulation materials, shielding materials.
Our Services:
Engineers are available for overseas installation and training as well as after-sales service.
