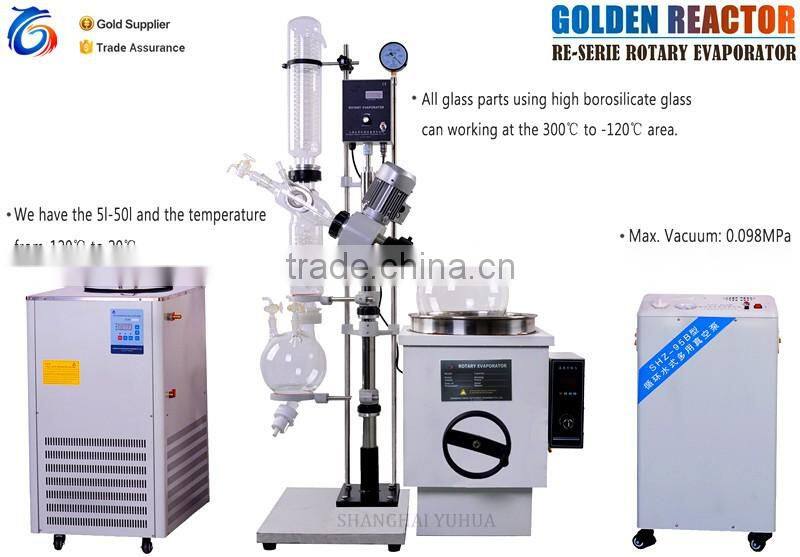

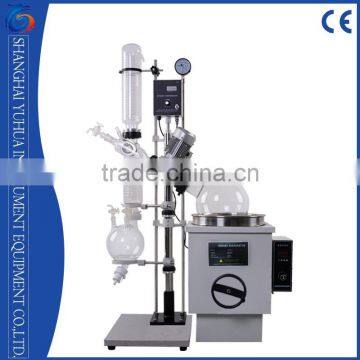

Pharmaceutical Digital Rotary Evaporator With Constant Temp Water Bath

Pharmaceutical Digital Rotary Evaporator With Constant Temp Water Bath thumbnail-1
Pharmaceutical Digital Rotary Evaporator With Constant Temp Water Bath photo-1
US$ 1,250 - 1,850 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Yuhua Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Distillation
Power Source Electric
Process Vacuum Distillation
Place of Origin Shanghai, China
Brand Name YUHUA
Model Number RE-1002
Voltage 220V/50HZ
Power(W) 180W
Dimension(L*W*H) 1450*500*480mm
Weight 150kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

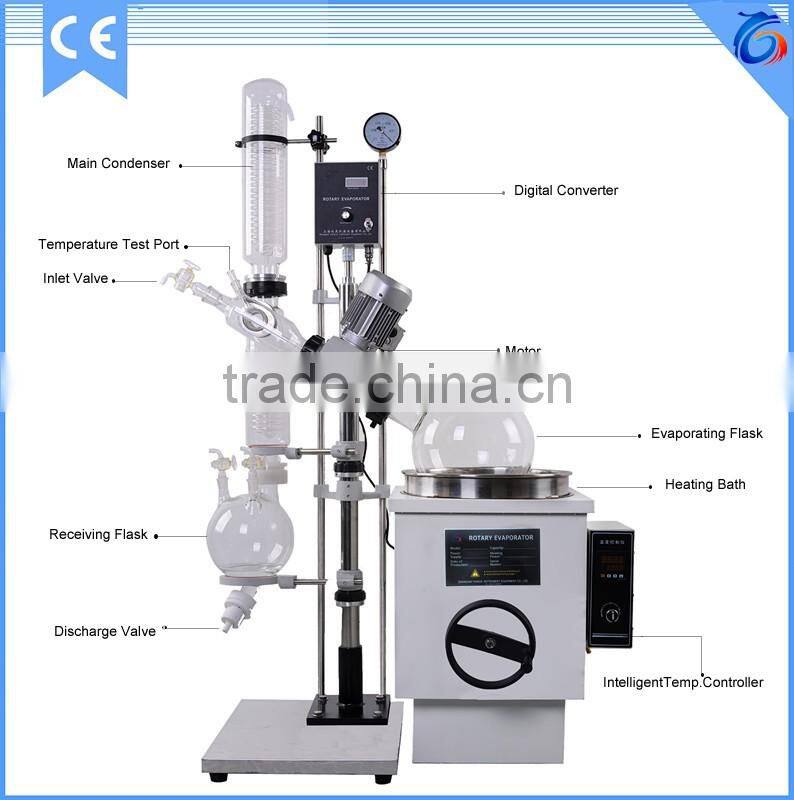

Introduction of Pharmaceutical Digital Rotary Evaporator

Rotary evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the liquid material to get your target solvent.
Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc.
Rotary Evaporator is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.

Features of Pharmaceutical Digital Rotary Evaporator

1. GG-17 (3.3) high borosilicate glass, with good performance
2. Excellent sealing performance, Ultimate vacuum reached pump vacuum rate 133pa
3. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional PTFE（Teflon）discharge, no pollution to solvent
4. System vacuum does not drop during discharging shift. Sample received keeps consistent quality.
5. PTFE (Teflon) no-liquid -accumulation discharging valve, no-dead-angle reaction, complete PTFE valve, anti-corrosion.
6. Ex-motor optional

Model
RE-1002
Rotary flask(L)
10
Receiving flask(L)
5
Evaporating speed(H2O)
3L/h
Discharge
PTFE(Teflon)Bottom Discharge Valve
Motor power(W)
180
Rotation speed(rpm)
3~110
Bath power（KW）
3
Power
220V,50/60Hz
Bath temp range
Water:RT~90°C    Oil:RT~200°C
Glass material
GG-17(3.3)High Borosilicate Glass
Reachable vacuum rate
<133Pa(1.33mbar,1Torr)
Working Principle

Rotary evaporators are distillation units that incorporate an effecient condenser with a rotary flask system.As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the inner surface.This gives a very large surface area for                      evaporation that is effected by heating from the accessory water or oil bath.
Detailed Images

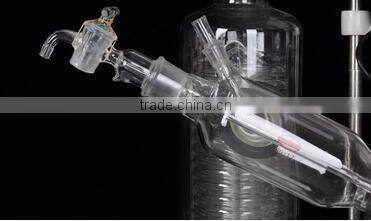

1、Charging Valve


New structure and material applier, is able to offer purely clean charging process and durable use experience.

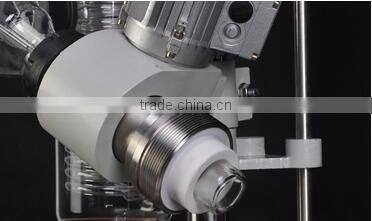

2、Anti-corrosion&wearable sealing system

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133pa. 90% user don’t need to replace rotary seal in one year.




3、PTFE discharging valve


PTFE structure, which is anti-corrosion, no vacuum grease, no pollution to solvent received.

We have 500ml~50l rotary evaporator.According to your requirements,we can provide you the suitable one.

Matched Equipment

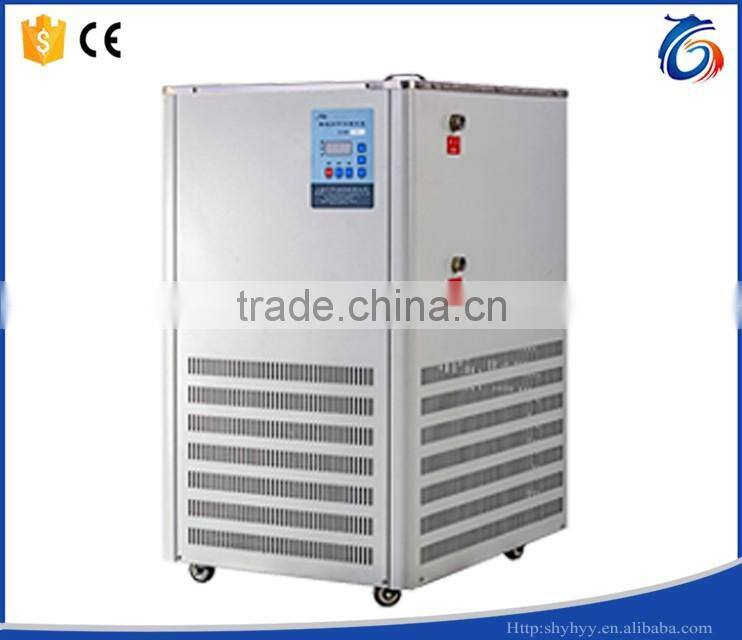

Low temperature chiller

5l~100l and -120℃~20℃ customer optional.

Heating oil bath

5l~100l and 99℃~200℃ customer optional.

Packing & Delivery

Packing:

-Treated wood case or carton case

-Both neutral and customized packaging can be available


Shipping:

Depends on the dimensions of the package and your requirements, we can deliver the goods by air, by sea, by train or by express.


Related Products

Chiller

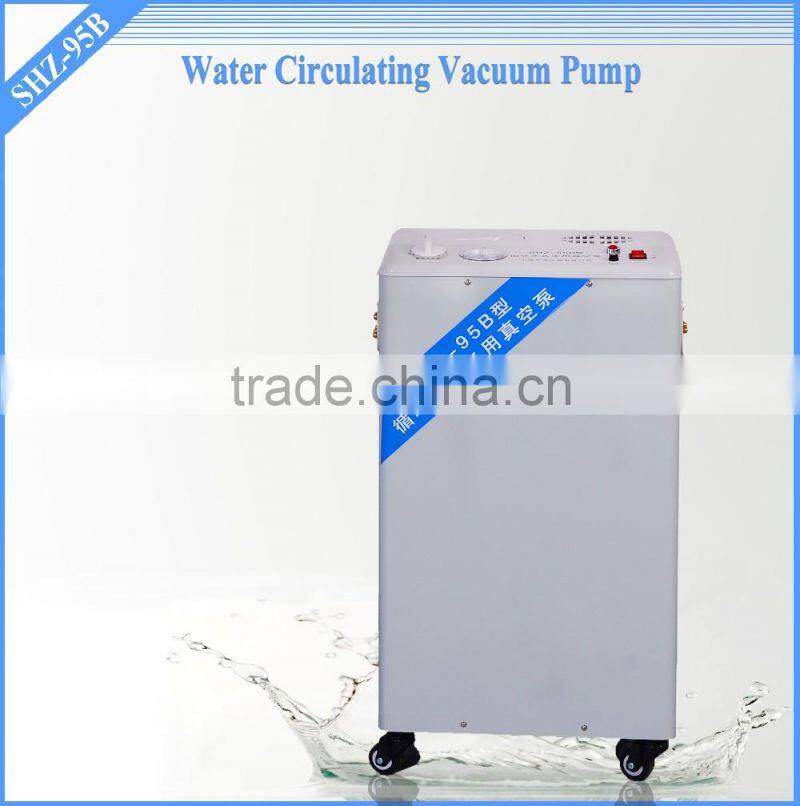

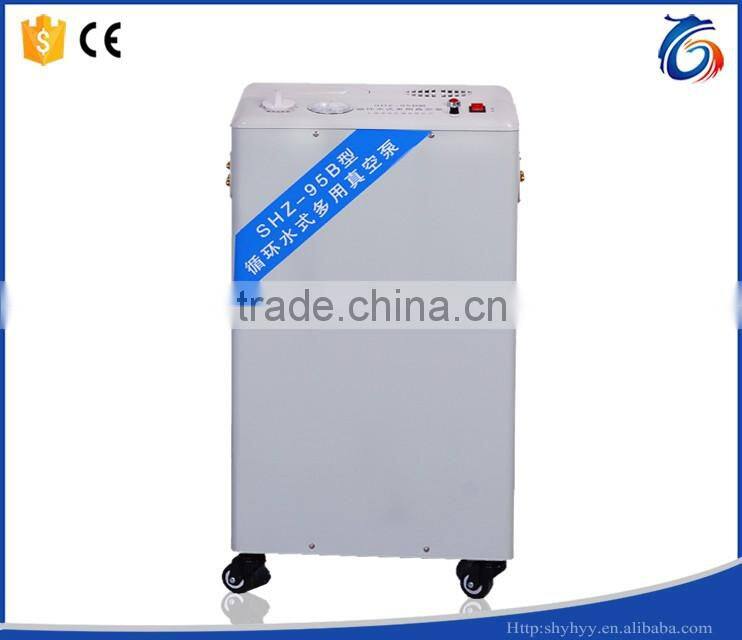

Vacuum Pump

Our Service
FAQ

NO.1 Are you manufacturer or trading company?

Yes,we are professional manufacturer of lab instruments with a history of 8 years.


NO.2 How to choose suitable equipment?

You tell us your work flow and requirement,for example:capacity,temperature range,pressure,power supply,etc.,we will recommend you suitable equipment according to your requirements.


NO.3 How long is your date of delivery?

Within 5 working days after payment confirmed,customized products need 10~15 days.


NO.4 How to solve the equipment trouble during using?

Please send us email of the problem,pictures or a small video will be much better,we will find the problem and help you to solve it.


NO.5 Will you provide service beyond the warranty?

Yes,we provide lifetime service for our products,but it won't be free beyond the warranty period.


NO.6 How to transport the product?

By sea:More than 60kg or big quantity,safe,cheap but slow;

By air to airport:Suit for big product or quantity but urgent a lot.3~10 days;

By Express delivery such as DHL,FedEx;

TNT:Suit for small or not too heavy and very urgent product.
