Laboratory Rotavap, Vacuum Distillation Equipment
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Ammonium Chloride Evaporation & Crystallization Project Completed with DMF Distillation
- China Factory essential oil extractor essential oil distiller
- Genyond essential oil distiller essential oil extraction supercritical extractor
- GENYOND distillation rose essential oil extracting machine extraction maker equipment
- CHINA Factory steam distiller for lavender essential oil extraction with logo
- 10% cut off essential aromatic oils distiller prices
Product Details
Condition: | New | Application: | Distillation | Power Source: | Electric |
Process: | Vacuum Distillation | Place of Origin: | Shanghai, China | Brand Name: | Yuhua |
Model Number: | RE-5002 | Voltage: | 220V/50HZ | Power(W): | 6000W |
Dimension(L*W*H): | 1400*550*550mm | Weight: | 180kg | Certification: | CE |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Laboratory Rotavap, Vacuum Distillation Equipment
Vacuum distillation equipment is under normal/negative pressure, under constant heating, using the different boiling point of the mixted material to get your target solvent.
Vacuum distillation equipment is widely used in the process like Concentration, Refining, Separation, Crystallization, etc.
Specifications of vacuum distillation equipment
Model | RE-205 | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-3002 | RE-5002 |
Rotary flask(L) | 0.5-2 | 3 | 5 | 10 | 20 | 30 | 50 |
Receiving flask(L) | 1 | 2 | 3 | 5 | 10 | 20 | 20 |
Evaporating Speed (H2O) | 1.2L/h | 1.5L/h | 2L/h | 3L/h | 5L/h | 7L/h | 9L/h |
Discharge | Optional | PTFE (Teflon) Bottom Discharge Valve | |||||
Motor power (W) | 90 | 180 | 250 | ||||
Rotation speed (rpm) | 0~150 | 3~110 | 3~90 | ||||
Bath power (kw) | 1 | 1.5 | 3 | 6 | |||
Power | 220V, 50/60Hz | ||||||
Bath temp range | Water: RT~90°C Oil: RT~200°C | ||||||
Glass Material | GG-17 (3.3) High Borosilicate Glass | ||||||
Reachable Vacuum Rate | <133Pa (1.33mbar, 1 Torr) |
Features of vacuum distillation equipment
1. GG-17 (3.3) high borosilicate glass, with good performance
2. Excellent sealing performance, Ultimate vacuum reached pump vacuum rate 133pa
3. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional
PTFE(Teflon)discharge, no pollution to solvent
4. System vacuum does not drop during discharging shift. Sample received keeps consistent
quality.
5. PTFE (Teflon) no-liquid -accumulation discharging valve, no-dead-angle reaction, complete
PTFE valve, anti-corrosion.
6. Ex-motor optional

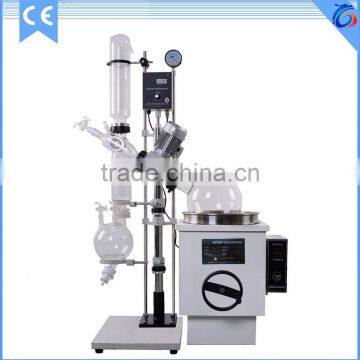

Pictures of vacuum distillation equipment
Packaging
-Export wooden case or carton case
-Both neutral and customized packaging can be available
Shipping
Depends on the dimensions of the package and your requirements, we can deliver
the goods by air, by sea, by train or by express. Fos small fitting parts, will use express.
1. Are you manufacturer or trading company?
A: We are professional manufacturer of lab instruments with a history of 7 years.
2. How to choose suitable equipment ?
A: You tell us your requirements (For example: capacity, temperature range, pressure, etc ), we will
recommend you the best suitable equipment.
3. What’s your delivery time?
A: Within 5 working days after payment confirmed, customized products need 10~15 working days.
4. How to solve the problem of your equipment?
A: Please send us email of the problem, pictures or a small video will be much better, we will find
the problem and tell you how to solve it.
If there is a broken, we will send you a new part, and it is free in the warranty period.
5. Do you still provide service beyond the warranty?
A: Yes. Our warranty is one year from the delivery date, we also provide service beyond the
warranty period, but it will not free for the broken parts.
Shanghai Yuhua, a leading manufacturer of Jacketed Glass Reactor, Rotary
Evaporator, and related Vacuum, Heating & Cooling Circulator with a history of
7 years.
Pls don't hesitate to contact us if you have any questions about our products.
