Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Hydraulic Metal Waste Baler
Hydraulic Metal Waste Baler
US$ 13,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Bags
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO TIANJIN SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Granular Type 50kg 100kg Corn Packaging MachineUS$ 6,500 - 8,500MOQ: 1 Set -
High Accuracy Granular Type 50kg 100kg Cereal Packaging MachineUS$ 6,500 - 8,500MOQ: 1 Set
-
China High Accuracy Granular Type 50kg 100kg Grain Packaging Machine in Hot SaleUS$ 6,500 - 8,500MOQ: 1 Set
-
20-50kg Quantitative Valve Bag Packing MachineUS$ 5,600 - 5,900MOQ: 1 Set
-
20-50kg Quantitative Valve Bag Packaging MachineUS$ 5,600 - 5,900MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Bags
Packaging Material
Plastic
Automatic Grade
Semi-Automatic
Driven Type
Hydraulic
Voltage
380v,415v, 440v, 460v
Power
22
Place of Origin
Henan, China
Brand Name
DINGLI
Model Number
Y81-DL-1600
Weight
11,5 ton
Dimension(L*W*H)
18250X3250X2250mm
Certification
ISO, CE
After-sales Service Provided
Engineers available to service machinery overseas

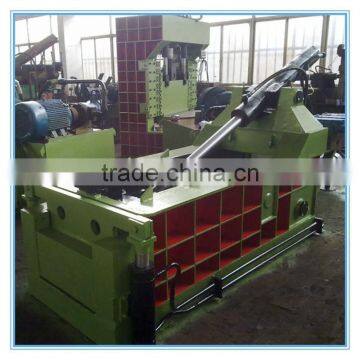

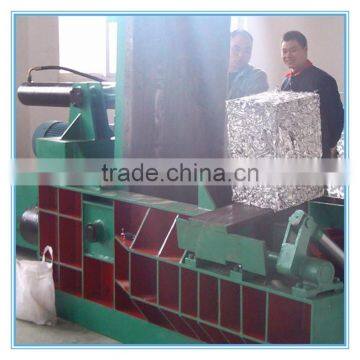

Hydraulic Metal Waste Baler
Y81 series hydraulic metal waste baler introduction:

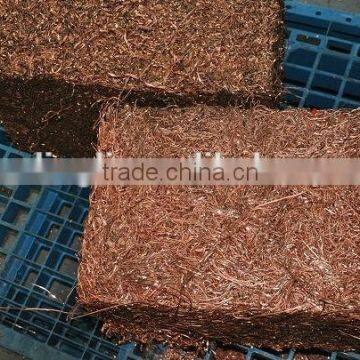

Y81 series metal baler is suitable for steel mills, recovery processing industry and nonferrous, ferrous metal smelting industries. It is widely used in the fields for the metal Angle materials baling, metal shavings pressing and baling, scrap steel pressing and baling, waste aluminum baling and baling, stainless steel pressing and baling, waste scrap steel pressing and baling, scrap leather pressing and baling, waste aluminum shaving baling, copper scrap crumbs baling, etc. The briquettes in the majority with a rectangular shape, and, of course, the star series and round package, anise star shape and round shape is suitable for the furnace opening at about 300 mm, furnace capacity at about 500 kg.
Y81 series hydraulic metal waste baler features:
All copper scrap metal baler adopts hydraulic drive, with choice of manual or PLC automatic control mode of operation.
2. Metal baling machine has different discharge modes such as turning mode, side pushing mode, and front discharging mode.
3. The installation is simple for our metal baling machine, without specific installation conditions, as long as there is flat ground without foot screws installation requirements. For areas without power, it can also be used with a diesel engine.
2. Metal baling machine has different discharge modes such as turning mode, side pushing mode, and front discharging mode.
3. The installation is simple for our metal baling machine, without specific installation conditions, as long as there is flat ground without foot screws installation requirements. For areas without power, it can also be used with a diesel engine.
4. Metal hydraulic baling machine has pressure varied from 63 tons to 600 tons of ten levels for the user to choose from. The production efficiency from 4 to 40 tons tons/class/class. The characteristics of the hydraulic baling machine: it reduces the burden on the wastage of the gasification furnace process, making the value for you in virtually to create more wealth.
Y81 series hydraulic metal waste baler technical specification:
Model |
Nominal Force (KN) |
Charging box size (mm) |
Briquettes size (mm) |
Briquettes weight (Kg) |
Capacity (t/h) |
Motor power (KW) |
Y81-DL-63 |
630 |
1000*600*500 |
190*190 |
15~30 |
0.4~0.8 |
7.5 |
Y81-DL-100 |
1000 |
1000*700*550 |
230*230 |
30~40 |
0.6~1.2 |
11 |
Y81-DL -125 |
1250 |
1200*700*600 |
300*300 |
50~75 |
1.2~1.5 |
15 |
Y81-DL -135 |
1350 |
1400*600*600 |
600*240 |
60~80 |
1.5~2.8 |
22 |
Y81-DL -160 |
1600 |
1600*1000*800 |
400*400 |
110~150 |
2.2~3.0 |
22 |
Y81-DL -200 |
2000 |
1800*1400*900 |
450*450 |
210~300 |
3.0~5.0 |
22*2 |
Y81-DL -250 |
2500 |
2000*1750*1000 |
500*500 |
250~280 |
5.0~6.3 |
22*2 |
Y81-DL -315 |
3150 |
2500*2000*1200 |
500*500 |
250~360 |
4.0~6.5 |
37*2 |
Y81-DL -400 |
4000 |
3000*2000*1200 |
500*600 |
250~380 |
6.8~8.0 |
45*2 |
