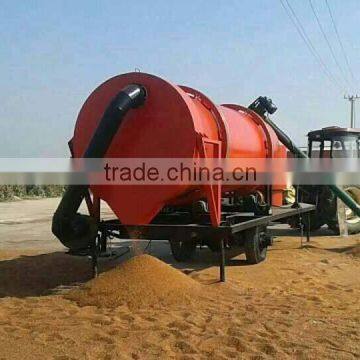

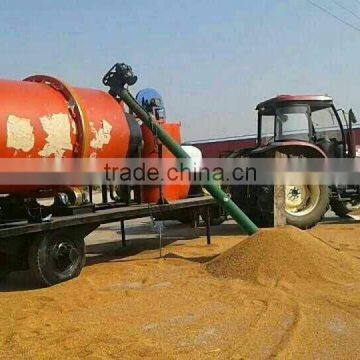

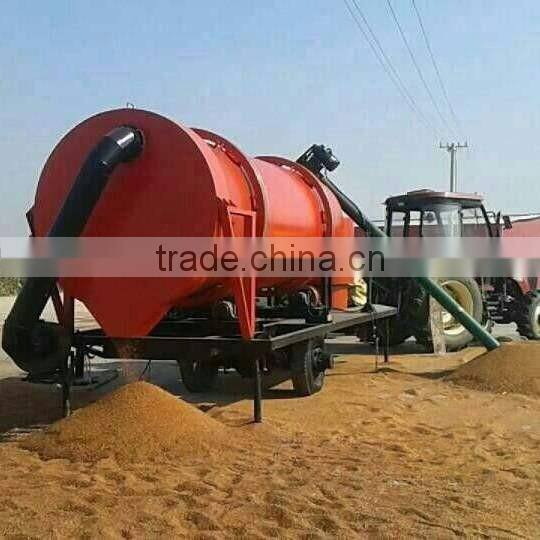

Small Mini Type Electric Heating Mobile Grain Dryer
Description of small grain dryer:
A small drum grain dryer is also called grain dryer, Chinese herbal medicine drying machine, household drying machine, equipment has the advantages of simple structure, small volume, convenient operation, the drying machine can be installed on wheels, easy to move and transport, so it is also called mobile dryer.
Mechanical Structure and Working Principle of small grain dryer:
The small grain dryer consists of heat supply source, feeding machine, revolving cylinder, discharging machine, induced-draft fan, tripper, and power distribution cabinet; after enter the dryer machine, the wet vinasse distributes in the dryer equably and contacts the hot air fully when flipped by the lifting plate in the drum, this will quicken the heat transfer and mass transfer. During the drying process, with action of the inclined lifting plate and heat medium, the dried vinasse is discharged from the star-shape discharge valve in another side of the dryer.
Main Characteristics of small grain dryer:
1.The revolving drum is characterized by a high degree of mechanization, high production capacity, and continuous running;
2.Excellent and simple structure, smooth running of the material in cylinder, convenient operation;
3. Less breakdown, low maintenance cost and low power loss;
4.Wide application and even drying effect
Technical specification of Small Grain dryer:
model |
DLSG1409 |
DLSG1415 |
DLSG1615 |
DLSG2209/3 |
DLSG2212/3 |
DLSG2512/3 |
DLSG2912/3 |
capacity(t/d) |
7.6 |
12.7 |
14.4 |
22 |
29.8 |
35 |
42.6 |
water evaporation(t/h) |
0.396 |
0.66 |
0.75 |
1.147 |
1.554 |
1.84 |
2.216 |
Initial moisture (%) |
≤83% |
||||||
final moisture |
≤10% |
||||||
drying temperature |
300±30℃ |
||||||
total power |
30.7 |
32.7 |
40.2 |
78 |
90 |
125 |
135 |
floor area(m2) |
5m×15m |
5m×18m |
6m×18m |
8m×18m |
8m×20m |
10m×20m |
12mv20m |
