US$ 12,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Dynnor Industrial Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN QINGDAO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Drum Drying Equipment
Place of Origin Henan, China
Brand Name DINGLI
Model Number DLS623
Voltage 380v, 415v, 440v, 460v
Power(W) 3kw
Dimension(L*W*H) 3.2x2.0x2.0m
Weight 2.5-10.8 tons
Certification ISO, CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Small Sand Dryer for Low Investment Plants


Brief Introduction of Small Sand Dryer:
Small sand dryer, also called mini sand dryer, is developed from the three-drum sand dryer to have good heat preservation effect and low energy consumption. But the the internal structure of the small sand dryer, improved by increasing the pre-drying and actual drying time of wet material.

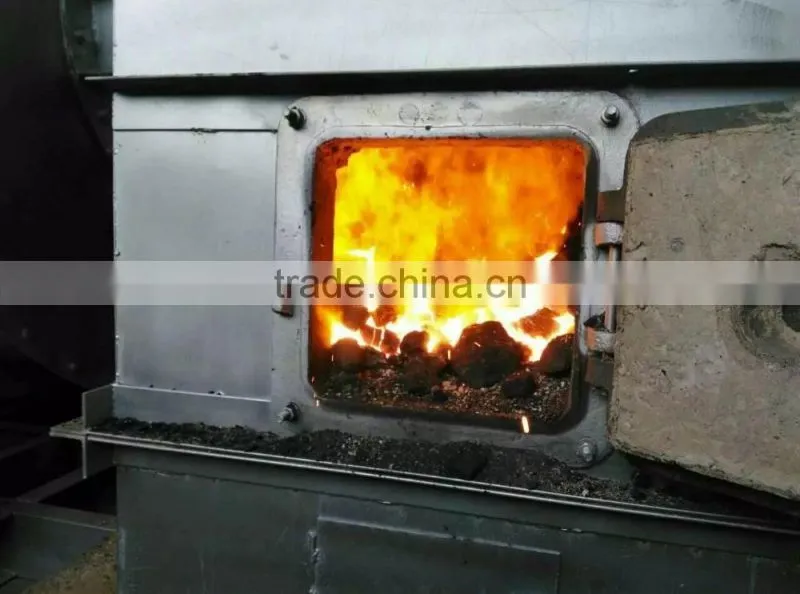

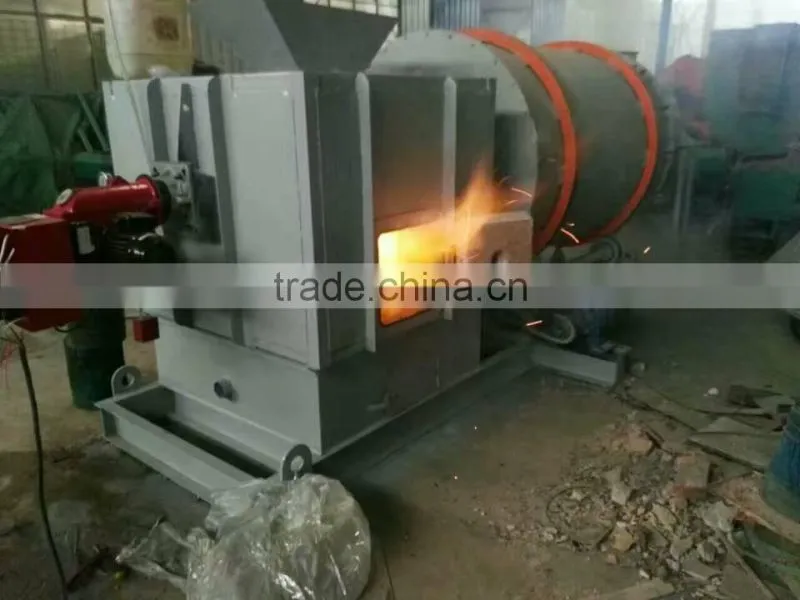

The biggest characteristic of small sand dryers is the integration of the stove and the dryer: The heat source fries the cylinder directly, at the same time, the hot air is induced by draft fan into the dryer chamber to have thermal heat exchange with the wet material. In this way, the drying effect has been greatly improved.

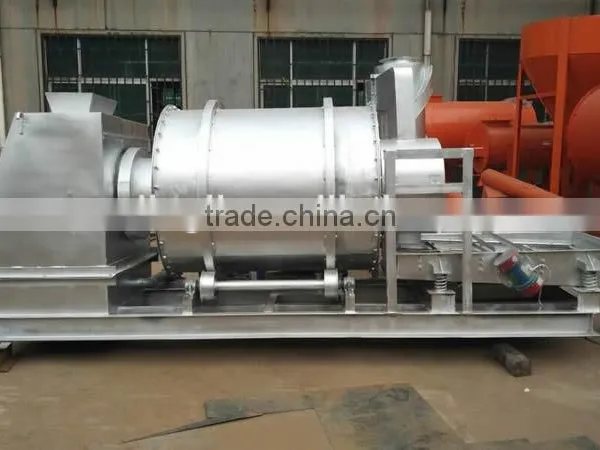

 Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!
Application of Small Sand Dryer:
The small sand dryer is mainly used in mineral processing, building materials, metallurgy, chemical industry to dry material with certain moisture and granularity. It has strong adaptability to various materials. It is mainly applicated to granular materials like sand, such as beans, corn, sesame, etc. The operation is simple and reliable, area covering small, which get the favour of many users of small and middle scale plant.
 Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!
Features of Small Sand Dryer:
1, High technical content, cylinder self preservation, frying and baking at the same time, thermal efficiency as high as 85%.
2, The length of the roots dryer is shortened by 60% than the ordinary three drum dryer, which is helpful to process arrangement. It reduces the building area of factory plant, and saves engineering investment about 40%.
3, It adopts heat-resisting wear-resisting alloy steel, four times than ordinary steel wear-resisting. Long service life, easy to maintain.
4, Low outlet temperature, which is beneficial to dust removal equipment with long time, can be directly connected to pulse jet bag filter.
5, Civil investment is reduced about 50%, power consumption reduced by 60%.
6, It has compact structure, simple structure, rational layout, increasing the rate of material and heat exchange of heat energy.
7, It is easy to realize automatic control, reducing the operating personnel and saving labor resources.

Technical Specification of Small Sand Dryer:


Model

Capacity(t/h)

Output moisture
(%)

volume
(m³)

Coal consumption
(kg/t)

Motor power
(kw)

Weight
(T)

Yellow sand

River sand

Sea sand

Silica sand

Casting sand

DLS623

3-5

3-3.5

2.5-3

4-5

3-4

<0.5%

3.6

5-7

4

3.2

DLS625

5-6

4.5-5.8

4.5-5

5-7

5-6

<0.5%

7.2

5-7

5.5

5.1

DLS628

8-9

7.5-8.5

7-8

9-10

8.5-10

<0.5%

10

6-8

7.5

7.8

DLS6210

10-12

10-11

9-10

11-15

10-13

<0.5%

12.8

8-10

4×2

9.3

DLS6215

15-17

15-16

14-15

17-20

16-19

<0.5%

19.8

8-10

5.5×2

14.9

DLS6220

21-23

20-22

20-21

25-27

24-26

<0.5%

28.5

8-10

4×4

24.8

DLS6225

25-28

23-25

22-25

33-35

32-35

<0.5%

32.2

8-12

5.5×4

26.4

DLS6230

30-35

29-32

28-32

40-45

38-43

<0.5%

42.4

8-12

7.5×4

42.4

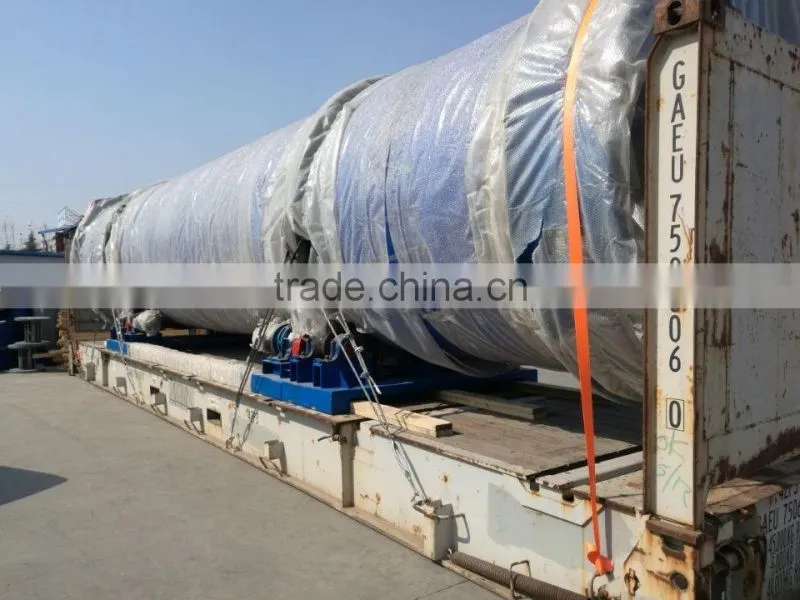

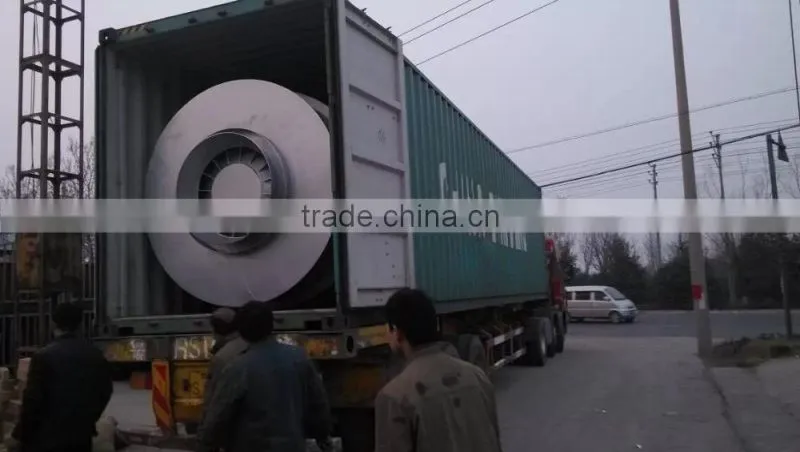

Packaging & Shipping

 Your machines will be packaged well in container with plastic bags or wood case, which are suitable for long ocean shipping.

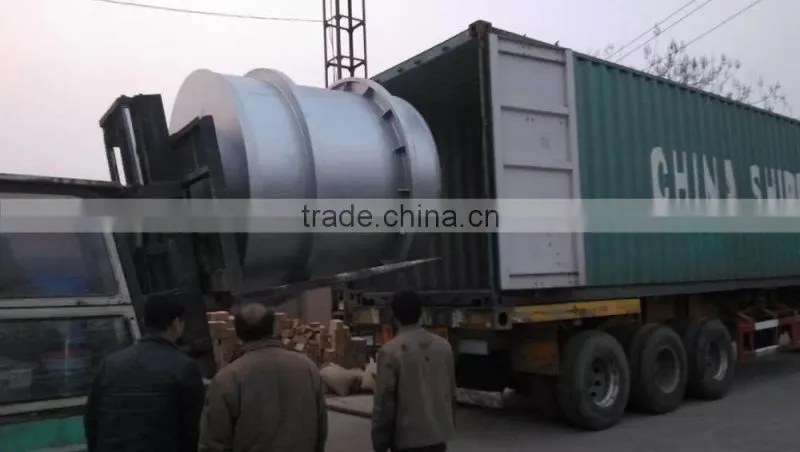

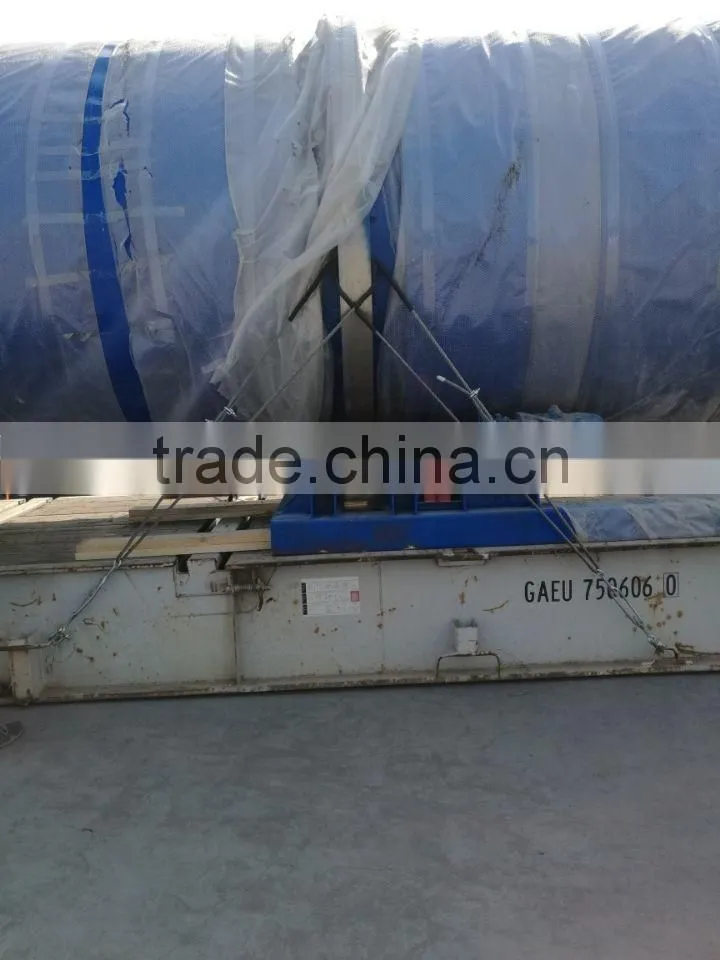

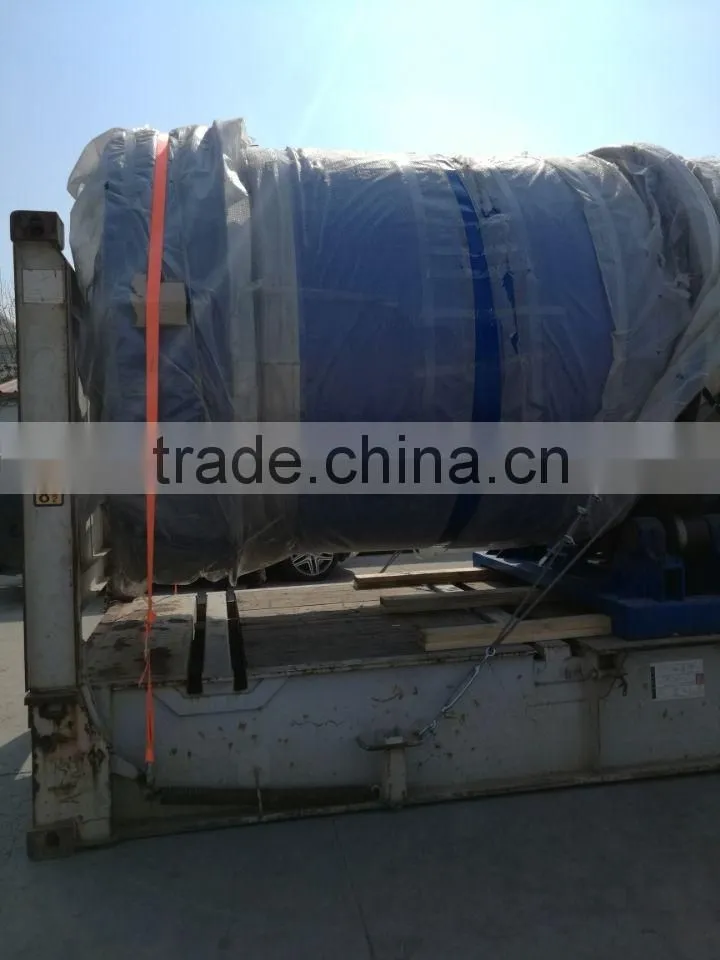

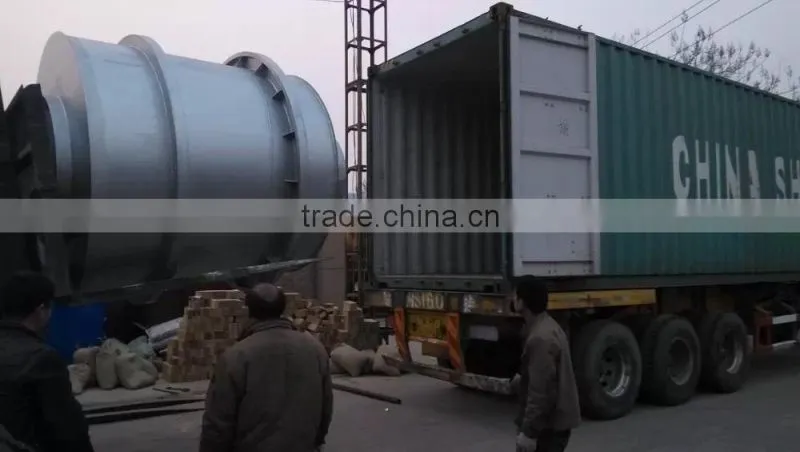

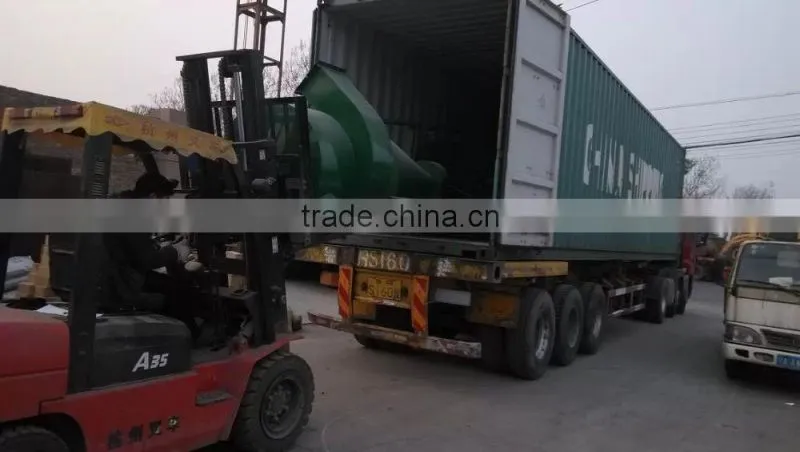

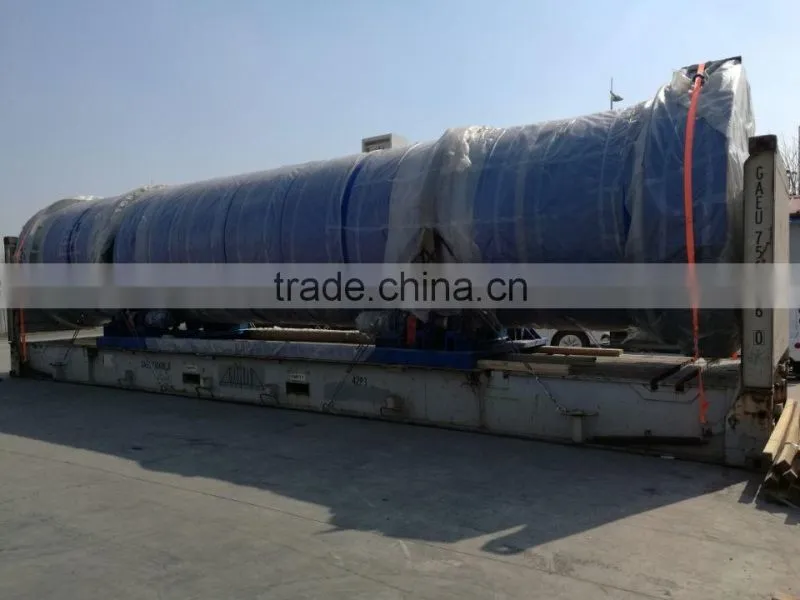

Belowing are pictures for your reference:

Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!

Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!Small Rotary Sand Dryer FREE Installation and Operation Training Turkey Service!

Company Information

 DingLi Group advantages:

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 30 countries,300 global partners;
5. Rank first rank in China Drying Industry;
6. Customized Dewatering & Drying Solutions.

Our Services



1. Free consultation on technical &commercial issues, provide market evaluation, project feasibility based on each customers' condition.



 2. Provide free drawings at no cost for factory layout, piping & wiring systems, installation plannings,



 3. Free installation, commissioning and operation training services at no costs to customers.



 4. 24/7 aftersales service, free of charge if repair service required within 1 year after installation.
