Dongfeng New 5 Tons Kunckle Crane Mounted Towing Wrecker

Dongfeng New 5 Tons Kunckle Crane Mounted Towing Wrecker photo-1

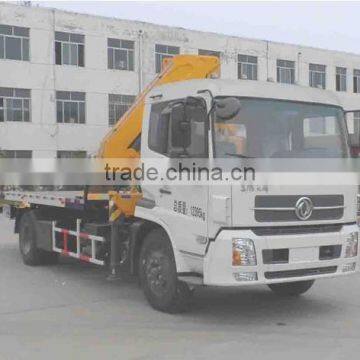

Dongfeng New 5 Tons Kunckle Crane Mounted Towing Wrecker photo-2

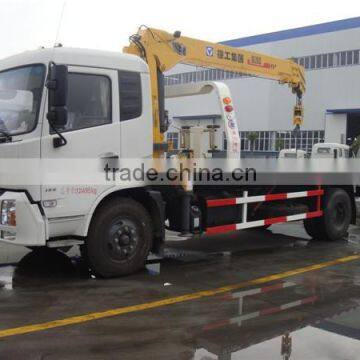

Dongfeng New 5 Tons Kunckle Crane Mounted Towing Wrecker photo-3

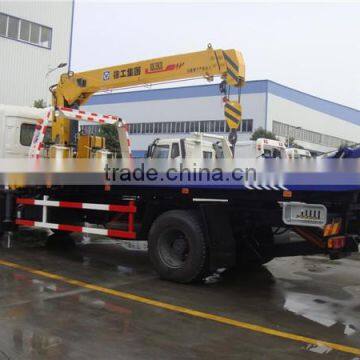

Dongfeng New 5 Tons Kunckle Crane Mounted Towing Wrecker photo-4
Dongfeng New 5 Tons Kunckle Crane Mounted Towing Wrecker photo-5
US$ 47,400 - 48,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Fuel Type:
Diesel
Emission Standard:
Euro 3
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Fuel Type Diesel
Emission Standard Euro 3
Condition New
Transmission Type Manual
Dimensions (L x W x H) (mm) 9400X2400X3360
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW5120TQZT3





Dongfeng new 5 ton kunckle crane mounted towing wrecker



As a professional manufacturer of special vehicles, we have various kinds of wrecker towing trucks. Right hand tow truck, left hand drive tow truck, flatbed tow truck,  tow truck wrecker mounted crane, under lift wrecker truck, rotator tow tuck, etc. The towing weight is from 3ton to 50tons.




Product Description



Introduction of towing wrecker



The wrecker tow truck (also called wrecker,  tow truck, breakdown truck, recovery truck or breakdown lorry, truck car carrier) is a vehicle used to transport broken motor vehicles to another location (generally a repair garage), or to recover vehicles which are no longer on a drivable surface.



Towing services are generally provided by an emergency road service operator. Vehicles are often towed in the case of breakdowns or collisions, or may be impounded for legal reasons.



The wrecker towing truck with crane is platform wrecker tow tuck mounted with crane. It is a real multifunctional wrecker truck. It can be both used to transport the broken car which can move by flatbed and lift the broken car whose engine can't start by crane. The crane can rotate 360 degree and the lifting weight is from 3 ton to 8 ton.



Technical Parameters of Dongfeng 5 tons wrecker towing truck mounted crane



Items

Descriptions

Specifications and Types

General

Truck Name

Wrecker truck with crane

Truck Model

CLW5122TQZD4

Drive Type

4*2

Gross Vehicle Weight(kg)

12495

Curb Weight (kg)

10500

Overall Dimensions L*W*H(mm)

9400×2480×3700

Engine

Engine Brand

Cummins

Fuel Type

Diesel

Power

132kw/180HP

Emission Standard

Euro IV

Displacement(ml)

5900

Engine Type

6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling

Chassis

Chassis Brand

Dongfeng

Tire No.

6

Tire Specification

9.00-20 Nylon tire

Wheelbase (mm) ;

5000

Axle No.

2

Steering Wheel

Left Hand Drive with power assisted

Gear Box

6 speed forward with 1 reverse, manual

Brake

Air brake

Air conditional

Equipped

Towing and lifting

Crane Brand

Chinese brand

Crane Type

Knuckle boom

Max lifting weight of crane(m)

6300

Max lifting height of crane(m)

11

Max working radius of crane(m)

8

Towing capacity (kg)

5000

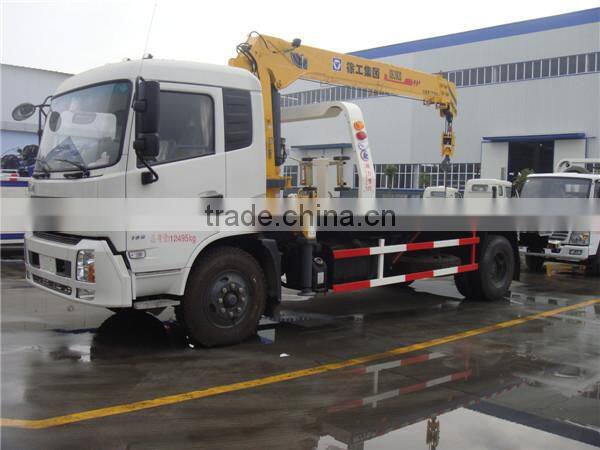

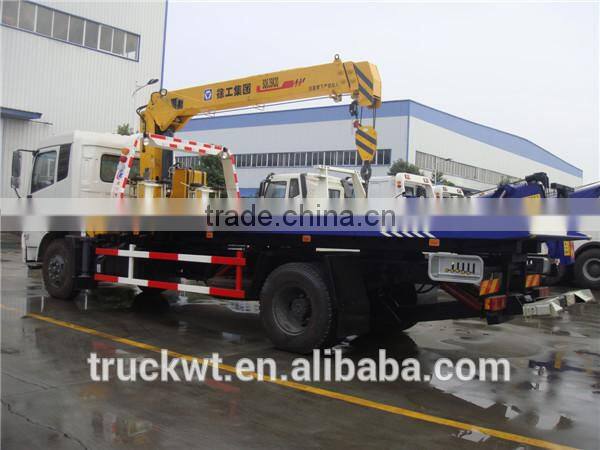

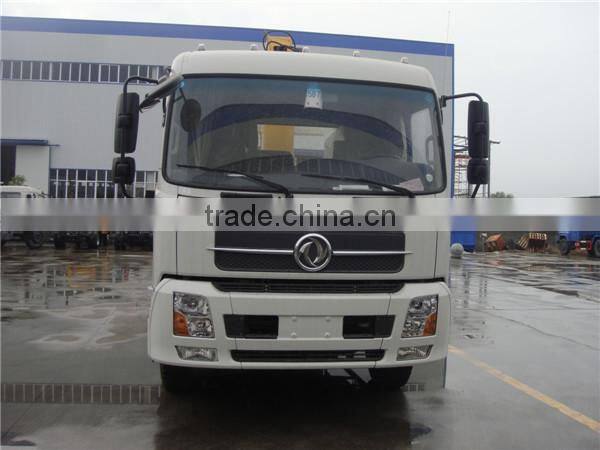

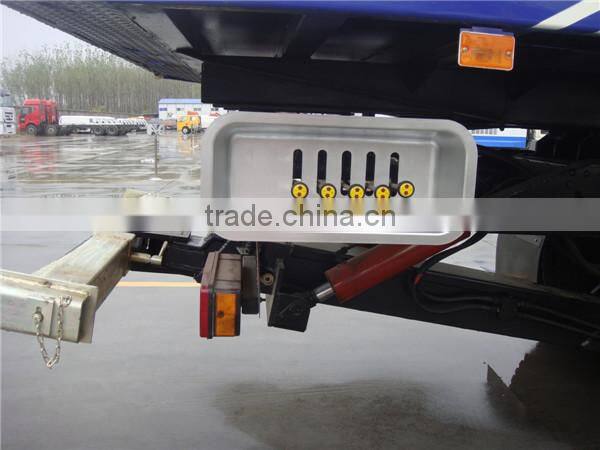

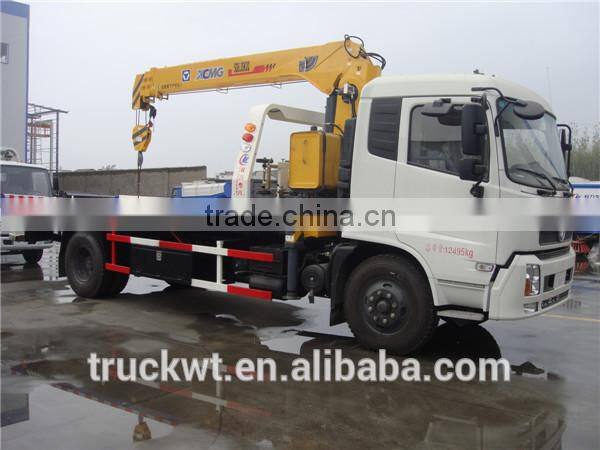

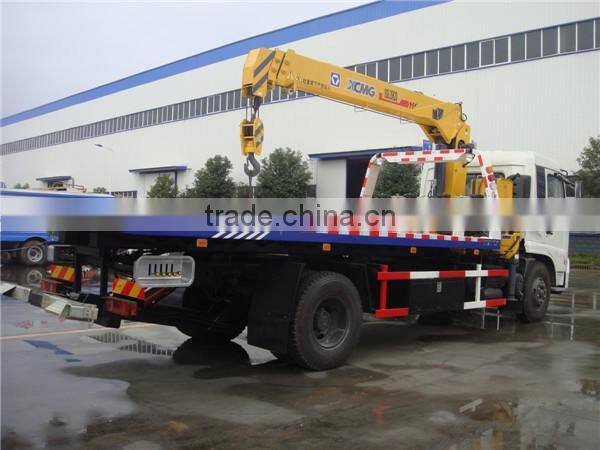

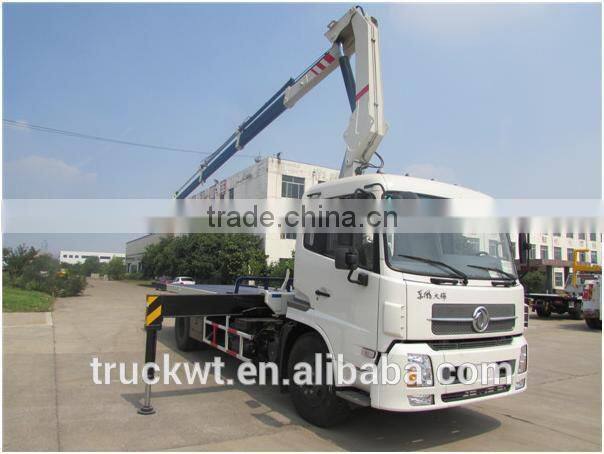

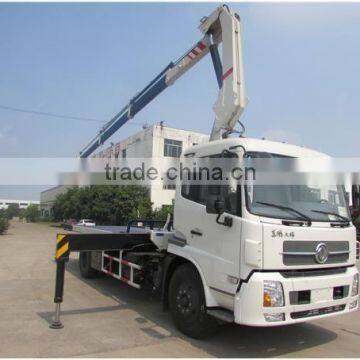

Pictures of wrecker towing truck mounted XCMG Crane



 Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker

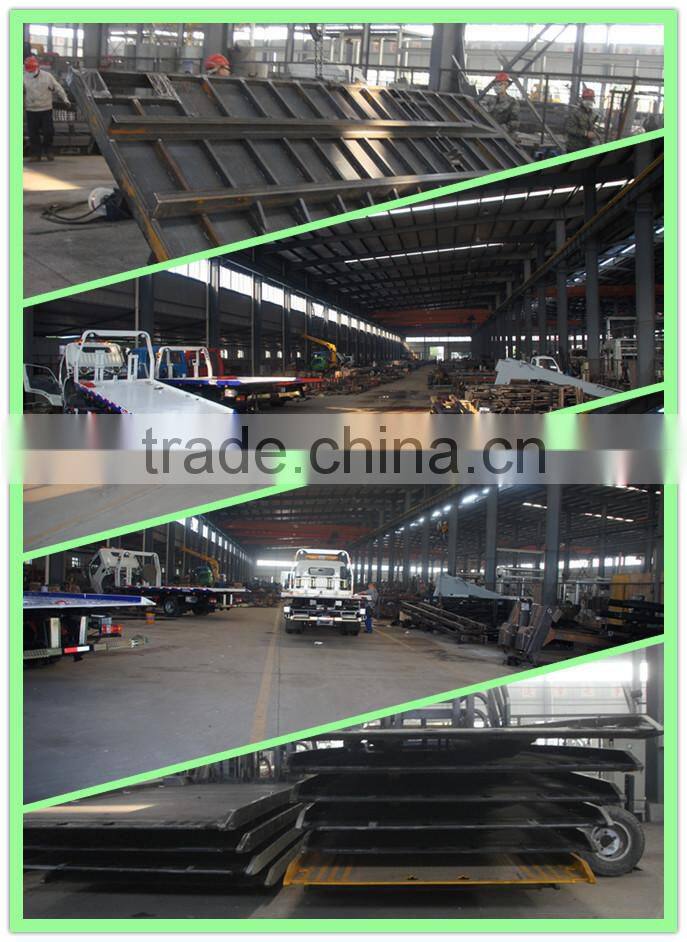

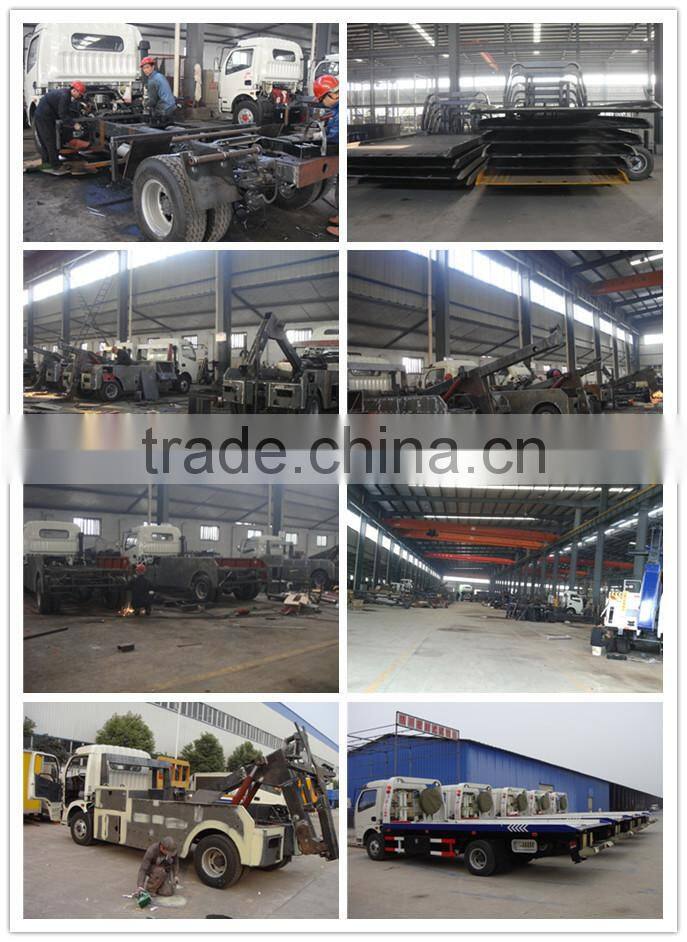

Wrecker truck workshop



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker









We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.



We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.



Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.



As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.



Factory Certificate



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Factory Certificate



Dongfeng new 5 tons kunckle crane mounted towing wrecker



Dongfeng new 5 tons kunckle crane mounted towing wrecker







Contact information





If you are interested in any of our trucks or any products information needed, please let me know your queries and demand through following contact informaton.



Dongfeng new 5 tons kunckle crane mounted towing wrecker
