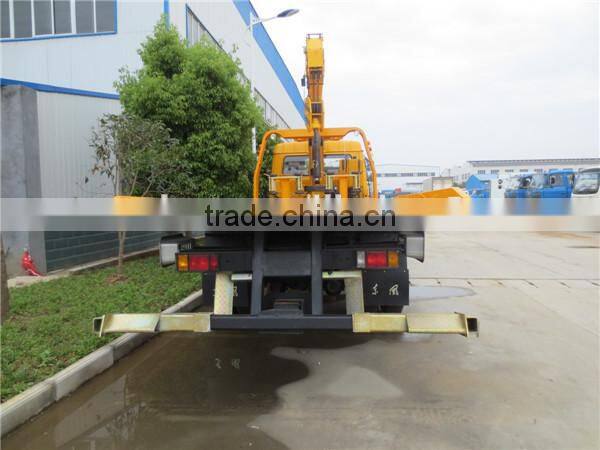

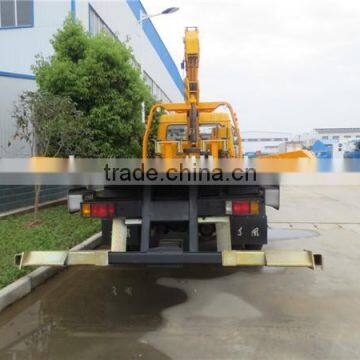

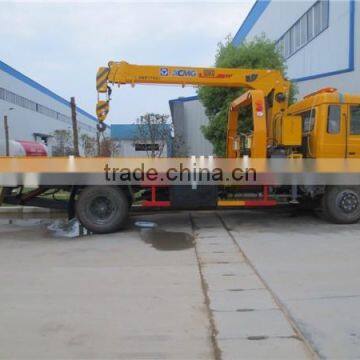

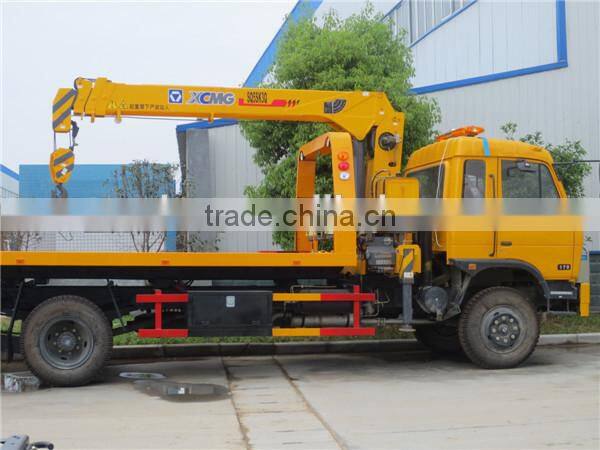

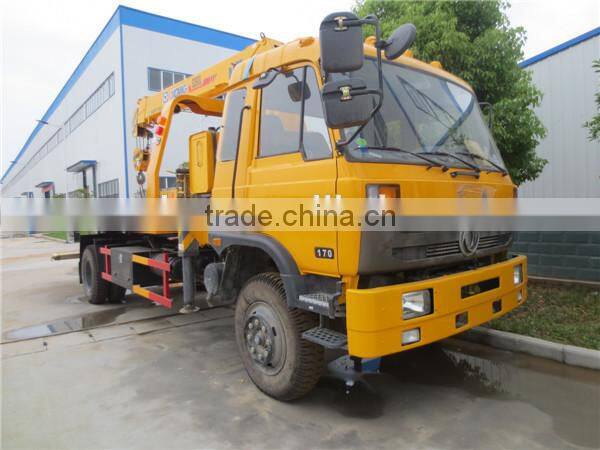

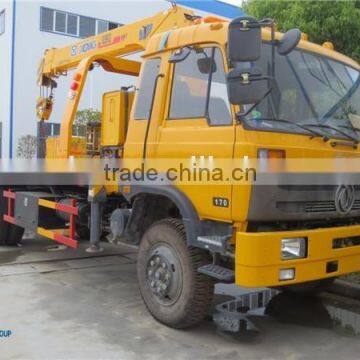

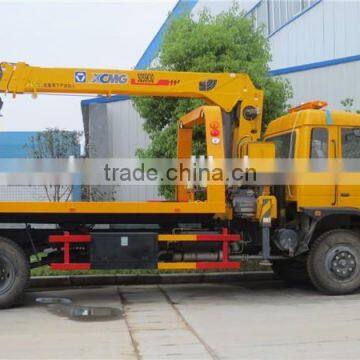

Dongfeng 4*2 Medium Duty Wreckers with 5 Ton crane for sale
Medium Duty Wreckers with 5 Ton crane is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and
small sized cargos, cars and other special vehicles, which are allowed within the technical
parameters of this kind.
Technical Parameter show as the following:
Product Model | DONGFENG Medium Duty Wreckers with 5 Ton crane | Product Brand | DONGFENG |
Wheelbase(mm) | 5100 | Overall Dimension(L*W*H)(mm) | 9000×2480×3500 |
Front/ rear suspension(mm) | 1250/2650 | Front/Rear tread(mm) | 1940/1860 |
Gross weight (kg) | 12450 | Axle number | 2 |
Curb weight(kg) | 8455 | Front/Rear axle load(Kg) | 3125/9325 |
Approach/ departure angle (° ) | 34/12 | Max Speed (km/h) | 90 |
Cab capacity | 3 | Cab Type | Dongfeng153 fat head cab |
Chassis Technical Parameter | |||
Chassis Model: | EQ1120GLJ | Chassis manufacturer: | Dongfeng automobile |
Gear Box | Dongfeng 6 shift | Transmission type: | Manual |
Steering Type | Power steering | Traction Type: | 4*2 |
Brake System | Air brake | ||
Leaf Spring number: | 8/10+8 | Tire size/type | 9.00-20,10.00-20 |
Engine specification | |||
Engine Model: | B170 30
| Engine Brand | DongFeng |
Fuel type: | Diesel | Displacement(ml) | 5900 |
Emission stand | Euro 3 | Power(kw) | 125(170hp) |
Warranty | 12 months, from the date of supply | ||
Basic Equipment & main performance | 1. Equipped SQ5K3Q four arms 5 ton crane, Φ15mm 35m length 6ton hydraulic winch, auxiliary brake pipe assemblies, etc | ||
2. Max lifting Weight(kg):3800Kg ,Max towing weight(kg):6000kg | |||
Multi-faceted Show of DONGFNG Medium Duty Wreckers with 5 Ton crane
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement ;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.It has registered trademark "CHENLIWEI" and the products code is “CLW”. It has solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 , the 3C Certification(China Compulsory Certification) and other certifications that export needed. It own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc.
ChengLi Special Automobile is the most important partner of DongFeng , FAW , JAC, FONTON ,Sinotruck and other automlbile company. It not only design and manufacture all kinds of special automobiles and fittings as per the customer’s request ,but also sale DongFeng ,FAW ,JAC, FONTON, North Benz, Sinotruck and other large automobile manufacturer’s chassis, whole vehicle and the spare part.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks always strives for the survival by the quality, pursue of development by efficiency. It has always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea. Credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
