170 HP DONGFENG 4*2 10000L Water Truck
10000L Water Truck , is also called Truck Mounted Water Tank ,Portable Water Tanker , Waste Water Truck ,Water truck, spray truck, multifunction watering truck, landscaping watering truck, water tanker, water wagon Water tanker transport truck etc., widely used in road rinsing, landscaping etc., It possess multi features such as watering, dust suppression, spraying pesticide, cleaning rail, drain, carrying water, emergency fire fighting, etc.
Production notes:
1.Equipped with front(rear, side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with CLW pump(suction lift>6m);Equipped with fire valve, water valve, and filter gauze
2. Equipped with front flushing, back sprinkle and side spray, high pressure gun in rear Platform, two water pipe, it length is equal to the tank’s
3. Equipped with the working platform at the back, which can be installed green high-pressure water spray gun or sprayer.(The spray gun or sprayer shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Equipped with the best quality water pumps in China, And with fire coupling, self-flow add self- priming function.
5.Tanker material : 4mm thickness high quality carbon steel
Main arameter of 170 HP DONGFENG 4*2 10000L Water Truck
Whole Truck Main Technical Parameter | |||
Product Name |
DONGFENG 10000L Water Truck |
Product Model |
CLW5111GSST3 |
Wheelbase(mm) |
3950 |
Overall Dimension(L*W*H)(mm) |
7500×2470×3050 |
Front/ rear suspension(mm) |
1250/2300 |
Tank volume(L) |
10000 |
Curb weight(kg) |
Approx 6800 |
Axle number |
2 |
Steering Type |
LHD with power steering |
Traction Type: |
4*2 |
Approach/ departure angle (° ) |
27/13 |
Max Speed (km/h) |
85 |
Cab capacity |
3 |
Cab Type |
flat Proof, one and half row |
Chassis Technical Parameter | |||
Chassis Model: |
EQ1110GLJ |
Chassis manufacturer: |
DONGFENG Automobile Co., Ltd |
Gear box |
6 speed forward and 1 reverse |
Transmission type: |
Manual |
Leaf Spring number: |
8/11+8 |
Brake System |
Air brake |
Number of Tire |
6 with a spare |
Tire size/type |
9.00-20,9.00R20 |
Engine specification | |||
Engine Model: |
B170 33 |
Engine Brand |
DONGFENG |
Fuel type: |
Diesel |
Displacement(ml) |
5900 |
Emission stand |
Euro 3 |
Power(kw) |
125(170hp) |
Warranty |
12 months, from the date of supply |
||
Equipment and parameter |
1. Equipped with front(rear, side)sprinkler(sprinkling width>14m ) |
||
2. Equipped with rear working platform with water cannon (range>28m) | |||
3. Equipped with CLW pump(suction lift>6m) | |||
4. Equipped with fire valve, water valve, and filter gauze | |||

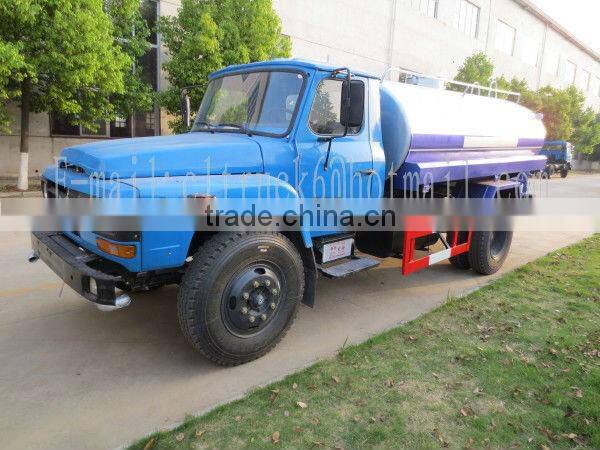

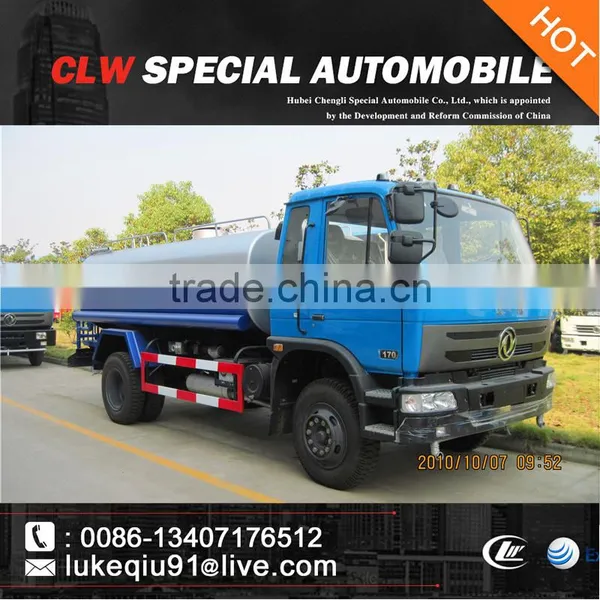

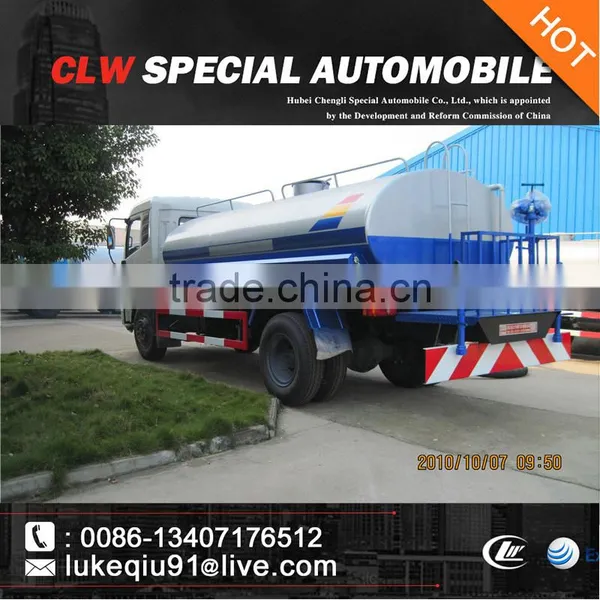

This 10000L Water Truck show as following:

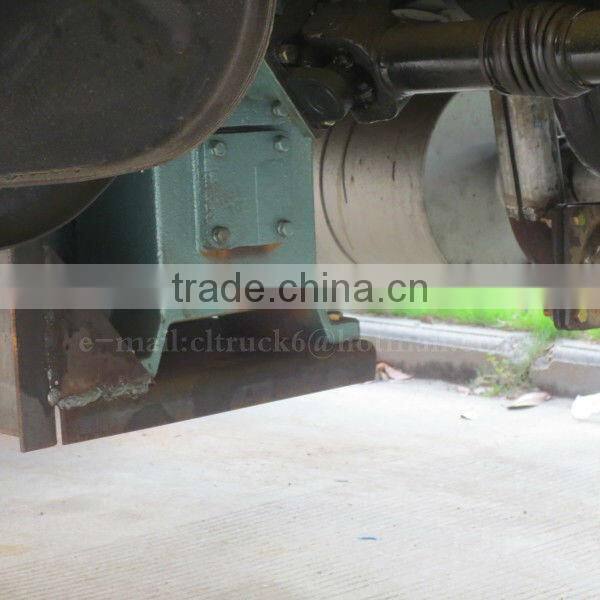

CLW water pump as the following:

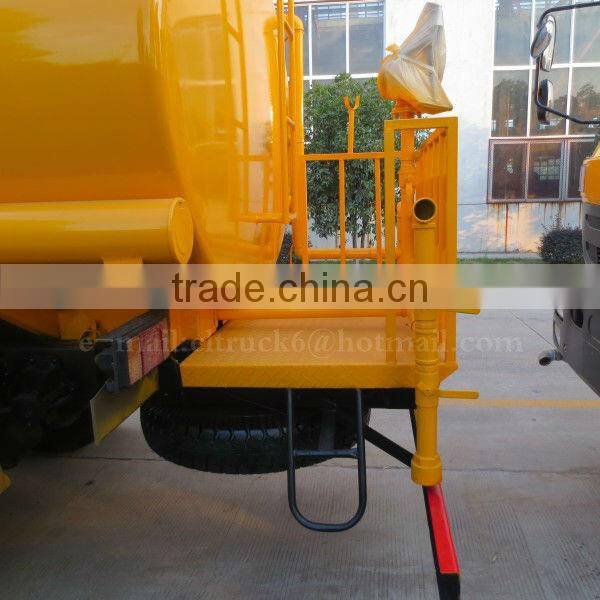

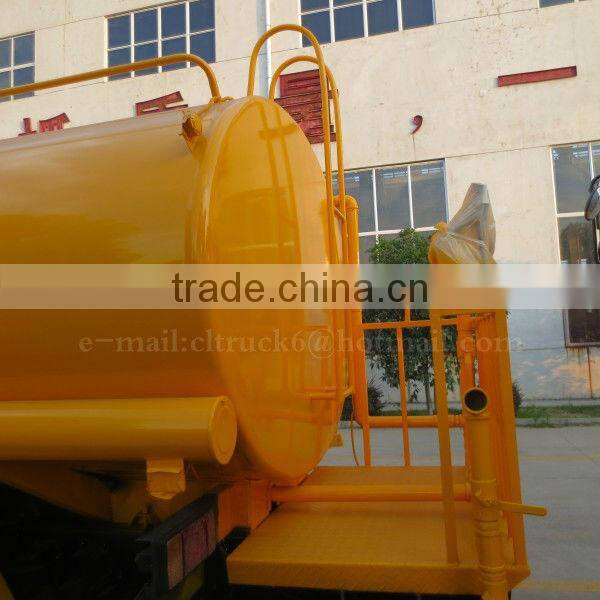

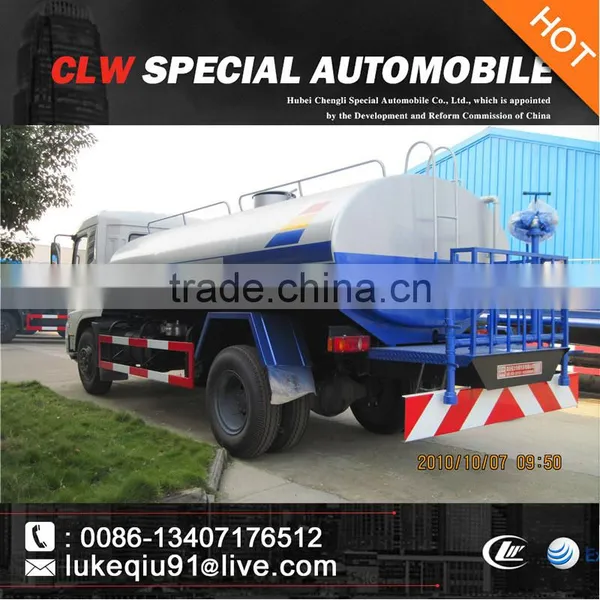

Rear Platform with water cannon:

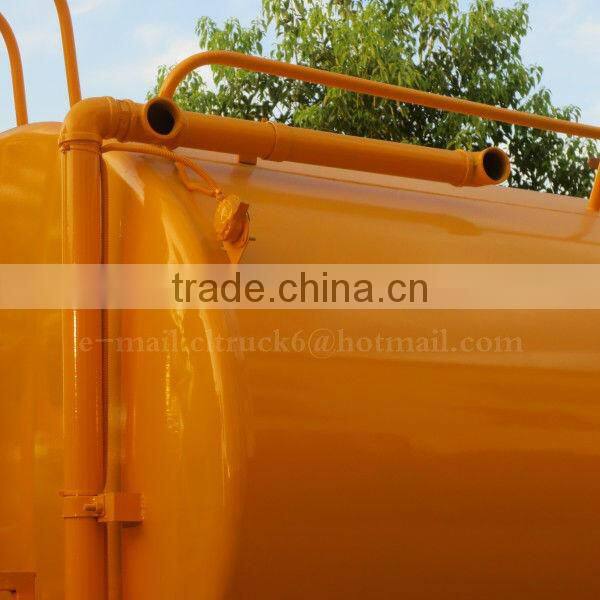

Two showers :

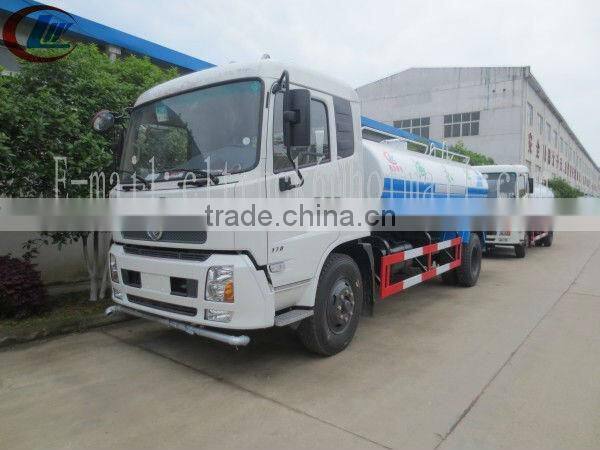

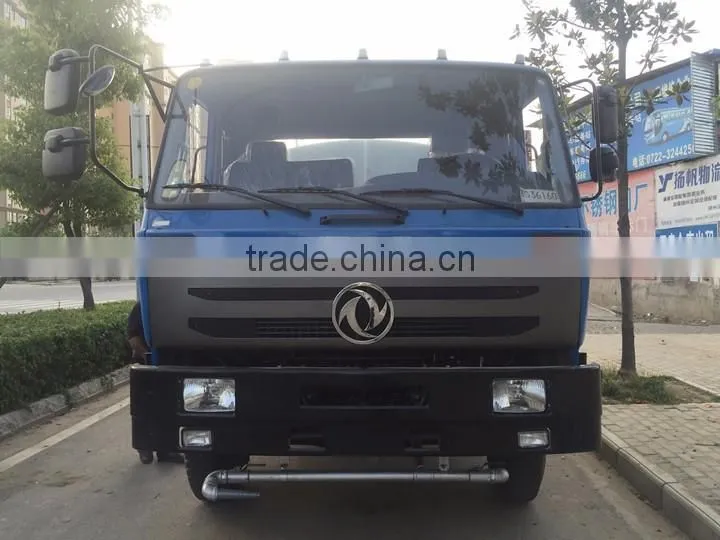

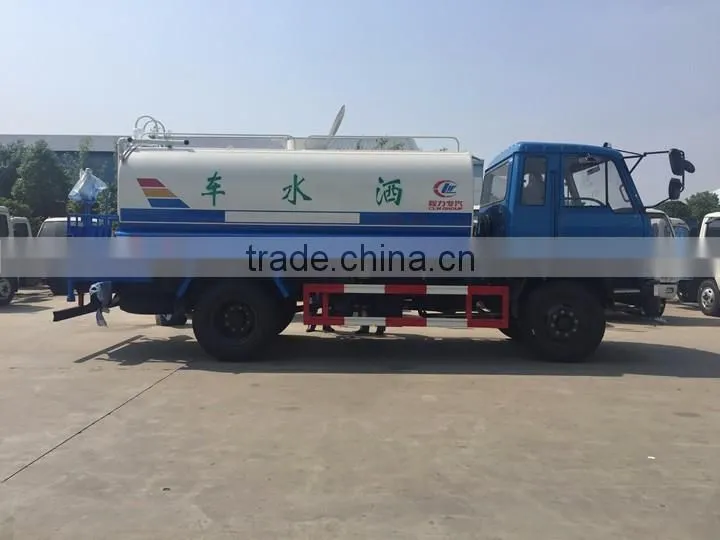

More 10000L Water Truck show as following :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
