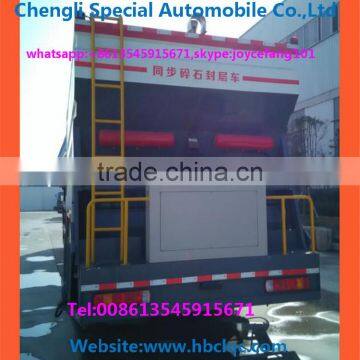

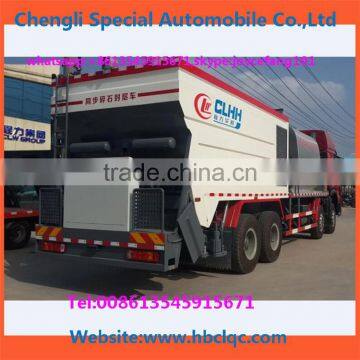

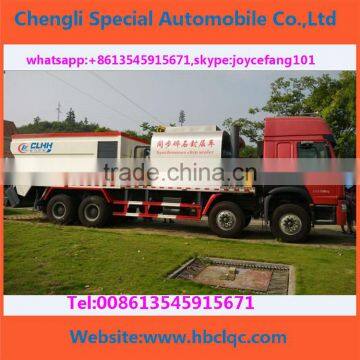

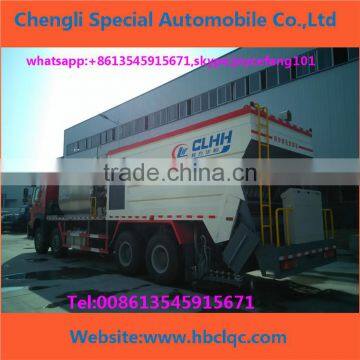

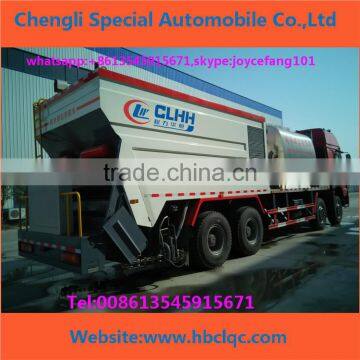

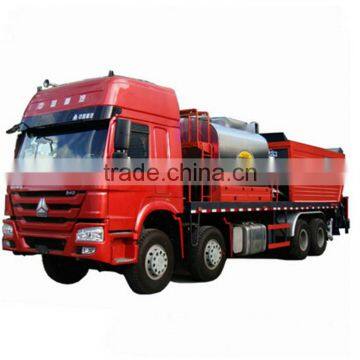

Sinotruck Howo 8*4 For Road Construction Crushed Stone Seal Synchronous Chip Sealer
- 800 Unit / Units per Month
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
- ultrasonic laser paver 11 meters concrete pavement with tire barrier laser paver manufacturers
- Baoying irrigation canal slipform machine/Rectangular ditch forming machine/Trapezoidal canal slipform machine
- Baoying irrigation canal slipform machine/U-shaped canal forming machine/Rectangular groove synovial machine
- Baoying irrigation canal slipform machine/Drain forming machine/Side ditch once forming machine
- Baoying irrigation canal slipform machine/large river canal forming machine/Canal slipform machine
- Highway roadside stone forming machine Roadside stone synovial all-in-one machine
Product Details
Condition: | New | Production Capacity: | 400t/h | Power(W): | 140kw |
Max. Paving Thickness: | 220-300mm | Paving Width: | 3-4.5m | Place of Origin: | Hubei, China |
Brand Name: | Sinotruk | Model Number: | CLW5210TYY | Dimension(L*W*H): | 10493mm*2500mm*3296mm |
Weight: | 31000kg | Certification: | ISO,CCC,BV | Warranty: | 1 Year |
After-sales Service Provided: | Overseas third-party support available |
Product Description
As a professional synchronous asphalt rubber chip sealer manufacturer, using our vast experience and state-of- the art technologies, our asphalt rubber chip sealer achieves an advanced level in terms of quality and performance,
and is widely used for chip sealing of road surface, bridge waterproof and lower seal coat.it features cost-saving ,surface
wear-resistant,anti skidding and waterproof .The normal traffic could be resumed soon after the construction .it applies to the construction of the
highways at different levels .
Main advantage of Asphalt Synchronous Chip Sealer
pact structure, short turning radius, applicable to road construction in mountainous and rural areas, widely applicability
2.Materials fall independently due to gravity, how height to be easily operated in height-limited areas including tunnels and culverts
3.Diesel oil burner heats up asphalt via heat-conducting oil, temperature controlled automatically
4.Automatic control, excellent human-machine interface
5.Recycling and spraying of asphalt are automatically controlled by the cab, easy to operate
6.Built-in stirring device, not only spray the emulsified asphalt, cutback asphalt,base asphalt and modified asphalt, but also rubber
(power) asphalt
7.Independent external power driving force system to ensure scratch spray
8.efficient oil heating system, improve the heating efficiency, reduce construction auxiliary time.
9.All nozzles and pipes are used oil heating, insulation, ensure asphalt cycle smoothly
10.The computer can automatically control the spray amount of work based on the input parameters and radar data,Spray gun
can also be used manually.
11.The manual / automatic are both implemented independently controlled each nozzle, with the easy to adjust spraying width.
12.Good thermal insulation ensure static performance index ≤12 ℃ / 8 hours.
13.After sprayed,high-pressure air can be used to empty the pipeline pitch; and the machine equip with a diesel fuel filler neck,Can be added to an
appropriate amount of diesel fuel, combined with high-pressure air more thoroughly emptied of residual bitumen.
14.Stainless steel plate packaging, corrosion and durable.
Main technical data of Asphalt Synchronous Chip Sealer:
Model | TSF0610A | TSF0814A |
Chassis model | ZZ3257N4647C1 | ZZ3317N4267C1 |
Asphalt spraying width | 0.3-3.8m | 0.3-4.2m |
Spraying quantity | 0.5-2.5kg/m² | 0.5-2.5kg/m² |
Stone spraying width | 0.3-3.8m | 0.3-4.2m |
Asphalt tank capacity | 6000L | 8000L |
Stone storage capacity | 10m³ | 14m³ |
Spray medium | Base Asphalt,Modified asphalt,Diluted asphalt,Emulsified asphalt,Rubber asphalt | |
Asphalt heating way | Automatic diesel oil burner | |
Dimension | 9838*2496*3840mm | 11610*2496*3860mm |
Brand of the main parts of Asphalt Synchronous Chip Sealer:
Name | Brand | Origin |
Chassis | HOWO,8*4,SINOTRUK | China |
Asphalt pump | JOHNSON | Belgium |
Heat-transfer oil pump | JOHNSON | Belgium |
Oil burner | RIELLO | Italy |
Asphalt pump drive motor | SAI | Italy |
Heat-transfer oil drive motor | WHITE | USA |
constant pressure variable pump
| REXROTH | Germany |
Drum drive motor | WHITE | USA |
cartridge valve
| SUN/HydraForce | USA |
control system | MIEMENS
| Germany |
Auxiliary engine | CYD | China |
low-voltage electrical components
| SCHNEIDER,WEIDMULLER | France, Germany |
Construction efficiency has been greatly improved. After long-term technology research of ICOM people, uneven spreading of stone chips of domestic similar products, clear strip in the middle of the road, few stone chips on both sides and other defects have been effectively corrected. Spreading uniformity of stone chips is improved and spreading width of stone chips is effectively guaranteed. The vehicle can be widely used in synchronous seal operation of each grade of highway. It is cost-saving, wear-resisting, anti-skidding and waterproof. After construction traffic can be quickly restored. It is suitable for waterproof of road surface and bridge deck, crushed stone seal technology of the lower seal coat and pavement maintenance and repairing.
Howo Synchronous Chip Spreader is shipped by bulk,ro-ro or container .
Howo Synchronous Chip Spreader Manufacture : Chengli Special Automobile Co.,Ltd
WELCOME TO VISIT OUR FACTORY !
More informations of asphalt synchronous chip sealer
please contact with me :
Ms.Joyce ( Trade manager)
Tel :0086-13545915671
Whatsapp: +86135459145671
Skype :joycefang101
Wechat : 13545915671
