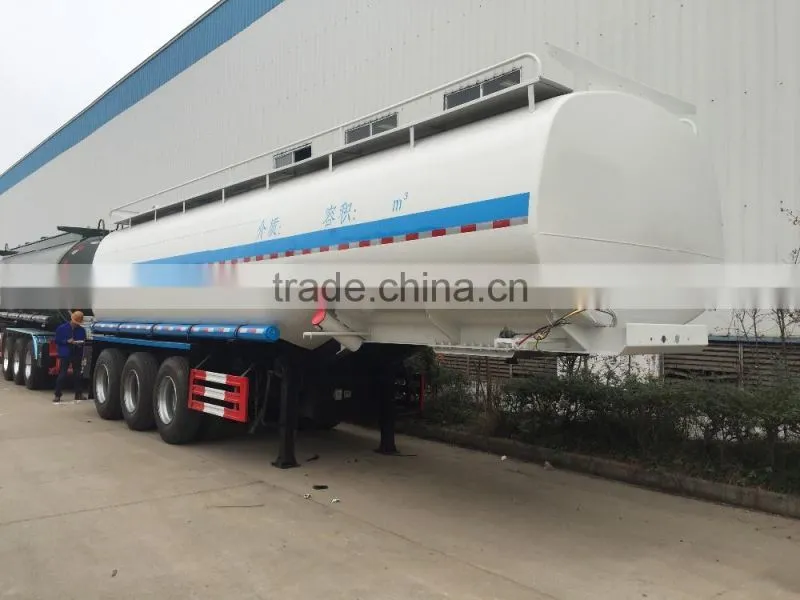

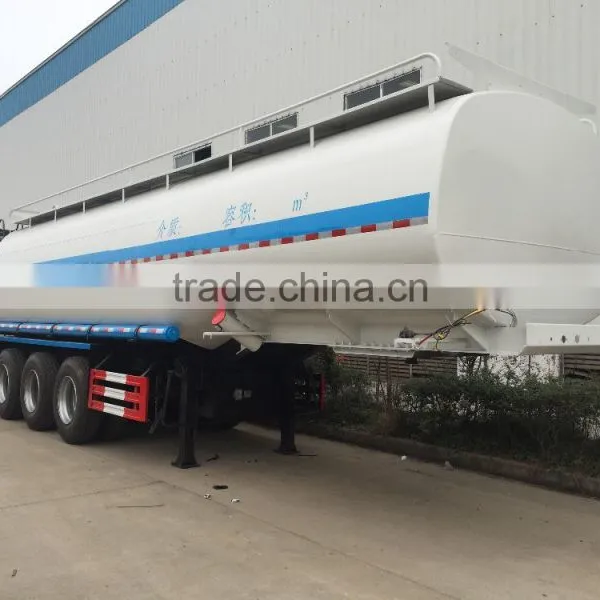

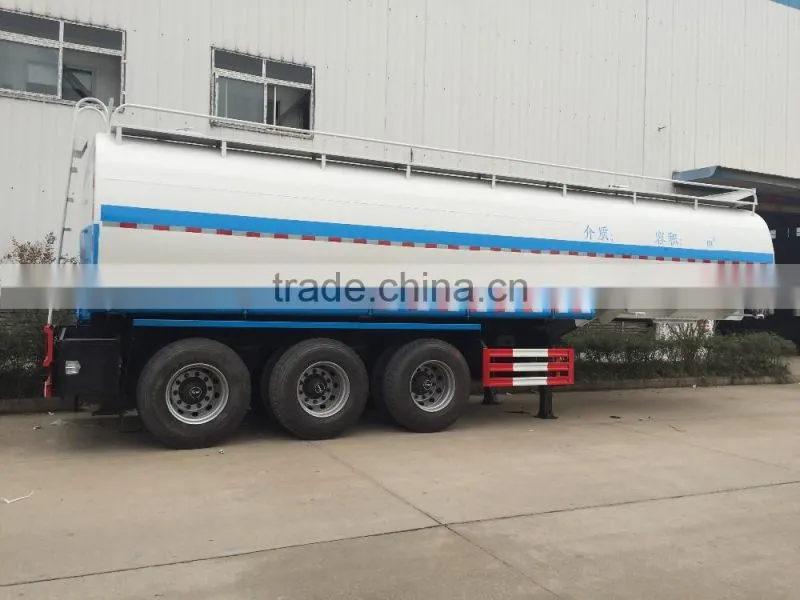

6*4 Chemical Liquid Transport Tank Truck,Hydrochloric Acid or Sulphuric Acid Delivery Truck

US$ 22,000 - 25,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, CCC,ISO,BV,etc.

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port or any other port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, CCC,ISO,BV,etc.

Size 10600*2500*3530mm

OEM No. CLW9400GHYF

Max Payload 40 ton

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9400GHYF

Product Description

6*4 Chemical Liquid Transport Tank Truck,Hydrochloric Acid or Sulphuric Acid Delivery Truck

Standard configurations:

1.Tank material: Q235-B (tank 5mm, head 6mm)

2. Tank interior: lining PE, thick 16mm

3. Head: water head

4. Steel plastic wave proof plate: double corrugated, surface lining plastic PE

5. Sub warehouse

6. Main valve: built in valve

7. Artesian mouth: after the end of a 3 inch artesian mouth, with PP ball valve

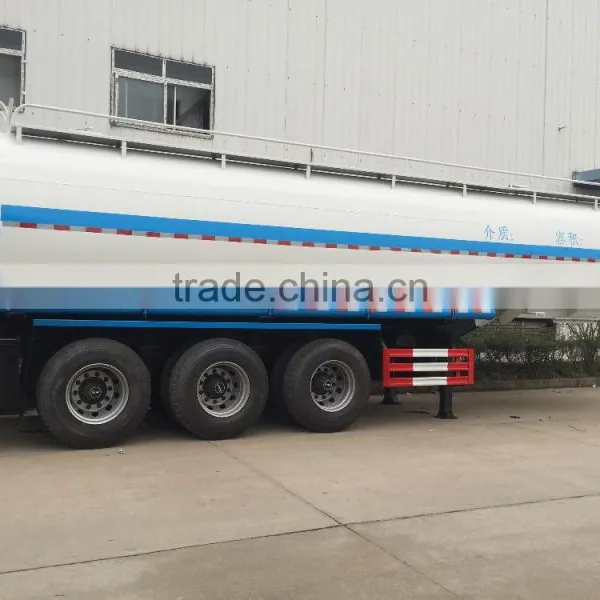

6*4 Chemical Liquid Delivery Tank Truck,Hydrochloric Acid or Sulphuric Acid Transportion Truck

6*4 Chemical Liquid Delivery Tank Truck,Hydrochloric Acid or Sulphuric Acid Transportion Truck

Main Technical Parameters
Product model	CLW9400GHYF
Curb weight	9500Kg
Fact load	30500Kg
Overall G.W.	40000Kg
Overall size	10600×2500×3530mm
Tank
Tank size	10000×2500×1710mm
Tank Inner size	9800×2300×1510mm
Tank material	Q235-B
Tank volume	27 m3

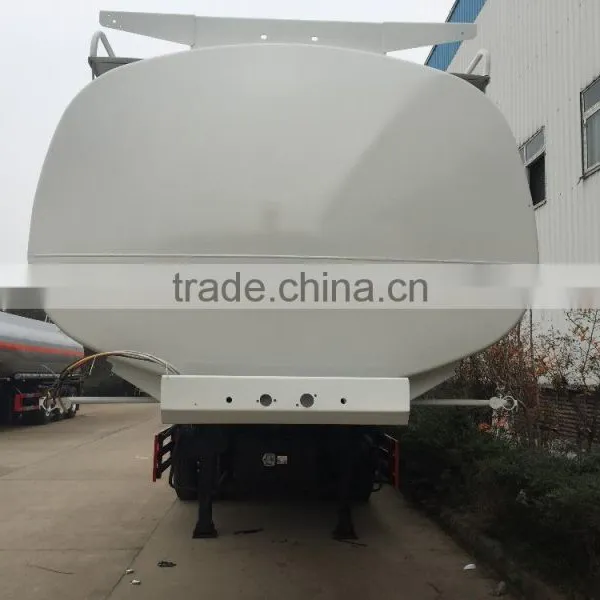

Tank shape	Oval
Medium	Hydrochloric Acid or Sulphuric Acid
Tank color	Any color customer like
Tank thickness	Tank body:5mm; tank head:6mm
Tank inside	16mm PE
Thickness of tank insulation	100mm
Protective material	Q235A carbon steel
Reflecting marking	TM1200-1,HW1400
Head type	Hydraulic head
Corrugated board	Double corrugated, surface lining plastic PE
Warehouse	Whole type or seperate type according to your needs
Main valve	Inside valve

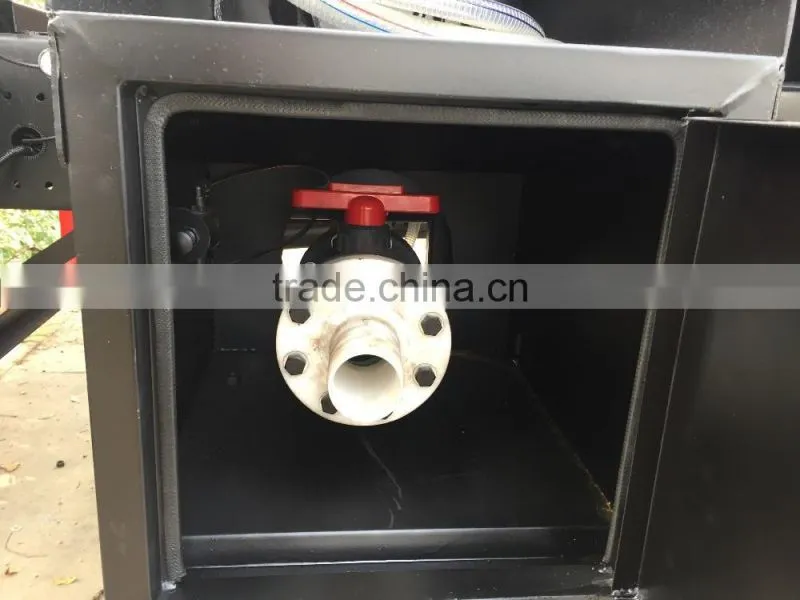

Artesian mouth	Two pcs of 3 inch artesian mouth in the left end and the right end of the trailer, with PP ball valves
Running gear
Suspension	Leaf spring suspension
Wheelbase	4800+1310+1310mm
ABS model	CM2XL-4S/2K(4S/2M)
Tire type	11.00R20
Tire number	12
Springs	8;8;8
Approach/departure angle	18
Overhang F/R	1840/1840mm
Axis load	24000( three axle group)
Number of axles	3

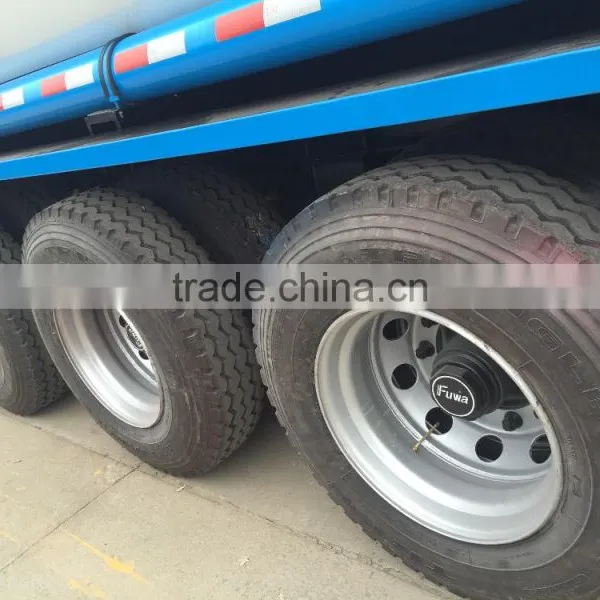

Axles	13T Fuwa axles with ABS

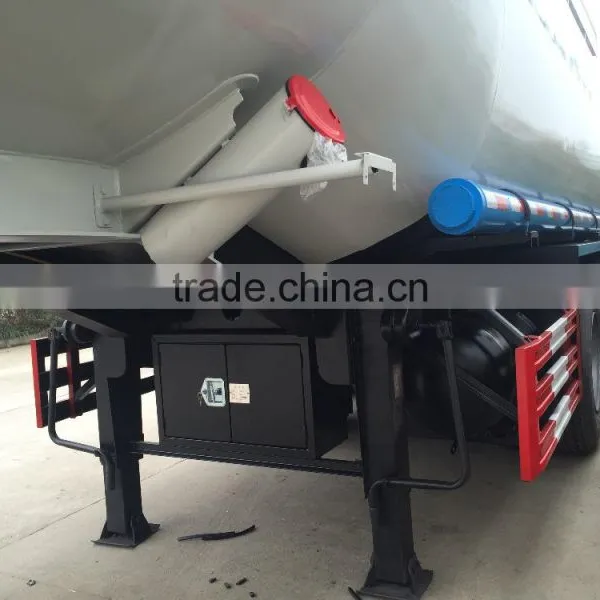

Axles support legs	Single motion lifting legs (Perfectly fit to various road conditions)
Traction pin	90# or 50#
Spare Tire Rack	Chain type
Tool box	1 pcs
Water box	1 pcs
Warrenty	1 year
Certification	CCC, ISO...
Remarks	1.We use steel plastic wave proof plate. It has the advantages of high strength,good anti impac, long life and etc. 2. Optional equipments: PTFE pump.
