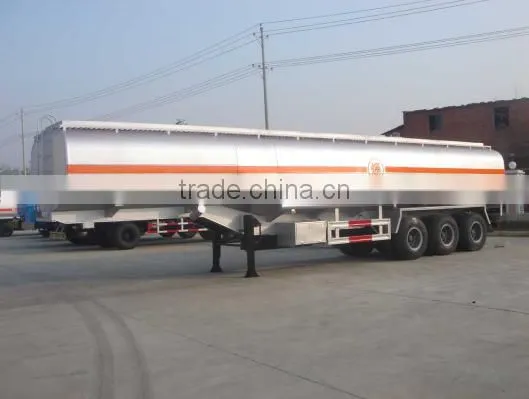

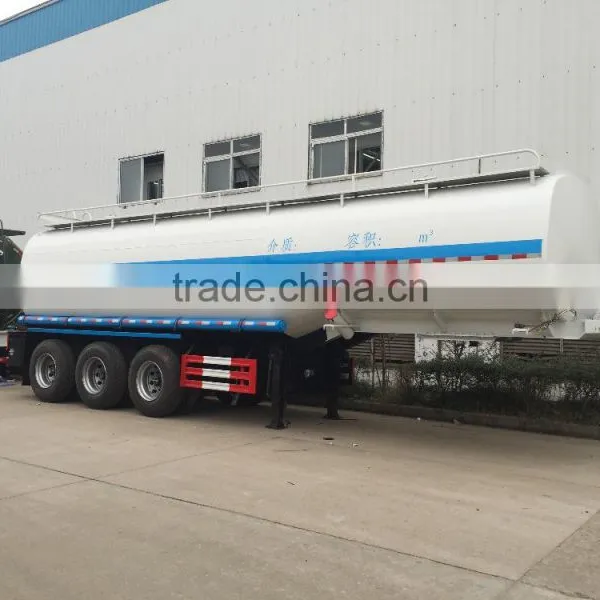

48m3 Aluminum alloy oil Trailer for Africa
Standard configurations:
1.Tank material: Aluminum alloy (tank 5mm, head 6mm)
2. Head: water head
3. Steel plastic wave proof plate: double corrugated, surface lining plastic PE
4. Sub warehouse
5. Main valve: built in valve
6. Artesian mouth: after the end of a 3 inch artesian mouth, with Aluminum alloy ball valve
48m3 Aluminum alloy oil Trailer for Africa48m3 Aluminum alloy oil Trailer for Africa48m3 Aluminum alloy oil Trailer for Africa48m3 Aluminum alloy oil Trailer for Africa
48m3 Aluminum alloy oil Trailer for Africa
| Main Technical Parameters | ||||||
| Product model | CLW9408GY | |||||
| Overall size | 12400×2500×3800(mm) | |||||
| Overall G.W. | 40000(Kg) | |||||
| Curb weight | 7000(Kg) | |||||
| Fact load | 33000(Kg) | |||||
| Tank | ||||||
| Trailer type | Gooseneck type three axles trailer | |||||
| Tank size |
Front half:4100x2490x1900mm; Rear half:7850x2490x2080mm |
|||||
| Tank material | Aluminum alloy | |||||
| Tank volume | 47.4 m3 | |||||
| Tank shape | Oval;gooseneck type | |||||
| Medium | Oil ( Medium density: 0.73 ton/m3) | |||||
| Tank color | Any color customer like | |||||
| Tank thickness | Tank body:5mm; tank head:6mm | |||||
| Reflecting marking | TM1200-1,HW1400 | |||||
| Head type | Hydraulic head | |||||
| Corrugated board | Wave type | |||||
| Warehouse | Whole type or seperate type according to your needs | |||||
| Main valve | Inside valve | |||||
| Artesian mouth |
2 pcs of 3 inch artesian mouth in the left end and the right end of the trailer, with Aluminum alloy ball valves |
|||||
| Running gear | ||||||
| Suspension | Leaf spring suspension | |||||
| Wheelbase | 6200+1310+1310mm | |||||
| ABS model | CM2XL-4S/2K(4S/2M) | |||||
| Tire type | 11.00R20 | |||||
| Tire number | 12 | |||||
| Springs | /8/8/8;-/4/4/4 | |||||
| Trailer saddle | 16000 | |||||
| Protective material | Q235A carbon steel | |||||
| Rear protection size | 140×50mm | |||||
| Rear protection height | 530mm | |||||
| Approach/departure angle | 18 | |||||
| Overhang F/R | 1840/1840mm | |||||
| Axis load | 24000( three axle group) | |||||
| Number of axles | 3 | |||||
| Axles | 13T Fuwa axles with ABS | |||||
| Axles support legs |
Single motion lifting legs (Perfectly fit to various road conditions) |
|||||
| Traction pin | 90# or 50# | |||||
| Spare Tire Rack | Chain type | |||||
| Tool box | 1 pcs | |||||
| Water box | 1 pcs | |||||
| Warrenty | 1 year | |||||
| Certification | CCC, ISO... | |||||
| Remarks |
1.We use steel plastic wave proof plate. It has the advantages of high strength,good anti impac, long life and etc. 2. Optional equipments: PTFE pump. |
|||||
--- Packing: Waxed or nude, and covered with tarpaulin.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
CLW GROUP
ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province. CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province", " Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer, Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America every year.
