Home > Transportation > Trailer > Truck Trailer > 3 Axles Corrosive Material Tank Transport Semi Trailer 30m3

3 Axles Corrosive Material Tank Transport Semi Trailer 30m3

US$ 10,000 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, 3C

Contact Supplier Request Quote Chat Now

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, 3C

Size 10000*2500*3700

Max Payload 32000

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW940*GHY

3 Axles Corrosive Material Tank Transport Semi trailer 30m3

Corrosive Material Tank Transport Semi trailer is also called semitrailer transport truck,is widely used in transporting kinds of van or tank container or tanker . It has large loading volume , solid ,etc features.

Main parameter of 3 Axles Corrosive Material Tank Transport Semi trailer 30m3

Main Technical Parameter
Product Name	CLWCorrosive Material Tank Transport Semi trailer	*Overall Dimension(LWH)(mm)*	10000×2500×3700
Tank Volume(m³)	30	Tank Dimension(mm)	960024801750
Gross weight (kg)	40000	Approach/ departure angle (° )	-/16
Payload(kg)	Approx 32000	Front/ rear suspension(mm)	-/1450
Curb weight(kg)	8000	Leaf Spring number:	-/8/8/8
Axle number	3	Front/Rear axle load(Kg)	-/39000 (three axles combined)
Wheelbase(mm)	4750+1310+1310	Rear tread(mm)	1840/1840/1840
Tire size	11.00R20 12PR	Tire No:	12
Warranty	12 months, from the date of supply
Remarks	1. Traveling mechanism:13T FUWA axle
	2 Tank inner lining plastic, tank thickness is 6mm carbon steel, Round tank
	3. The distance from the floor to rear protective is 540mm, protect material: Q235 carbon steel. With ABS
	4. This semi trailer truck mainly used in transportHydrochloric acid , etc corrosive liquid

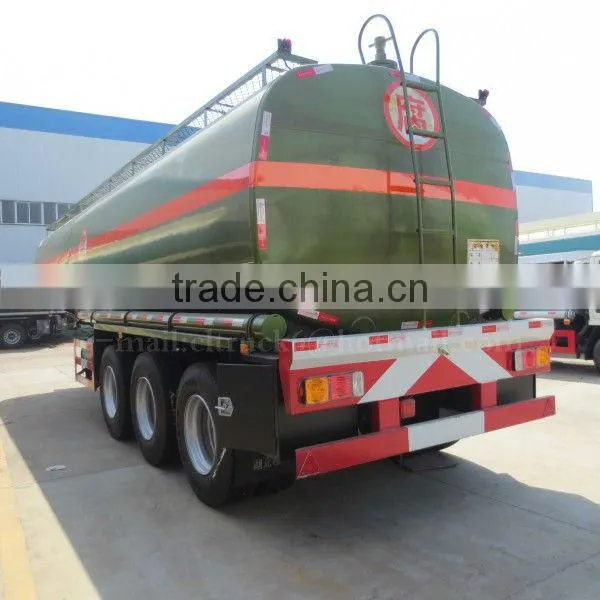

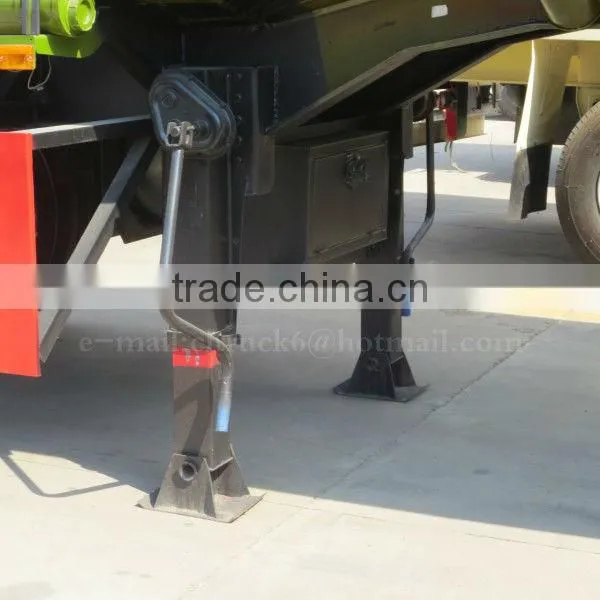

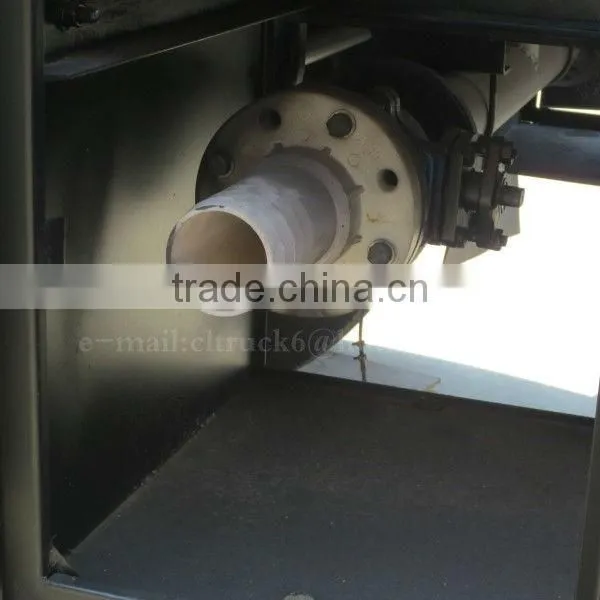

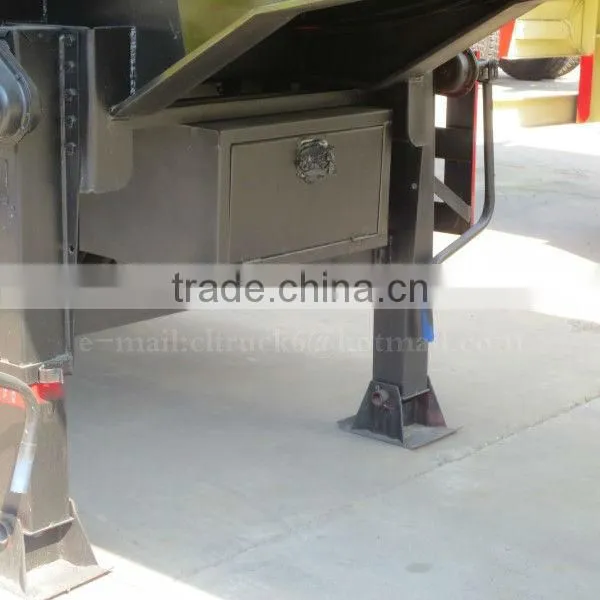

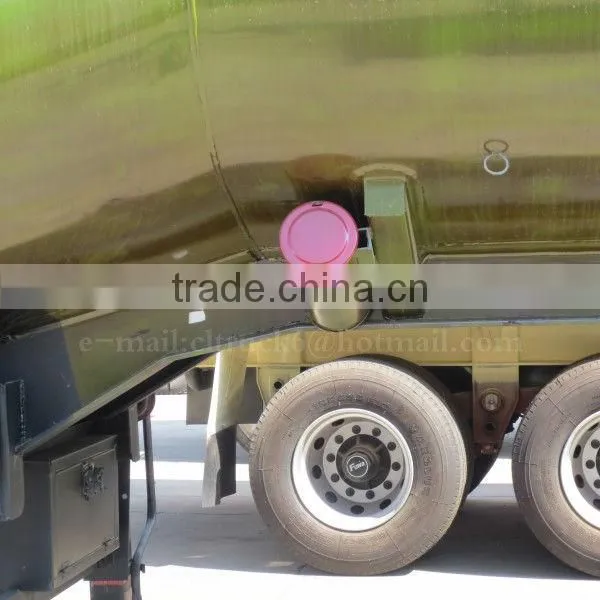

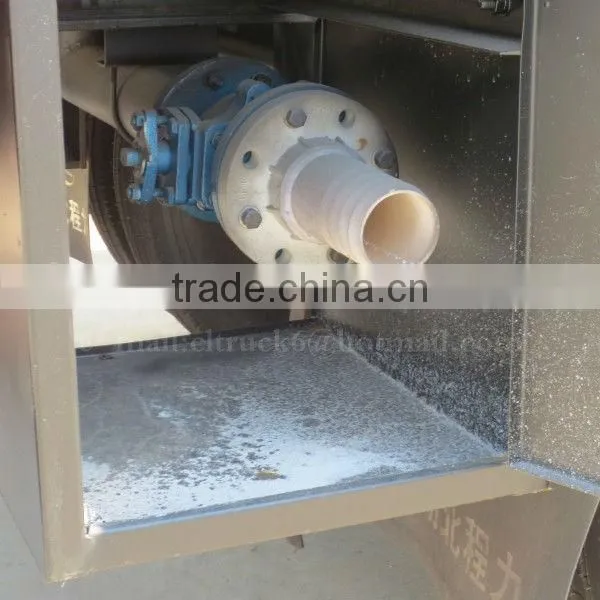

This Corrosive Material Tank Transport Semi trailer show as following:

Brief Introduction of Company:

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.

Our certificates;

Production Equipments:

If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
