Fuel Tank Transport Semi-trailer with FAW 390HP Tractor
Fuel Tank Transport Semi-trailer is also called Multi-axis Fuel Trailer , Multiaxial Transport Semitrailer ,Semi -trailer truck ,semitrailer transport truck,is widely used in transporting kinds of van or tank container or tanker. It has large loading volume , efficient ,time-saving,etc features.
Production notes:
1 Factory direct sale
2 High quality, low price
3 Load gasoline 34 ton
4 Fuwa 3 axles
5 with Faw tractor, use more convenient
Main Technical Parameter ofFuel Tank Transport Semi-trailer with FAW 390HP Tractor | |||
Product Model | Fuel Tank Transport Semi-trailer | Overall Dimension(L*W*H)(mm) | 12990×2500×3900 |
Tank Volume(m3) | 49 | Tank Dimension(mm) | Front-end(3900*2500*1900) rear-end(8600*2500*2150) |
Gross weight (kg) | 40000 | Approach/ departure angle (° ) | -/16 |
Payload(kg) | 32830 | Front/ rear suspension(mm) | -/1870 |
Curb weight(kg) | 7170 | Leaf Spring number: | -/8/8/8,-/10/10/10 |
Axle number | 3 | Front/Rear axle load(Kgs) | -/24000(three-axis combined) |
Wheelbase(mm) | 7200+1310+1310 | Rear tread(mm) | 1840/1840/1840 |
Tire size | 11.00-20 12PR,11.00R20 12PR | Tire No: | 12 |
Superstructure parameters | 1.Protective material: carbon steel, storage medium: gasoline | ||
2.tank thickness 5mm carbon steel | |||
3. 13ton FUWA axle, 90 saddle | |||
4. Use the tractor equipped with speed limit device better | |||
Warranty | 12 months, from the date of supply | ||
With 390HP FAW 6*4 Tractor
Main Technical Parameter of 390HP FAW 6*4 Tractor | |||
Product Model | CA4250P66K22T1A1EX Tractor | Overall Dimension(L*W*H)(mm) | 7190×2495×3560 |
Gross weight (kg) | 25000 | Approach/ departure angle (° ) | 18/40 |
Payload(kg) | / | Total Mass of Quasi-trailer(Kg) | 38605 |
Curb weight(kg) | 10200 | Max Speed (km/h) | 107 |
Cab capacity | 2 | Cab Type | J6p Cab with air conditioning |
Chassis Technical Parameter | |||
Gear Box | 12JS160T (Fuller 12 speeds) | Transmission type: | Manual |
Brake System | Double-circulate brake system with ABS | Leaf Spring number: | 10/11,12/12 |
Axle number | 3 | Front/Rear axle load(Kg) | 7000/18000(double axle combined) |
Wheelbase(mm) | 3450+1350 | Front/Rear tread(mm) | 2050,1830/1830 |
Front/ rear suspension(mm) | 1500/890 | Steering Type | LHD(Power steering) |
Tire size | 11.00R20,12.00R20 | Traction Type: | 6*4 |
Engine specification | |||
Engine Model: | CA6DN1-39E3 | Engine Brand | Jiangsu wuxi Diesel |
Emission stand | Euro 3 | Displacement(ml) | 12530 |
Fuel type: | Diesel | Power(kw) | 287/390HP@1900RPM |
Other equipment | Equipped with ABS and driving recorder , 90mm saddle | ||
Optional Equipped with speed limit device, (Limit speed 80km/h) | |||
Warranty | 12 months, from the date of supply | ||

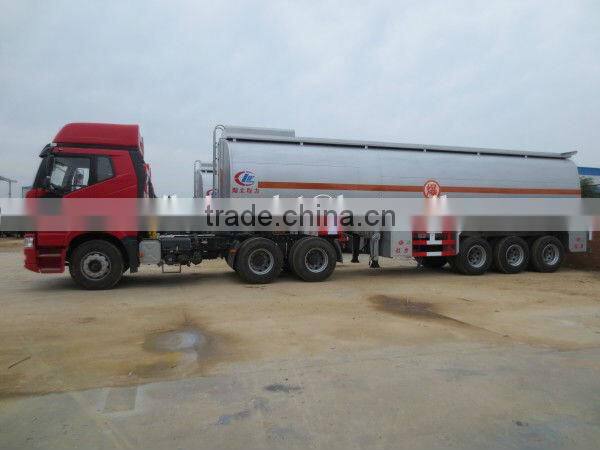

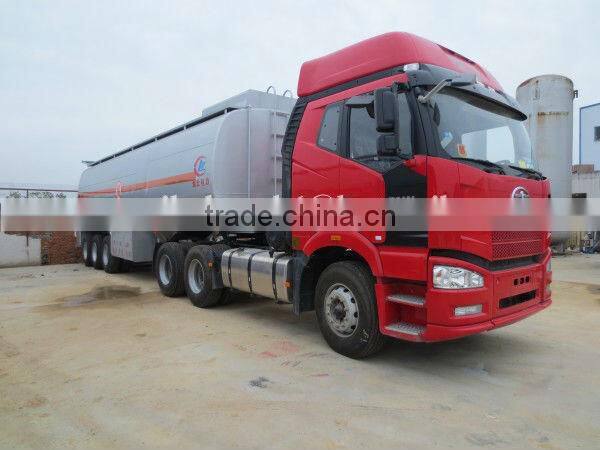

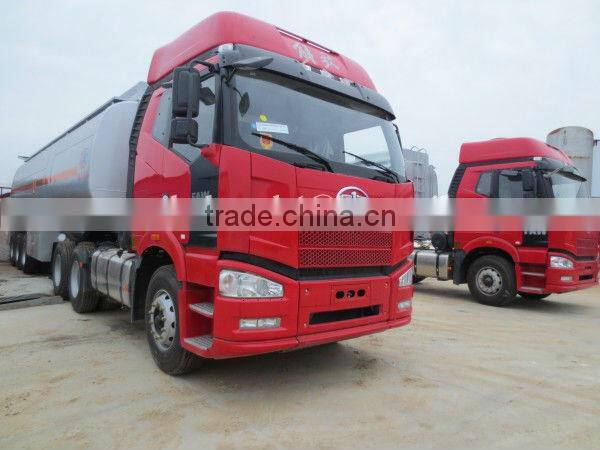

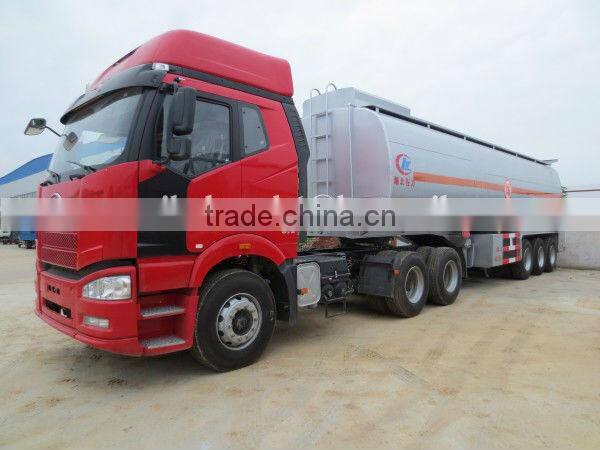

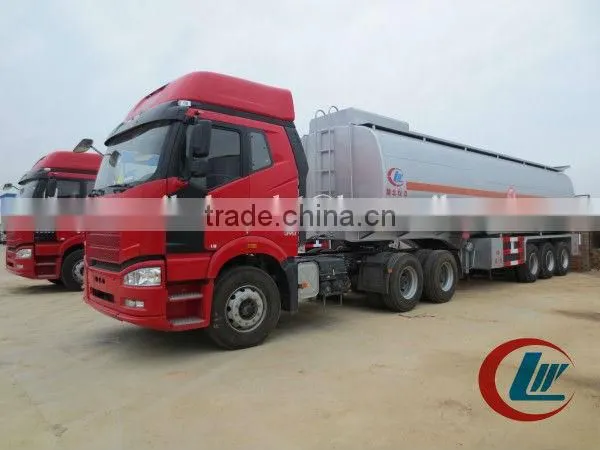

This Fuel Tank Transport Semi-trailer with FAW 390Hp Tractor show as following:
Hubei ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;
Production Equipments:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
