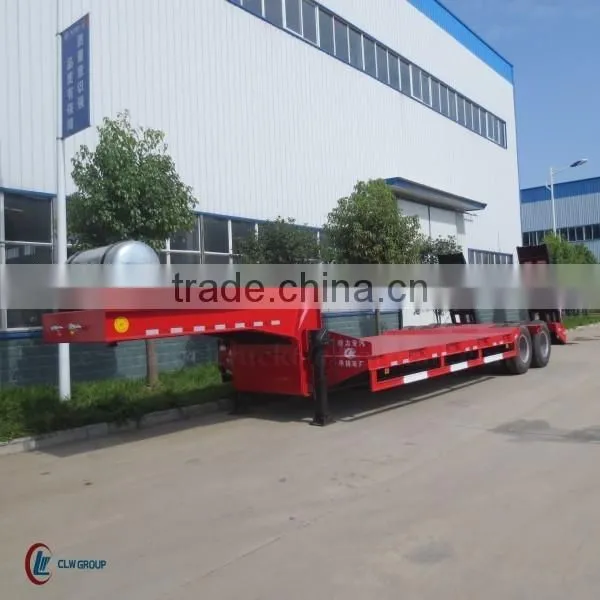

CLW 2 Axle 40 ton Low Flatbed Trailer
Low Flatbed Trailer is also called flatbed transport semi trailer, construction machinery transporter , mainly used in transporting excavator, loaders, harvesterand other not disassemble objects. Our company also manufacture Dongfeng Jinba flatbed truck, Dongfeng Doulika Flatbed truck, Dongfeng 145 flatbed truck, Dongfeng 153bed Flat truck, Dongfeng 8x4 flatbed truck, Dongfeng 6x4 flatbed truck, and other brand such as Faw, foton , JAC Flatbed truck,load weight range from 3 ton to 35tons.
Production notes:
1 Factory direct sale
2 High quality
3 Load more than 40ton
4 Fuwa widened 2 axle,28ton manual outrigger
Main Parameter of CLW 2 Axle 40 ton Low Flatbed Trailer
Main Technical Parameter | |||
Product Name | CLW Low Flatbed Trailer | Overall Dimension(L*W*H)(mm) | 12000×3000×2900 |
Gross weight (kg) | 46200 | Approach/ departure angle (° ) | -/16 |
Payload(kg) | 40000 | Front/ rear suspension(mm) | -/1560 |
Curb weight(kg) | 6200 | Leaf Spring number: | -/8/8 or -/10/10 |
Axle number | 2 | Front/Rear axle load(Kg) | -/26000 (two axle combined) |
Wheelbase(mm) | 8200+1320 | Rear tread(mm) | 2180/2180 |
Tire size | 8.25R20 16PR | Tire No: | 8 with a spare tire |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Equipped with FUWA 13ton widened axle, 5mm carbon steel tread plate | ||
2. Total length: 9m, and equipped with TWO 28ton outrigger, 8.25R20 steel tire, payload more than 40000kg | |||
Multi-dimensional map of CLW 2 Axle 40 ton Low Flatbed Trailer :
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;
Factory Show:
Production Equipments:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
