CLW 3 axle Flatbed Trailer 60 ton with North Ben Tractor Head
- 400 Set / Sets per Month
- flatbed trailer
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Type | Semi-Trailer | Material | Steel | |
Certification | Other, 3C | Size | 13000*2500*1500,2820 | |
OEM No. | CLW9400P | Max Payload | 60000 | |
Place of Origin | Hubei, China | Brand Name | CLW | |
Model Number | CLW9400P |
Product Description
CLW 3 axle Flatbed Trailer 60 ton with North Ben Tractor Head
Flatbed Trailer is widely used in transporting kinds of heave duty goods, such as stone, cement, etc, of course it can also transport tank container or container when it is equipped with container lock. It have high effienciency, low cost, loading capacity large, etc features.
Product Introduction:
1 Load stone, cement, etc heave duty goods;
2 can Load container or tank container when equipped with lock
3 Factory direct sale, low price
4 load 60ton
Main Technical parameter of CLW 3 axle Flatbed Trailer 60 ton with North Ben Tractor Head
Main Technical Parameter | |||
Product Name | CLW Flatbed Trailer | Overall Dimension(L*W*H)(mm) | 13000×2500×1500,2820 |
Payload(kg) | 60000 | Front/ rear suspension(mm) | -/1440 |
Curb weight(kg) | 7500 | Leaf Spring number: | -/8/8/8 |
Axle number | 3 | Front/Rear axle load(Kg) | -/39000(three axles combined) |
Wheelbase(mm) | 6950+1310+1310 | Rear tread(mm) | 1840/1840/1840 |
Tire size | 11R20 or 12R22.5 12PR | Tire No: | 12 |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Protect material: Q235 carbon steel. With ABS, with 90# king kin, 28ton bilateral interaction manual outrigger | ||
2. Optional equipped with front sideboard | |||
2. This semi-trailer is mainly used in transporting stone, cement,etc heavy duty goods, can also load tank container or containers when equipped with container lock |
Main Technical parameter of North Ben Tractor Head
Main Technical Parameter | |||
Product Name | North Ben Tractor Head | Overall Dimension(L*W*H)(mm) | 7135×2495×3180 |
Steering type | LHD with power steering | Total Mass of Quasi-trailer(Kg) | 60000 |
Curb weight(kg) | 9200 | Max Speed (km/h) | 99 |
Cab capacity | 3 | Cab Type | Mid long cab, single sleeper, air conditionng |
Gear Box | FAST 12 speeds | Transmission type: | Manual |
Brake System | Double-circulate brake system with ABS | Leaf Spring number: | 13/13 |
Axle number | 3 | Wheelbase(mm) | 3450+1450 |
Tire size | 12.00R20 14PR | Traction Type: | 6*4 |
Engine specification | |||
Engine Model: | WP10.380E32 | Engine Brand | WeiChai |
Emission stand | Euro 3 | Displacement(ml) | 9726 |
Fuel type: | Diesel | Power(kw) | 280/380HP |
Other equipment | Equipped with ABS, 90# or 50# saddle | ||
Equipped with speed limit device, (Limit speed 80km/h) | |||
Warranty | 12 months, from the date of supply |

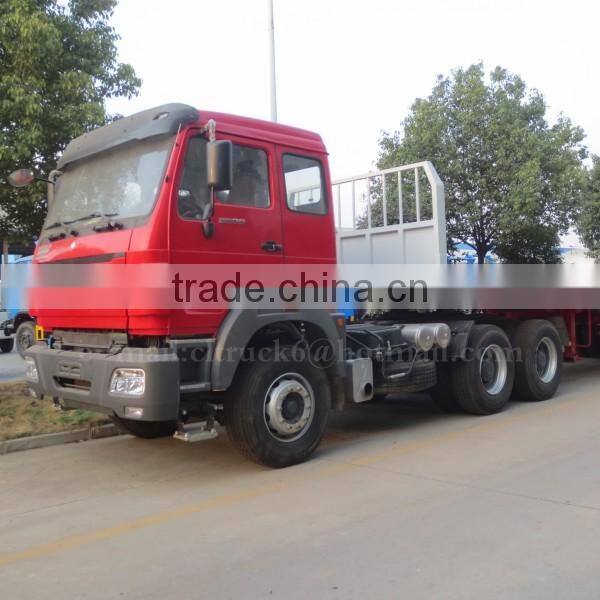

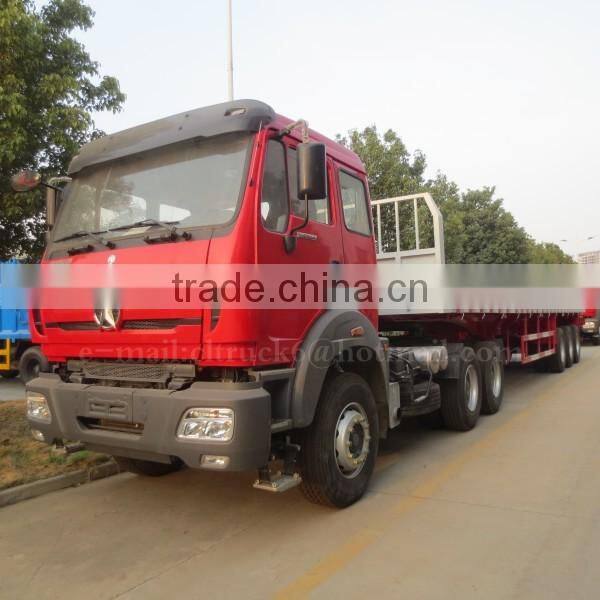

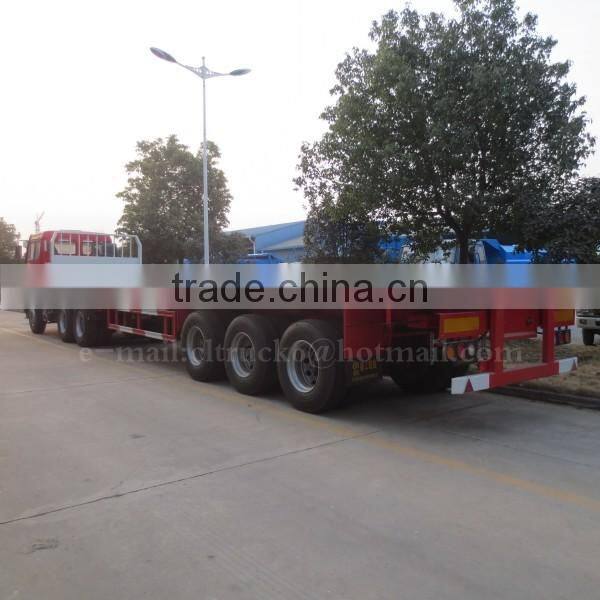

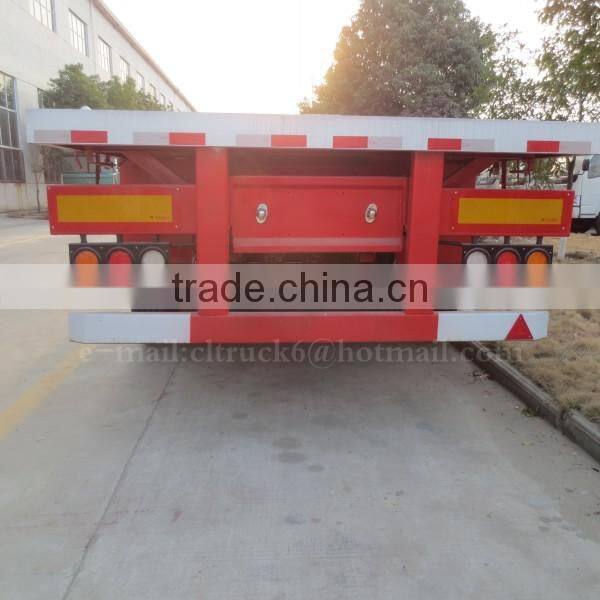

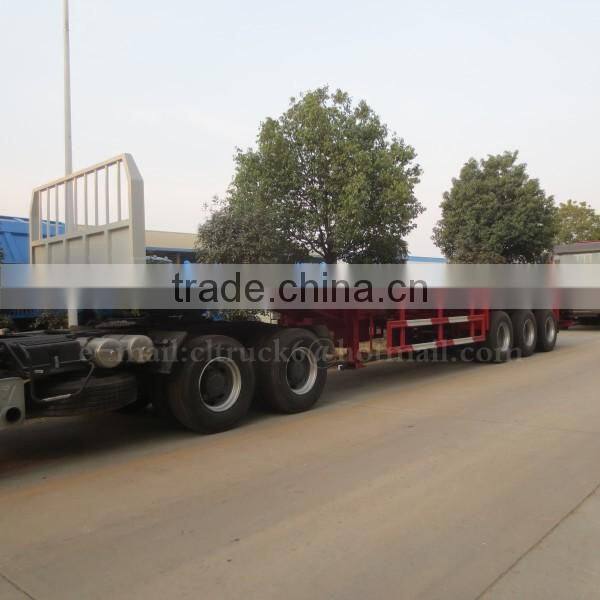

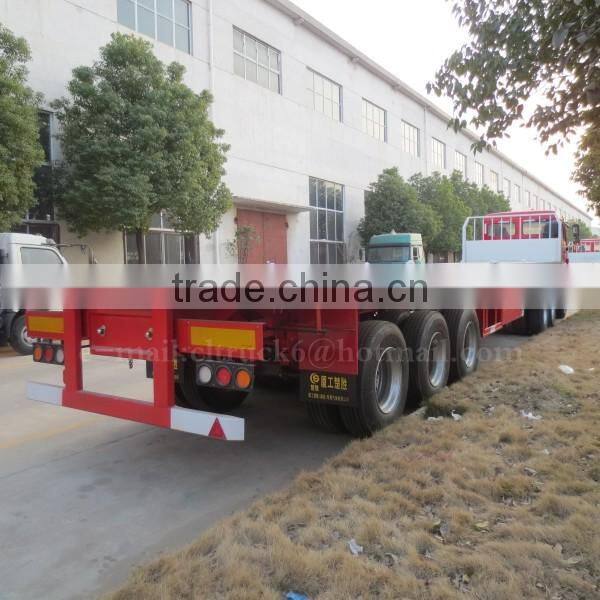

Multi-faceted show of CLW 3 axle Flatbed Trailer 60 ton with North Ben Tractor Head :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our certificates;
Production Equipments:
Contact Information:
Any question, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
Contact Us
- Chengli Special Automobile Co., Ltd.
- Contact namePeter Yu Chat Now
- Phone86-27-0086-13871143958
- Address3104 Room,7th building,fanhai Soho district, Wuhan City, Hubei Province, Suizhou, Hubei
