Home > Transportation > Trailer > Truck Trailer > CLW 3 Axle Flatbed Semi Trailer 50 Ton With JAC Tractor Head

CLW 3 Axle Flatbed Semi Trailer 50 Ton With JAC Tractor Head

Chengli Special Automobile Co., Ltd.

CLW 3 Axle Flatbed Semi Trailer 50 Ton With JAC Tractor Head photo-1

US$ 19,600 - 21,900 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, 3C

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, 3C

Size 13000*3000*2900

OEM No. CLW9400

Max Payload 50000

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9400

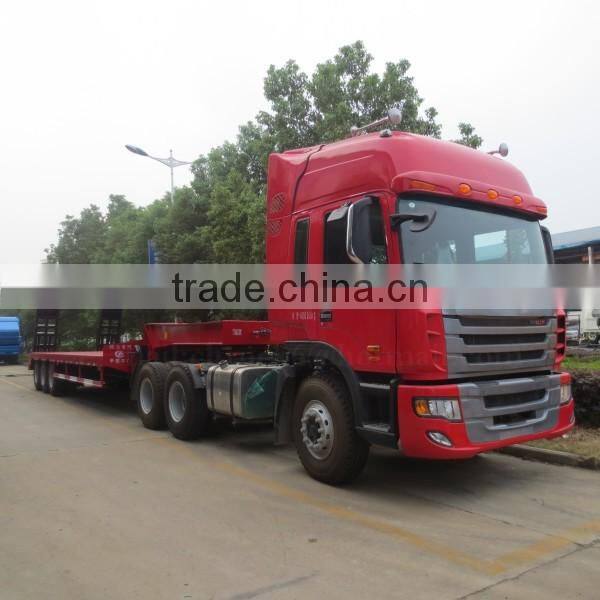

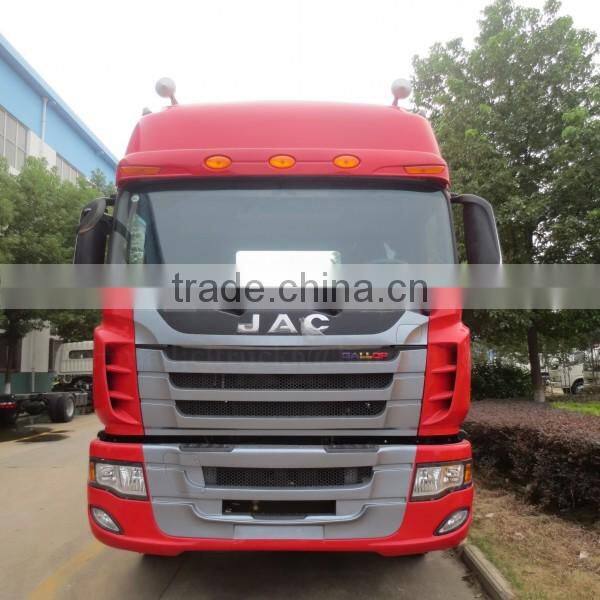

CLW 3 axle Flatbed Semi Trailer 50 ton with JAC Tractor Head

Flatbed Semi Trailer 50 ton is also called flatbed transport semi trailer, construction machinery transporter , mainly used in transporting excavator, loaders, harvesterand other not disassemble objects. Our company also manufacture Dongfeng Jinba flatbed truck, Dongfeng Doulika Flatbed truck, Dongfeng 145 flatbed truck, Dongfeng 153bed Flat truck, Dongfeng 8x4 flatbed truck, Dongfeng 6x4 flatbed truck, and other brand such as Faw, foton , JAC Flatbed truck,load weight range from 3 ton to 35tons.

Production notes:

1 Factory direct sale
2 High quality
3 Load more than 50ton
4 Fuwa widened 3 axle,28ton TWO outrigger

Main Parameter of CLW 3 axle Flatbed Semi Trailer 50 ton with JAC Tractor Head

Main Technical Parameter
Product Name	CLW Flatbed Semi Trailer 50 ton	*Overall Dimension(LWH)(mm)*	13000×3000×2900
Payload(kg)	50000	Front/ rear suspension(mm)	-/1560
Curb weight(kg)	9500	Leaf Spring number:	-/8/8/8 or -/10/10/10
Axle number	3	Front/Rear axle load(Kg)	-/39000 (three axles combined)
Wheelbase(mm)	6480+1360+1360	Rear tread(mm)	1840/1840/1840
Tire size	11:00R20 16PR	Tire No:	12 with a spare tire
Warranty	12 months, from the date of supply

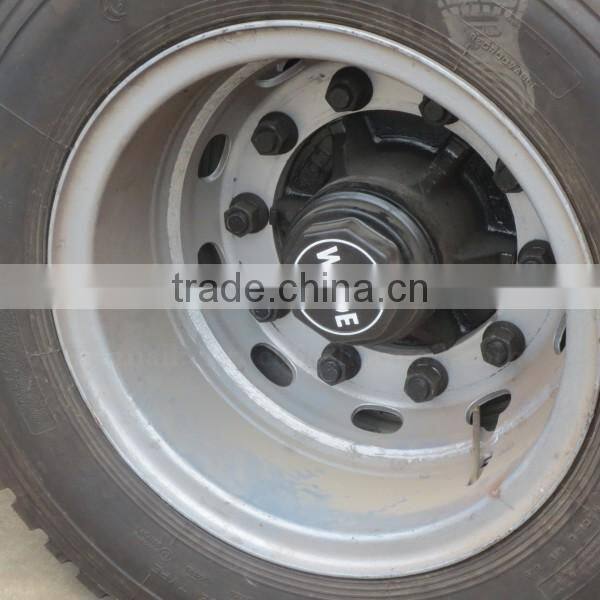

Remarks	1. Equipped with FUWA 13ton widened axle, 5mm carbon steel tread plate
Remarks	2. Total length: 13m, and equipped with TWO 28ton outrigger, 8.25R20 steel tire, payload more than 50000kg

Multi-dimensional map of CLW 3 axle Flatbed Semi Trailer 50 ton with JAC Tractor Head :

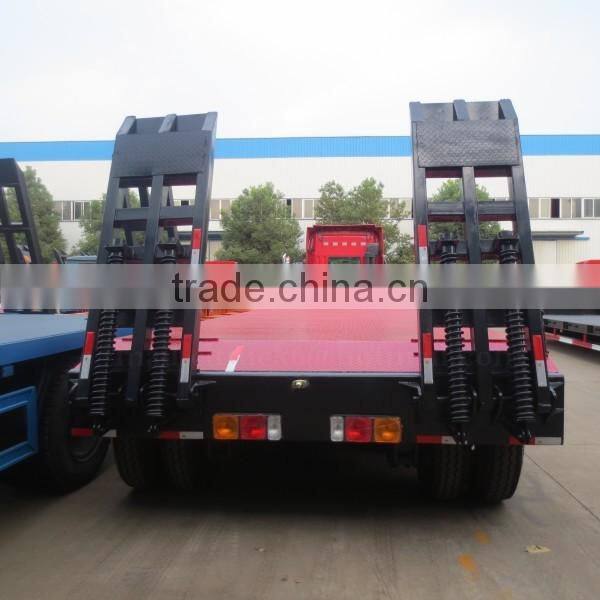

28 ton Outrigger:

Carbon Steel Tread Plate :

Rear spring ladder

Brief Introduction of Company:

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.

Our certificates;

Production Equipments:

Contact Information:

If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
