CLW 3 Axles Refrigerated Semi Trailer 40 ton
Refrigerated Semi Trailer is also called Refrigerator Trailer , Multiaxial refrigeration Transport Semitrailer ,,is widely used in transporting kinds of refrigerated or frozen foods or goods. It has large loading volume , efficient ,time-saving,etc features.
Production notes:
1 Factory direct sale, with ISO9001 and 3C certificate
2 High quality, low price
3 Fuwa 3 axles ,load more than 40 ton
4 High efficiency, economical
Main Technical Parameter of CLW 3 Axles Refrigerated Semi Trailer 40 ton
Main Technical parameter | |||
Product Model | CLW Refrigerated Semi Trailer | Overall Dimension(L*W*H)(mm) | 14600×2550×4000 |
Compartment Volume(m3) | 68 | Compartment Dimension(L*W*H)(mm) | 13820×2330×2410,2360 |
Curb weight(kg) | 7170 | Payload(kg) | Approx 40000 |
Leaf Spring number: | -/7/7/7, -/10/10/10 | Front/Rear axle load(Kg) | -/39000 (three-axis combined) |
Wheelbase(mm) | 7980+1310+1310 | Axle number | 3 |
Tire size | 11.00R20 12PR or 12R22.5 12PR | Number of Tire: | 12 |
Warranty | 12 months, from the date of supply | ||
Remarks | 1. Don’t open at the top, open side door | ||
2. Equipped with KINGTEC independent refrigeration unit(optional other brand) | |||
3. Minimum temperature can be dropped to -10 °C. | |||
4. Material: FRP inside and outside, 10cm thickness polyurethane foam middle. | |||

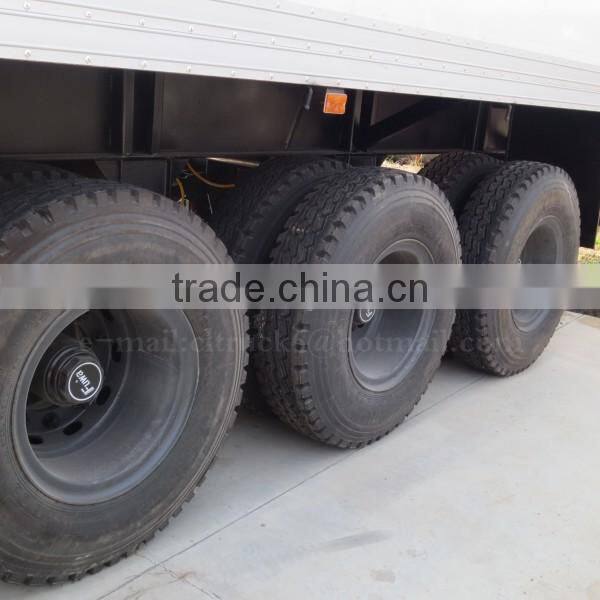

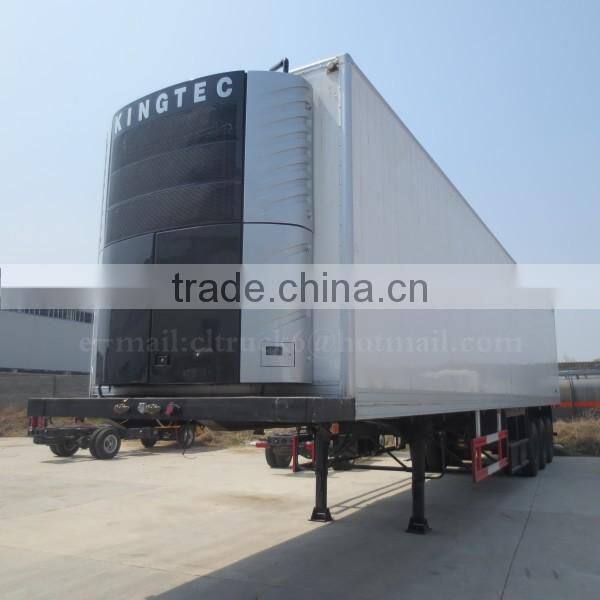

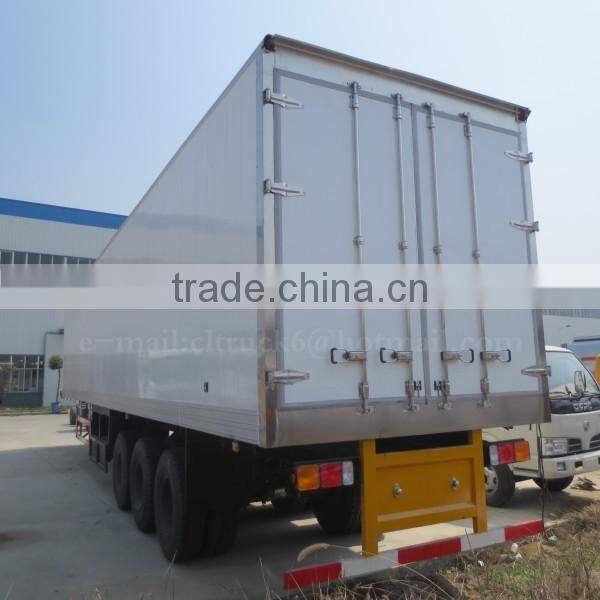

More Picture of CLW 3 Axle Refrigerated Semi Trailer 40 ton :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
