CLW 3 Axles European Standard Oil Tank Trailer 55000L

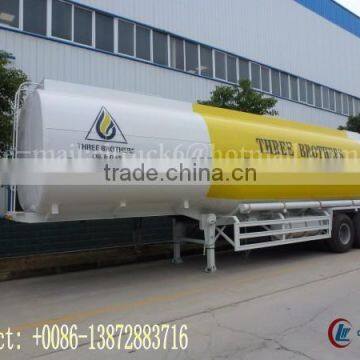

CLW 3 Axles European Standard Oil Tank Trailer 55000L photo-1
US$ 21,500 - 29,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, 3C
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Type Semi-Trailer
Material Steel
Certification Other, 3C
Size 12990*2500*3900
OEM No. CLW9409
Max Payload 38500
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW9409







CLW 3 axles European Standard Oil Tank Trailer 55000L



              European Standard Oil Tank Trailer is also called  Multi-axis Fuel Trailer , Multiaxial Transport Semitrailer ,Semi -trailer truck ,semitrailer transport truck,is widely used in  transporting kinds of van or tank container or tanker. It has large  loading volume  , efficient ,time-saving,etc features.



Production notes:



1 Factory direct sale

2 High quality, low price
3 Load gasoline 38.5 ton

4 Fuwa 3 axles

5 with tractor, use more convenient





Main Technical Parameter of   CLW 3 axles European Standard Oil Tank Trailer 55000L





Main Technical parameter

Product Model

CLW European Standard Oil Tank Trailer

Overall Dimension(L*W*H)(mm)

12990×2500×3900

Tank Volume(L)

55000

Tank Dimension(mm)

Front-end(3900×2500×1900)

rear-end(8600×2500×2150)

Gross weight (kg)

Approx 40000

Approach/ departure angle (° )

-/16

Payload(kg)

Approx 38500

Front/ rear suspension(mm)

-/1870

Curb weight(kg)

7170

Leaf Spring number:

-/8/8/8, -/10/10/10

Axle number

3

Front/Rear axle load(Kg)

-/39000 (three-axis combined)

Wheelbase(mm)

5760+1310+1310

Rear tread(mm)

1840/1840/1840

Tire size

11.00R20 12PR

Number of Tire:

12

Warranty

12 months, from the date of supply

Remarks

1. Tank material: 6mm Carbon Q235, optional stainless steel, Aluminum Alloy,

2. Equipped with 2 oil pipe, one compartment, one gravity valve,one rear ladder , optional more compartment or optional add one oil pump

3. Equipped with one tool box, two fire extinguisher, ground wire,90# King pin ,28ton manual outrigger, optional one water tank

4.Equipped with Aluminum Alloy manhole cover, Pneumatic Bottom Valve, Oil and gas recovery apparatus, Optical anti-overflow probe rod, API standard fast petrol unloading valve, etc one whole sets European standard system



















































































Multi-faceted Picture of CLW 3 axles European Standard Oil Tank Trailer 55000L :

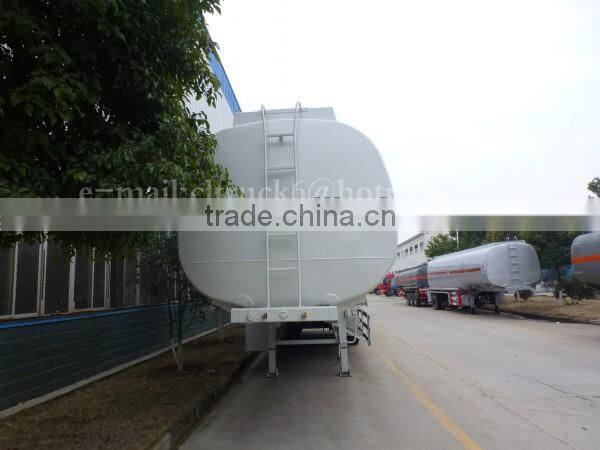

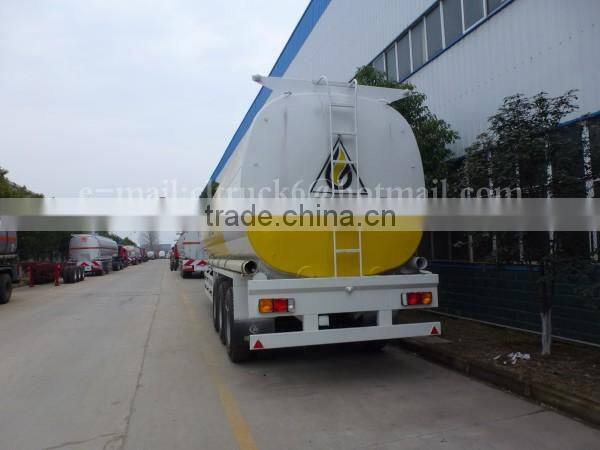

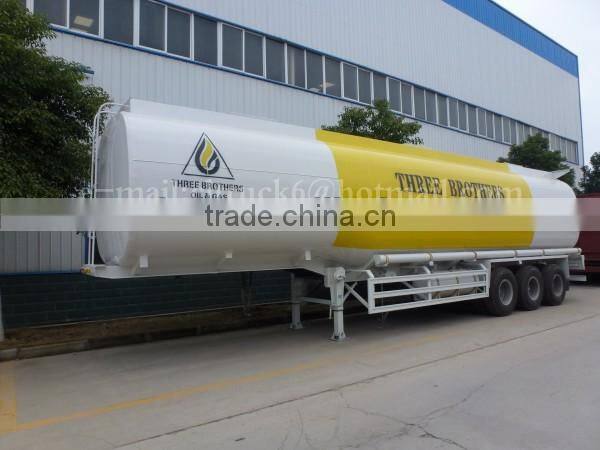

CLW 3 axles European Standard Oil Tank Trailer 55000L



CLW 3 axles European Standard Oil Tank Trailer 55000L



CLW 3 axles European Standard Oil Tank Trailer 55000L



CLW 3 axles European Standard Oil Tank Trailer 55000L



 CLW 3 axles European Standard Oil Tank Trailer 55000L



FUWA 3 axles:



CLW 3 axles European Standard Oil Tank Trailer 55000L



28ton outrigger:



CLW 3 axles European Standard Oil Tank Trailer 55000L

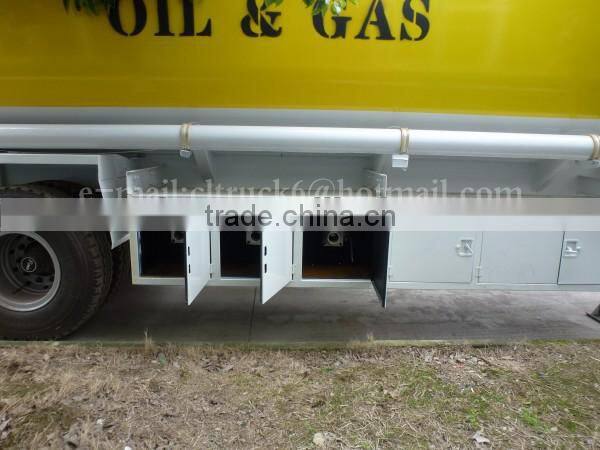

Discharge outlet  :



CLW 3 axles European Standard Oil Tank Trailer 55000L



CLW 3 axles European Standard Oil Tank Trailer 55000L





 Brief Introduction of Company:



       ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

          Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

         We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

            ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.



Our certificates;



CLW 3 axles European Standard Oil Tank Trailer 55000L



CLW 3 axles European Standard Oil Tank Trailer 55000L



Production Equipments:




CLW 3 axles European Standard Oil Tank Trailer 55000L



CLW 3 axles European Standard Oil Tank Trailer 55000L
