Home > Transportation > Trailer > Truck Trailer > CLW 3 Axles Aluminum Trailer 55000L for Oil Transportation

CLW 3 Axles Aluminum Trailer 55000L for Oil Transportation

Chengli Special Automobile Co., Ltd.

CLW 3 Axles Aluminum Trailer 55000L for Oil Transportation photo-1

US$ 44,600 - 46,900 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Aluminum / Alloy

Certification:

Other, 3c

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Aluminum / Alloy

Certification Other, 3c

Size 12990*2500*3900

OEM No. CLW9402

Max Payload 38500

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9402

CLW 3 Axles Aluminum Trailer 55000L for Oil Transportation

Aluminum Trailer is also called aluminum transport truck,tanker truck semitrailer,prssure vessel truck,etc, widely used in fuel, crude oil, xylene ,ethanol , acetic acid and other fuel and chemial liquid's transportion and storage. We can supply tanker ranged from 4000L to 45000L,Tanker Semitrailer ranged from 30000L to 6000L. Experience of ten years of manufacturing pressure vessel ensure reliable quality. Use this type of semitrailer can improve transport efficiency 30-50%, reduce cost 30% -40%, reduce fuel consumption 20%- 30%.

Technical Parameterof CLW 3 Axles Aluminum Trailer 55000L for Oil Transportation

Whole truck main technical parameter
Product Model	CLW Aluminum Trailer	*Overall Dimension(LWH)(mm)*	12990×2500×3900
Tank Volume(L)	55000	Tank Dimension(mm)	Front-end(3900×2500×1900) rear-end(8600×2500×2150)
Gross weight (kg)	Approx 40000	Approach/ departure angle (° )	-/16
Payload(kg)	Approx 38500	Front/ rear suspension(mm)	-/1870
Curb weight(kg)	7170	Leaf Spring number:	-/8/8/8, -/10/10/10
Axle number	3	Front/Rear axle load(Kg)	-/39000 (three-axis combined)
Wheelbase(mm)	5760+1310+1310	Rear tread(mm)	1840/1840/1840
Tire size	11.00R20 12PR	Number of Tire:	12
Warranty	12 months, from the date of supply
Remarks	1. Protective material: carbon steel, storage medium: gasoline
	2. Use the tractor equipped with speed limit device better
	3.Tank material: 6mm carbon steel, 90mm saddle

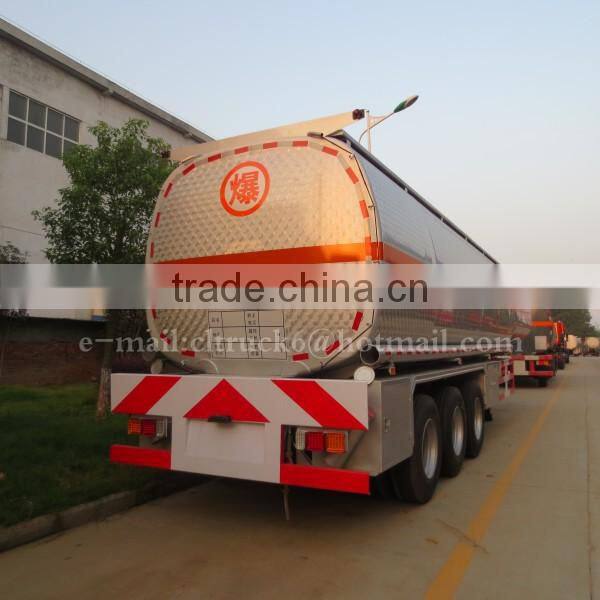

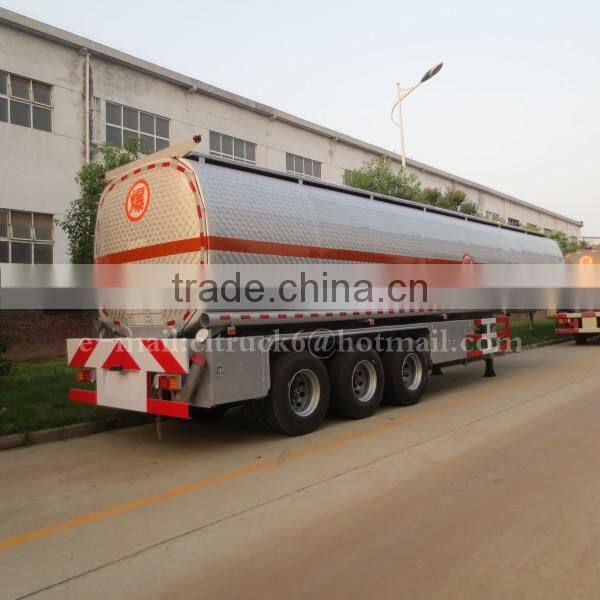

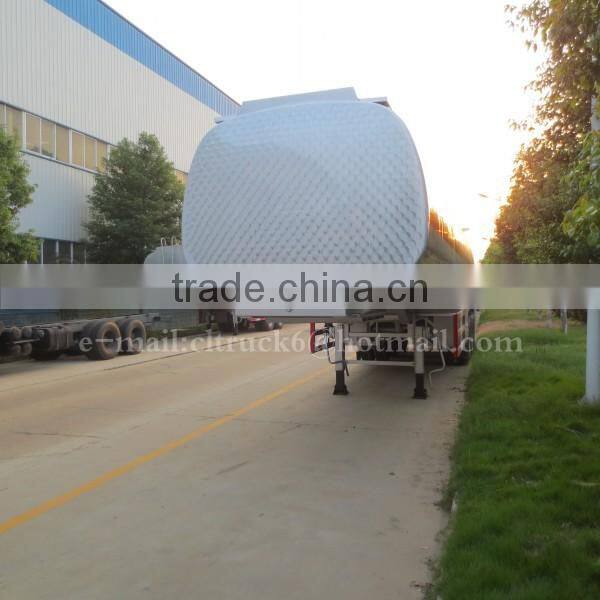

This Aluminum Trailer show as following:

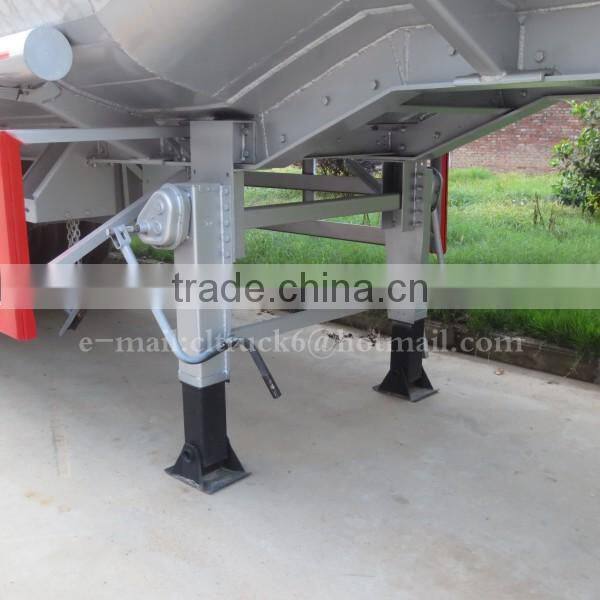

28ton FUWA Manual Outrigger of this Aluminum Trailer:

Spare tire carrier of this Aluminum Trailer:

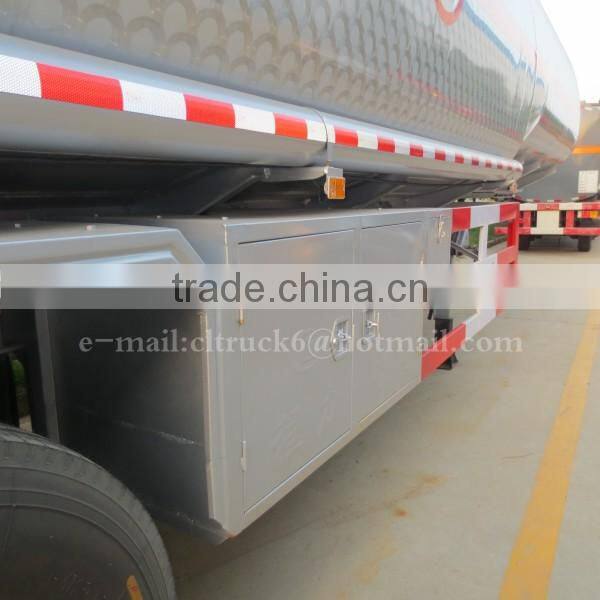

Tool box of this Aluminum Trailer:

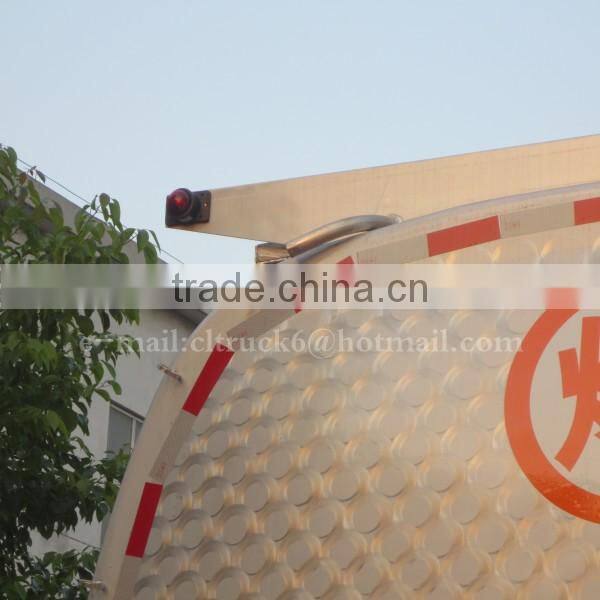

Rear signal light of this Aluminum Trailer:

Brief Introduction of Company:

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.

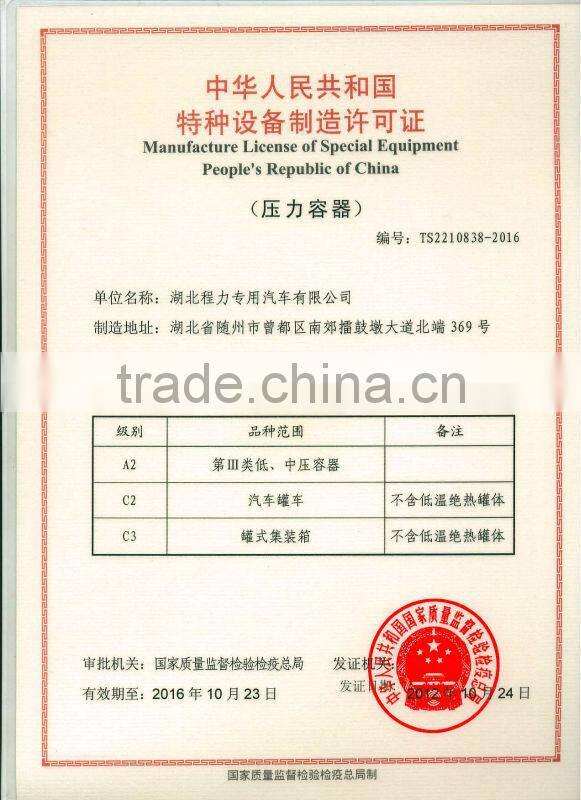

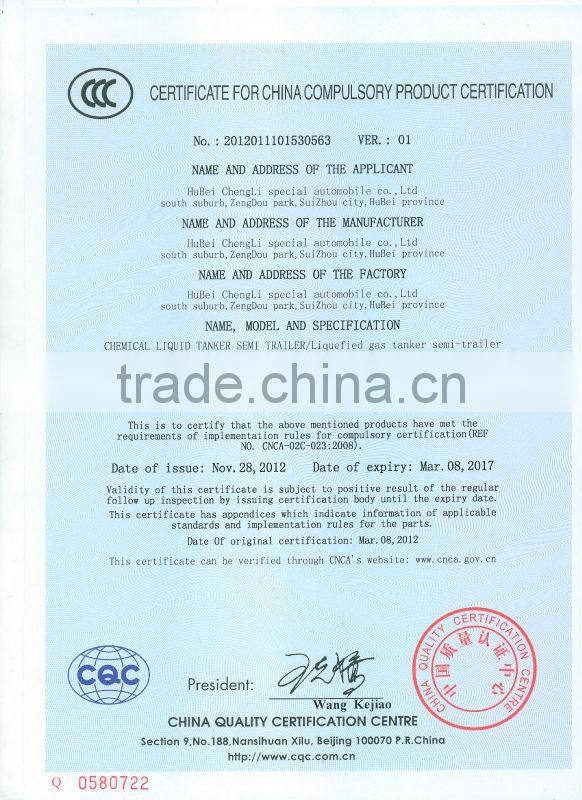

Our Certificates:

Parts of Trucks Exported:

Contact information:

If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
